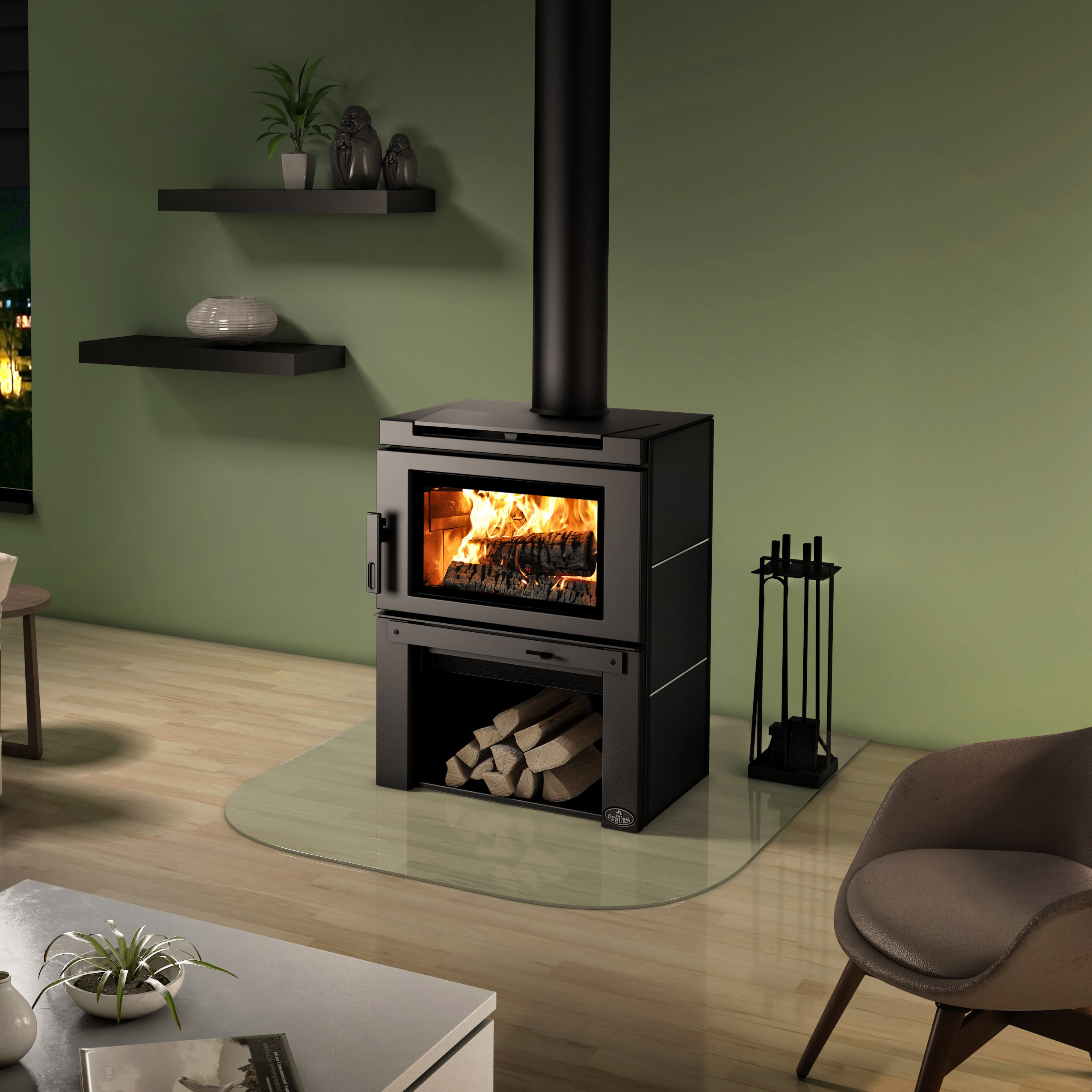

Osburn Matrix Large Wood Stove with Blower

Features

Specifications & Dimensions

Features

OSBURN Matrix Wood Stove OB02032 with a Blower

• Firebox – dimension (Depth) 16 1/2"

• Firebox – dimension (Width) 21"

• Firebox – dimension (Height) 11 7/8 "

• Maximum log length 20"

• Door opening dimension (Width) 17 1/2"

• Door opening – dimension (Height) 8 3/4"

• Door type single, glass with cast iron frame

• Glass surface – dimensions (Width X Height) 19 5/8" X 11 7/8"

• Steel thickness – body 3/16"

• Weight 506 lb (230 kg)

• Firebox volume (cu. ft.) 2.4

• Maximum heat output (dry cord wood) 75,000 BTU/h (22.0 kW)

• Glass type ceramic glass

• Overall dimension (Depth) 25"

• Overall dimension (Height) 36 7/8"

• Overall dimension (Width) 27 1/8"

• Centre line of flue outlet to the back 6 3/8"

• Centre line of flue outlet to the side 13 1/2"

• Canadian standard (emissions) CSA B415.1-10

• USA standard (emissions) EPA Method 28

• Canadian standard (safety) ULC S627

• USA standard (safety) UL 1482, UL 737

• Overall heat output rate (max.) 31,300 BTU/h (9.2 kW)

• Overall heat output rate (min. to max.) 12,500 BTU/h (3.7 kW)

• Average CO 89.4 g/h

• Fuel type Dry cordwood

• Type of chimney CAN/ULC S629, UL 103 HT (2100 °F)

• Minimum chimney height (feet) 12

• Log positioning: The Osburn Matrix is a east west loader. Load the wood from side to side.


• Recommended heating area (sq.ft.) 750 - 2,100

• Approved for a mobile home installation Yes

• Steel thickness – top 5/16"

• Optimum efficiency 77%

• Average particulate emissions rate 1.54 g/h

• Recommended chimney diameter 6"

• Baffle type high heat-resistant C-cast

• Maximum burn time 8 h

• Flue outlet diameter 6"

• Warranty Limited lifetime

• Tested and listed as per applicable standards by an accredited laboratory (CAN/USA)
