Description

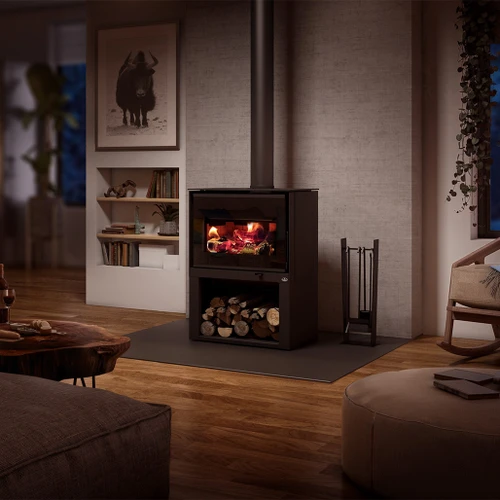

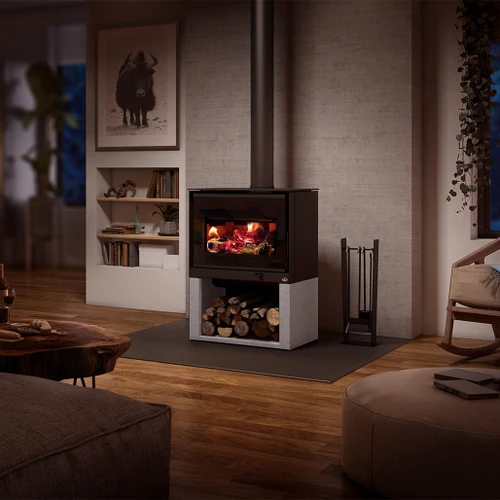

Are you ready to step off the beaten path? The Inspire features a timeless design with clean lines and balanced proportions, allowing Osburn to stand confidently alongside the finest European-style wood stoves. This contemporary look is available with a steel base, a soapstone base, or a minimalist base for those who prefer to install the stove directly on a non-combustible hearth. A modern stove bench (AC02354) has also been designed to perfectly complement the Osburn Inspire 2000 with the minimalist base (OA01243).
Equipped with a 2.3 cubic foot firebox and an outside air intake, the Inspire meets residential energy efficiency requirements while also being approved for installation in mobile homes.
Now equipped as standard with ROBAX® NightFlame ceramic glass, the Inspire offers a refined appearance whether the fire is burning or not. This innovative ceramic glass transforms its appearance when the stove is not in use, elegantly concealing the firebox while maintaining a clean, sophisticated look. Once the fire is lit, it becomes transparent, providing a clear and captivating view of the flames.
The Inspire meets EPA emissions standards with emissions as low as 2.3 g/h and complies with the most stringent North American certification requirements. A testament to quality, reliability, and durability, it once again reflects Osburn’s commitment to environmentally responsible wood heating without compromising performance.
FEATURES
Combustion technology
Non-catalytic
High-efficiency certified appliance
Yes, EPA 2020 approved
Maximum log length
20"
Log positioning
Loading over width
Chimney diameter
6"
Flue outlet diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet)
12'
Baffle type
C-Cast or equivalent
Approved for an alcove installation
Yes
Approved for a mobile home installation
Yes
Shipping Weight
439 lb (199 kg)
Door type
Single, glass with steel frame
Glass type
Ceramic glass
Glass surface – dimensions (Width X Height)
20 1/4" X 9 1/2"
Glass air-wash system
Yes
Overall dimension (Height)
35 5/8"
Overall dimension (Width)
27 7/8"
Overall dimension (Depth)
24 1/4"
Door opening – dimension (Height)
8 3/8"
Door opening - dimension (Width)
20"
Firebox – dimension (Height)
11 3/4"
Firebox – dimension (Width)
21"
Firebox – dimension (Depth)
16 3/4"
Firebox lined with refractory bricks for better heat distribution
Yes
Stainless-steel secondary-air system improving gas combustion
Yes
Model
Pedestal
Steel thickness – body
3/16"
Steel thickness – top
5/16"
Easy-to-access ash drawer
Yes
USA standard (emissions)
EPA Method 28
Canadian Standard (emissions)
CSA B415.1-10
USA standard (safety)
UL 1482, UL 737
Canadian standard (safety)
ULC S627
Tested and listed as per applicable standards
By an accredited laboratory (CAN/USA)
Warranty
Limited lifetime
-
Specifications
Fuel type :
Dry cordwood (16" recommended)
Recommended heating area-ft² :
500 - 2,100
Overall firebox volume-ft³ :
2.4
EPA loading volume-ft³ :
1.95
Maximum burn time :
8 h
Maximum heat output-dry cordwood :
75,000 BTU/h (22.0 kW)
Overall heat output rate < :
14,200 BTU/h (4.16 kW) to 44,500 BTU/h (13.04 kW)
Average overall efficiency (dry cordwood) :
72 % (HHV)
77 % (LHV)
Optimum overall efficiency :
79 %
Optimum heat transfer efficiency :
76 %
Average particulate emissions rate : (9)
2.3 g/h
Average CO : (10)
69 g/h
