Description

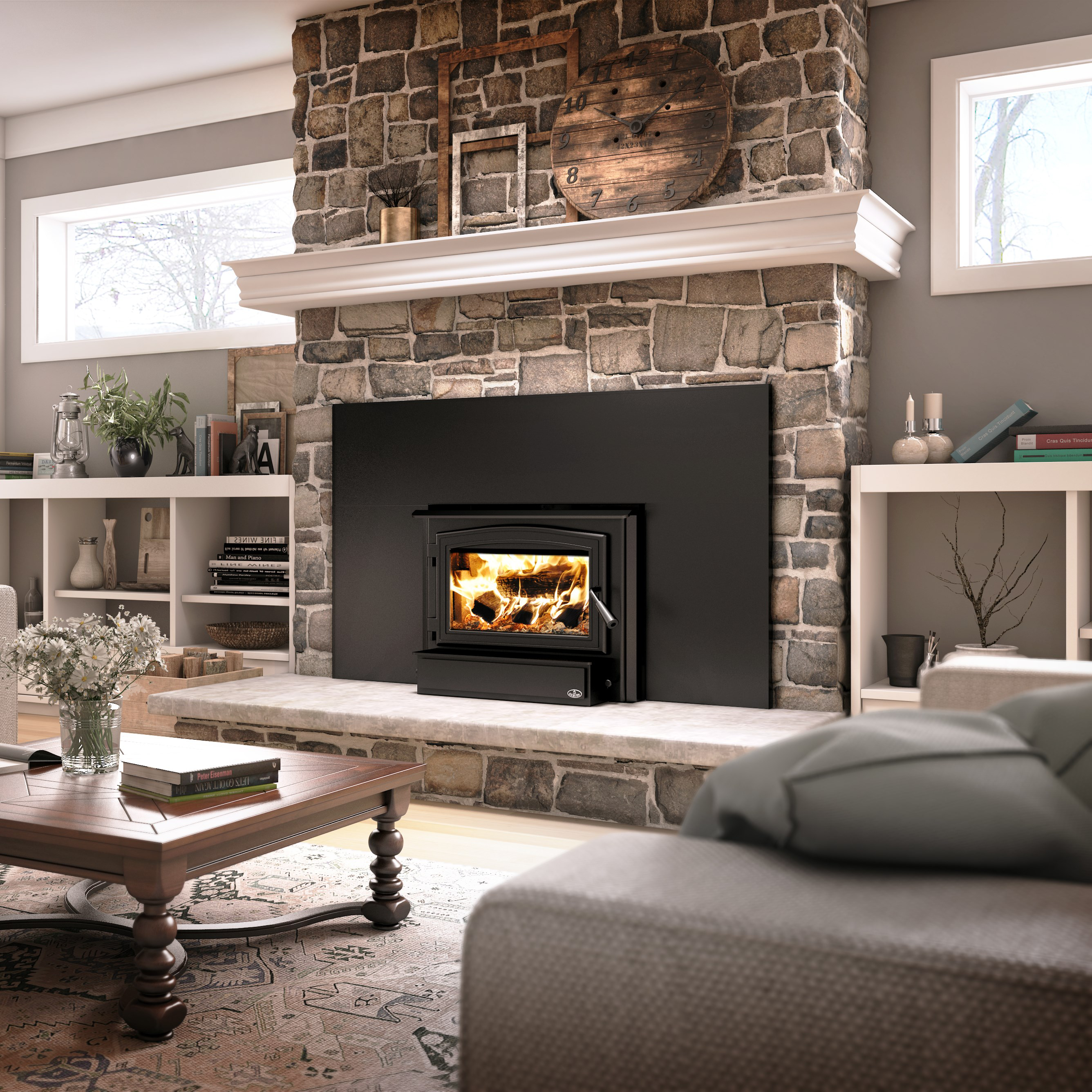

Like its larger counterpart Osburn 2000, the 1700 insert offers a revamped version of perfect size to provide ambiance and warmth. Give yourself a real haven of peace with an eco-friendly device!
Inside and out, this insert is engineered from high quality materials that put you at the center of a heating experience for many years: high-density bricks, stainless steel heat shield added to the C-Cast firestop, cast iron door and quiet blower for increased durability. Discover the different options to customize the look of your appliance, available in black or brushed nickel plated: door overlays, faceplates and faceplate trims
Learn more about Fireplace Inserts..
Want to explore more wood-burning fireplace inserts?
Check out our premium Wood Burning Fireplace Insert collection, or take a look at our entire Fireplace Inserts selection to find what suits your style.
Have questions about the Osburn 1700 Medium Wood Insert? Contact us at sales@embersliving.com or call 303-800-5659. We're always happy to assist!
Combustion technology
Non-catalytic
High-efficiency certified appliance
Yes, EPA 2020 approved
Maximum log length
18"
Log positioning
Over width
Chimney diameter
6"
Flue outlet diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet)
15'
Baffle type
C-Cast
Approved for a mobile home installation
No
Shipping Weight
361 lb (164 kg)
Door type
Single, glass with cast iron frame
Glass type
Ceramic glass
Glass surface – dimensions (Width X Height)
15 3/4" x 9 3/8"
Glass air-wash system
Yes
Premium quality blower included (CFM)
144
Overall dimension (Height)
21 1/4"
Overall dimension (Width)
27 1/8"
Overall dimension (Depth)
22 3/8"
Door opening – dimension (Height)
8 3/4"
Door opening - dimension (Width)
17 1/4''
Firebox – dimension (Height)
11 7/8"
Firebox – dimension (Width)
19 5/8"
Firebox – dimension (Depth)
13 1/2"
Firebox lined with refractory bricks for better heat distribution
Yes
Stainless-steel secondary-air system improving gas combustion
Yes
Adjustable threaded legs
Yes
Steel thickness – body
3/16"
Steel thickness – top
5/16"
Fireplace opening – minimum (Height)
21 1/2"
Fireplace opening – minimum (Width)
27 1/2"
Fireplace opening – minimum (Depth)
12 7/8"
USA standard (emissions)
EPA
Canadian Standard (emissions)
CSA B415.1-10
USA standard (safety)
UL 1482, UL 737
Canadian standard (safety)
ULC S628
Tested and listed as per applicable standards
By an accredited laboratory (CAN/USA)
Warranty
Limited lifetime
-
