Description
The Osburn 1900 must be installed in a masonry fireplace.

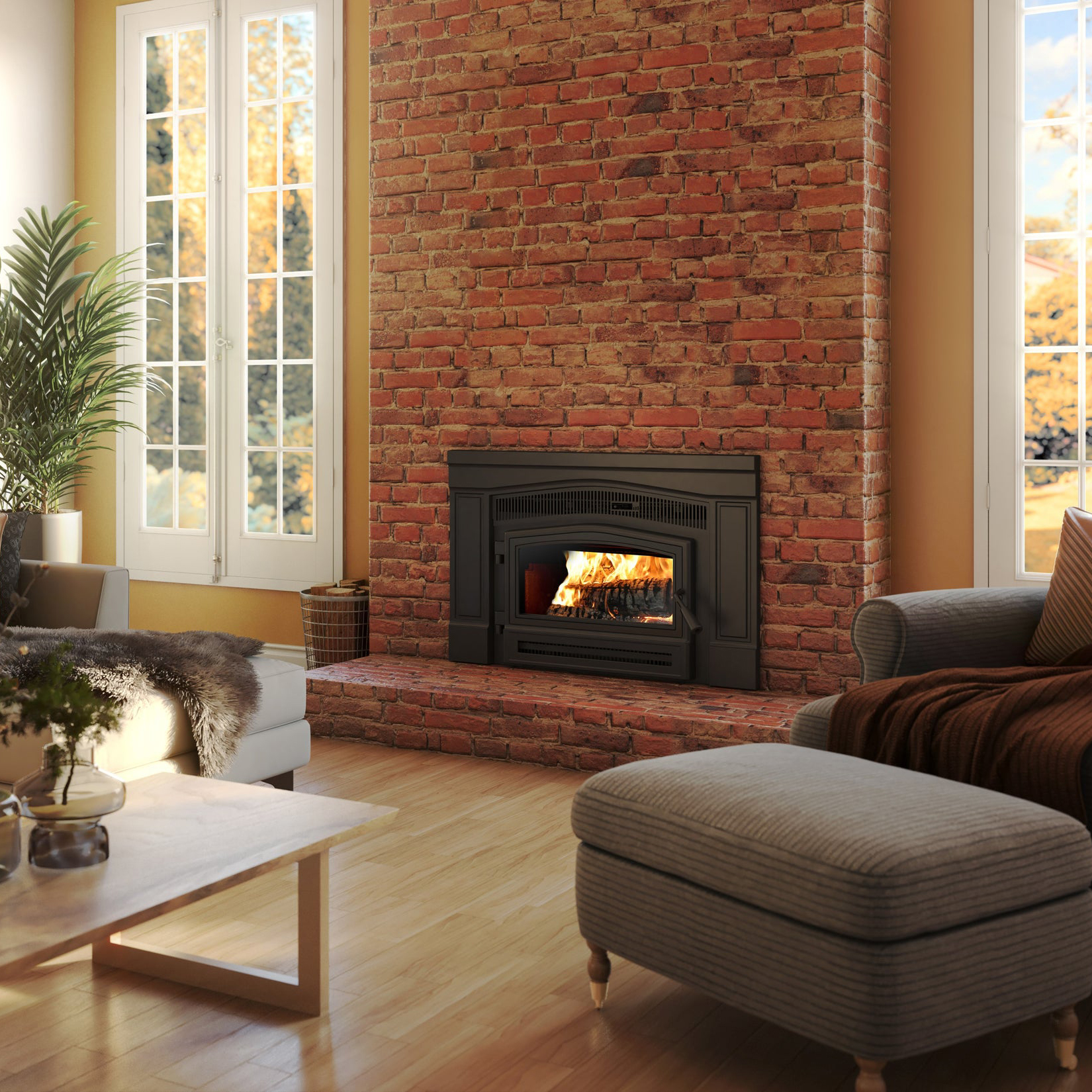

Treat your family to incomparable comfort with the Matrix 1900 wood-burning insert. Its magnificent cast-iron faceplate is adorned with a patterned upper louver and columns that frame its large door. Osburn Fireplace Insert discreet black wooden handle, air control with removable handle, as well as flush mount blower disappear to leave room for the delicate details of its faceplate. Its large glass surface highlights a panoramic view of the flames to fully enjoy your moments near the fire.
The Matrix 1900 is a compact unit that has tapered top and sides for easy installation in smaller hearths. The deep bottom of its combustion chamber allows ash to accumulate and reduces the frequency of cleaning.
FEATURES
Combustion technology
Non-catalytic
High-efficiency certified appliance
Yes, EPA 2020 approved
Maximum log length
17"
Log positioning
Loading over width
Chimney diameter
6"
Flue outlet diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height (feet)
12'
Baffle type
C-Cast or equivalent
Approved for a mobile home installation
No
Shipping Weight
332 lb (151 kg)
Door type
Single, glass with cast iron frame
Glass type
Ceramic glass
Glass surface – dimensions (Width X Height)
18" X 8 1/8"
Glass air-wash system
Yes
Premium quality blower included (CFM)
90
Overall dimension (Height)
23 7/8"
Overall dimension (Width)
36"
Overall dimension (Depth)
21"
Door opening – dimension (Height)
7 7/8"
Door opening - dimension (Width)
18 1/4"
Firebox – dimension (Height)
8 7/8"
Firebox – dimension (Width)
16 3/4"
Firebox – dimension (Depth)
12 3/8"
Moulded refractory bricks
Yes
Stainless-steel secondary-air system improving gas combustion
Yes
Steel thickness – body
3/16"
Steel thickness – top
3/16"
Fireplace opening – minimum (Height)
19"
Fireplace opening – minimum (Width)
25"
Fireplace opening – minimum (Depth)
15 1/2"
USA standard (emissions)
EPA
Canadian Standard (emissions)
CSA B415.1-10
USA standard (safety)
UL 1482, UL 737
Canadian standard (safety)
ULC S628
Tested and listed as per applicable standards
By an accredited laboratory (CAN/USA)
Warranty
Limited lifetime
-
Specifications
Fuel type :
Dry cordwood (16" recommended)
Recommended heating area-ft² :
250 - 1,200
Overall firebox volume-ft³ :
1.1
EPA loading volume-ft³ :
1.03
Maximum burn time :
7 h
Maximum heat output-dry cordwood :
45,000 BTU/h (13.19 kW)
Overall heat output rate < :
8,471 BTU/h (2.48 kW) to 31,700 BTU/h (9.29 kW)
Average overall efficiency (dry cordwood) :
75 % (HHV)
80 % (LHV)
Optimum overall efficiency :
82 %
Optimum heat transfer efficiency :
78 %
Average particulate emissions rate :
1.5 g/h
Average CO :
34 g/h
