Description

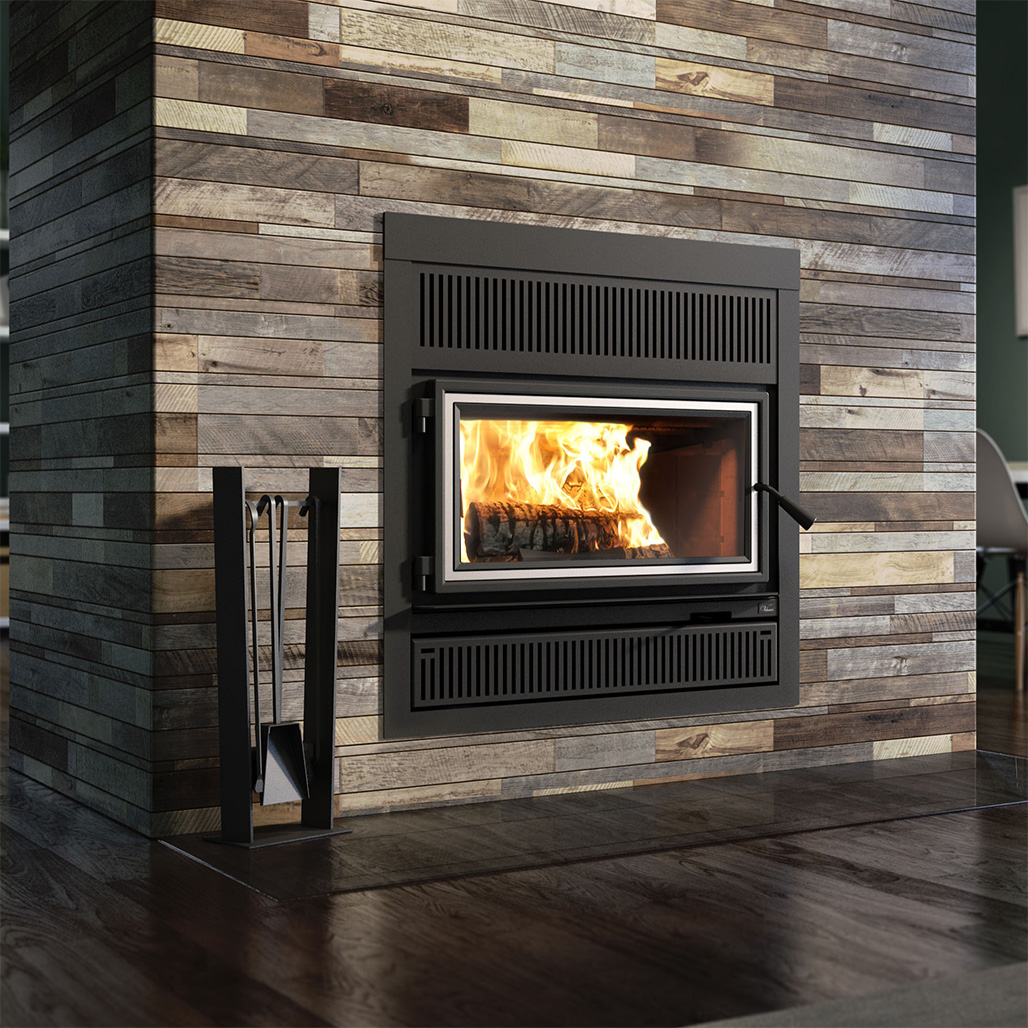

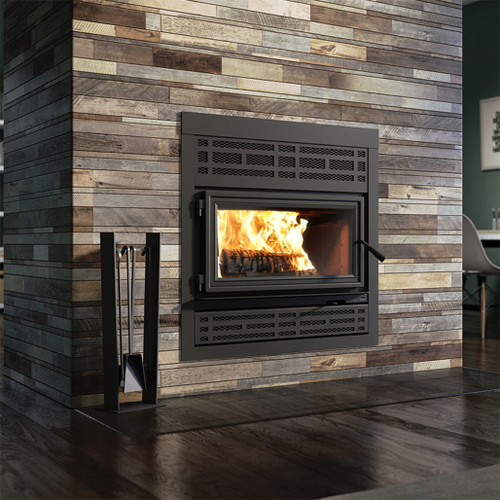

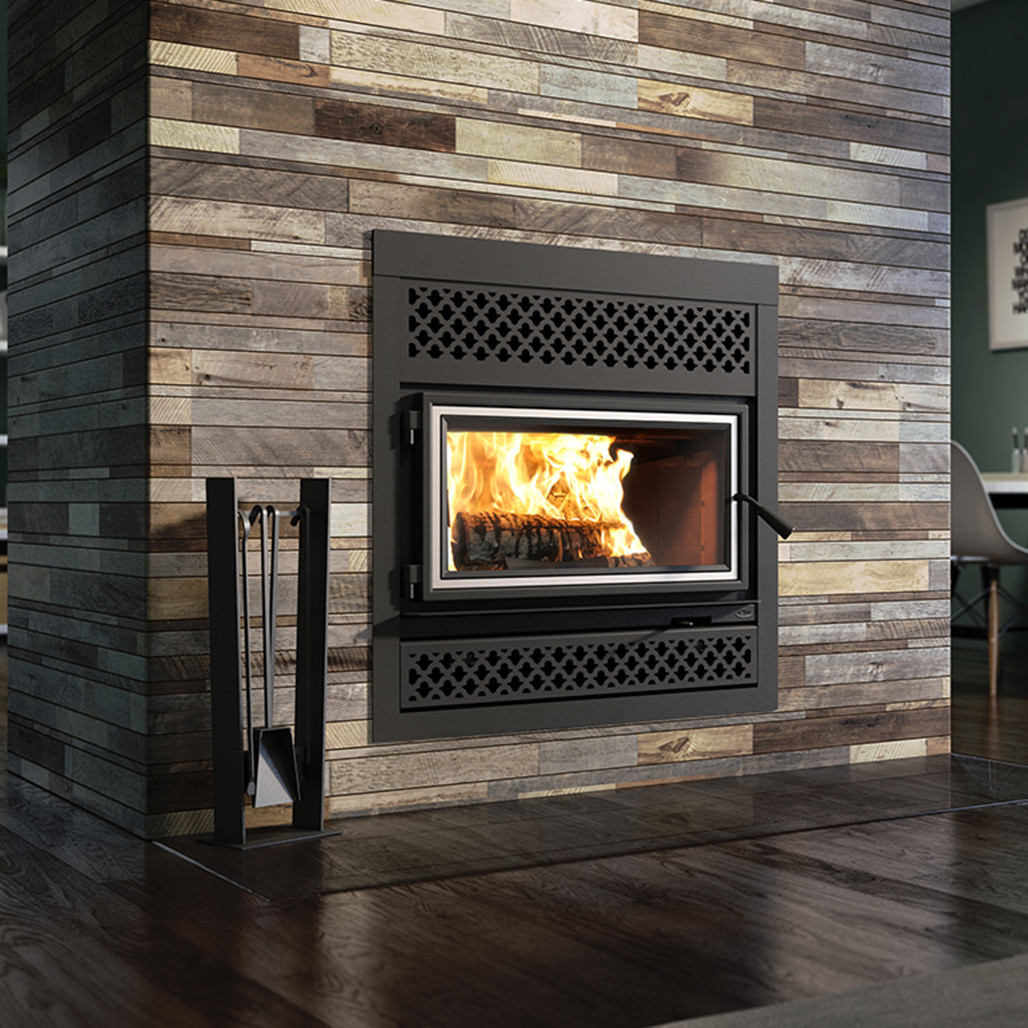

FP10 LAFAYETTE IIS - WOOD FIREPLACE
Like the great French general, the Valcourt team has been able to use its tactical skills to upgrade this non-catalytic unit, so that it perfectly combines the new heating technology with all its elegance.
Customize your fireplace: five faceplate louvers as well as black or brushed nickel door overlays are available to enhance your decor. In addition to offering a distinctive look, the appliance follows the most restrictive EPA regulations, making it the fireplace of choice for those who want to use wood as a renewable and clean source of heat.
Features
Combustion technology Non-catalytic High-efficiency certified appliance Yes, EPA 2020 approved Maximum log length 20" Log positioning Over width Chimney diameter 6" Flue outlet diameter 6" Type of chimney CAN/ULC S629, UL 103 HT (2100 °F) Minimum chimney height (feet) 15' Baffle type C-Cast Shipping Weight 495 lb (225 kg) Door type Single, glass with steel frame Glass type Ceramic glass Glass surface – dimensions (Width X Height) 23 7/8" X 10 1/2" Glass air-wash system Yes Premium quality blower included (CFM) 176 Overall dimension (Height) 40 5/8" Overall dimension (Width) 36 3/4" Overall dimension (Depth) 28 5/8" Door opening – dimension (Height) 10 1/2" Door opening - dimension (Width) 25 3/8" Firebox – dimension (Height) 12 1/8" Firebox – dimension (Width) 20 3/8" Firebox – dimension (Depth) 13" Moulded refractory bricks Yes Stainless-steel secondary-air system improving gas combustion Yes USA standard (emissions) EPA Canadian Standard (emissions) CSA B415.1-10 USA standard (safety) UL 127 Canadian standard (safety) ULC-S610 Tested and listed as per applicable standards By an accredited laboratory (CAN/USA) Warranty Limited lifetime -
Specifications
Fuel type :
Dry cordwood
Recommended heating area-ft² :
750 - 2,200
Overall firebox volume :
2.5
EPA loading volume-ft³ :
1.69
Maximum burn time :
8 h
Maximum heat output (dry cordwood) :
80,000 BTU/h (23.4 kW)
Overall heat output rate < :
14,200 BTU/h (4.16 kW) to 48,200 BTU/h (14.13 kW)
Average overall efficiency (EPA cribs/Douglas fir) :
N.A. (HHV)
N.A. (LHV)
Average overall efficiency (dry cordwood) :
68% (HHV)
73% (LHV)
Optimum efficiency :
80,000 BTU
Average particulate emissions rate :
1.14 g/h
Average CO :
53 g/h
- Downloads
- Videos
FP10 LAFAYETTE IIS - WOOD FIREPLACE
Like the great French general, the Valcourt team has been able to use its tactical skills to upgrade this non-catalytic unit, so that it perfectly combines the new heating technology with all its elegance.
Customize your fireplace: five faceplate louvers as well as black or brushed nickel door overlays are available to enhance your decor. In addition to offering a distinctive look, the appliance follows the most restrictive EPA regulations, making it the fireplace of choice for those who want to use wood as a renewable and clean source of heat.
Features
| Combustion technology | Non-catalytic |
| High-efficiency certified appliance | Yes, EPA 2020 approved |
| Maximum log length | 20" |
| Log positioning | Over width |
| Chimney diameter | 6" |
| Flue outlet diameter | 6" |
| Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
| Minimum chimney height (feet) | 15' |
| Baffle type | C-Cast |
| Shipping Weight | 495 lb (225 kg) |
| Door type | Single, glass with steel frame |
| Glass type | Ceramic glass |
| Glass surface – dimensions (Width X Height) | 23 7/8" X 10 1/2" |
| Glass air-wash system | Yes |
| Premium quality blower included (CFM) | 176 |
| Overall dimension (Height) | 40 5/8" |
| Overall dimension (Width) | 36 3/4" |
| Overall dimension (Depth) | 28 5/8" |
| Door opening – dimension (Height) | 10 1/2" |
| Door opening - dimension (Width) | 25 3/8" |
| Firebox – dimension (Height) | 12 1/8" |
| Firebox – dimension (Width) | 20 3/8" |
| Firebox – dimension (Depth) | 13" |
| Moulded refractory bricks | Yes |
| Stainless-steel secondary-air system improving gas combustion | Yes |
| USA standard (emissions) | EPA |
| Canadian Standard (emissions) | CSA B415.1-10 |
| USA standard (safety) | UL 127 |
| Canadian standard (safety) | ULC-S610 |
| Tested and listed as per applicable standards | By an accredited laboratory (CAN/USA) |
| Warranty | Limited lifetime |
|
Fuel type : |
Dry cordwood |
|
|
Recommended heating area-ft² : |
750 - 2,200 |
|
|
Overall firebox volume : |
2.5 |
|
|
EPA loading volume-ft³ : |
1.69 |
|
|
Maximum burn time : |
8 h |
|
|
Maximum heat output (dry cordwood) : |
80,000 BTU/h (23.4 kW) |
|
|
Overall heat output rate < : |
14,200 BTU/h (4.16 kW) to 48,200 BTU/h (14.13 kW) |
|
|
Average overall efficiency (EPA cribs/Douglas fir) : |
N.A. (HHV) |
N.A. (LHV) |
|
Average overall efficiency (dry cordwood) : |
68% (HHV) |
73% (LHV) |
|
Optimum efficiency : |
80,000 BTU |
|
|
Average particulate emissions rate : |
1.14 g/h |
|
|
Average CO : |
53 g/h |
|
