Description
With the same sleek, modern style and vastly improved performance, the Matrix wood-burning stove will certainly bring a European touch to your home. Let the Matrix Osburn Wood Stoves provide you with the warmth, safety, and coziness needed during these cold winters

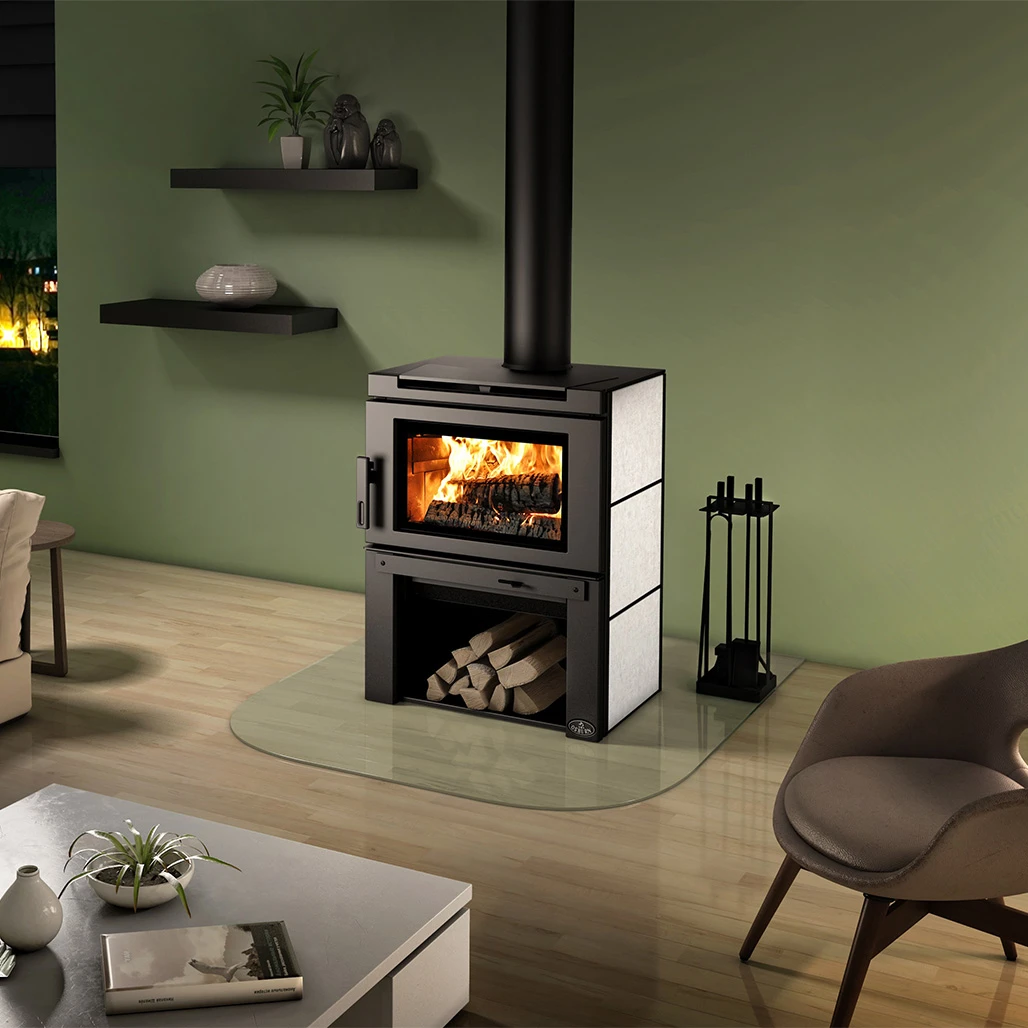

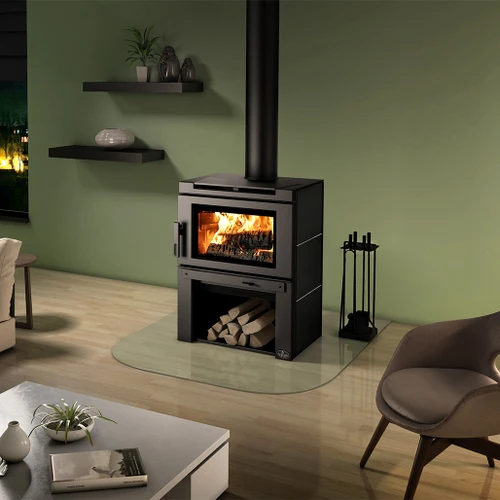

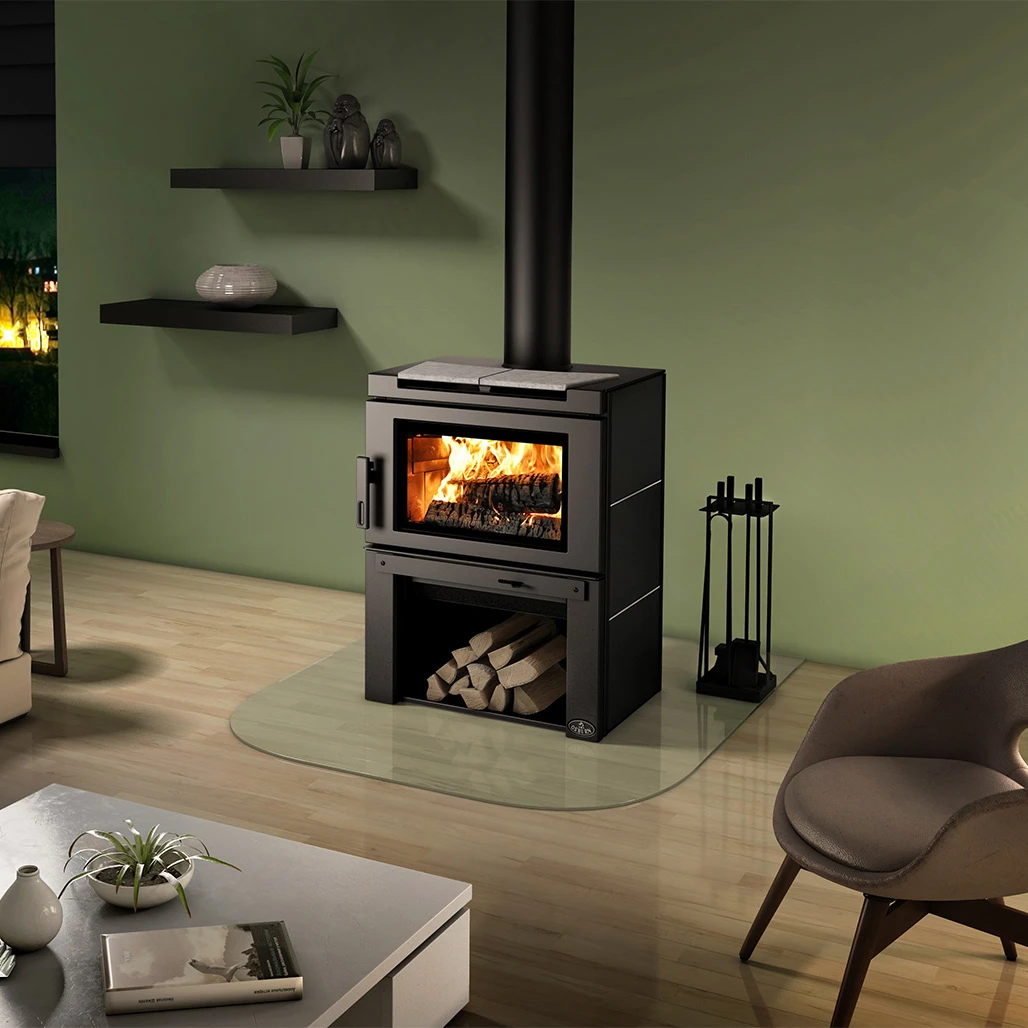

You can now personalize your device with the steel or soapstone top and side panel options from a local Quebec City mine, reminding us of the richness of our natural resources. Logs will easily fit under the large firebox, making the Matrix a practical and stylish heater. The Matrix is equipped with a 130 CFM fan to ensure optimal heat distribution. Enjoy the comfort of winter more than ever before!
FEATURES
Combustion technology
Non-catalytic
High-efficiency certified appliance
Yes, EPA 2020 approved
Maximum log length
20"
Log positioning
Loading over width
Chimney diameter
6"
Flue outlet diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet)
12'
Baffle type
C-Cast or equivalent
Approved for an alcove installation
Yes
Approved for a mobile home installation
Yes
Shipping Weight
506 lb (230 kg)
Door type
Single, glass with cast iron frame
Glass type
Ceramic glass
Glass surface – dimensions (Width X Height)
19 5/8" x 11 7/8"
Glass air-wash system
Yes
Premium quality blower included (CFM)
130
Overall dimension (Height)
36 7/8"
Overall dimension (Width)
27 1/8"
Overall dimension (Depth)
25"
Door opening – dimension (Height)
8 3/4"
Door opening - dimension (Width)
17 1/2"
Firebox – dimension (Height)
11 7/8"
Firebox – dimension (Width)
21"
Firebox – dimension (Depth)
16 1/2"
Firebox lined with refractory bricks for better heat distribution
Yes
Stainless-steel secondary-air system improving gas combustion
Yes
Model
Pedestal
Steel thickness – body
3/16"
Steel thickness – top
5/16"
USA standard (emissions)
EPA
Canadian Standard (emissions)
CSA B415.1-10
USA standard (safety)
UL 1482, UL 737
Canadian standard (safety)
ULC-S627
Tested and listed as per applicable standards
By an accredited laboratory (CAN/USA)
Warranty
Limited lifetime
-
Specifications
Fuel type :
Dry cordwood (16" recommended)
Recommended heating area-ft² :
500 - 2,100
Overall firebox volume-ft³ :
2.4
EPA loading volume-ft³ :
1.95
Maximum burn time :
8 h
Maximum heat output-dry cordwood :
75,000 BTU/h (22.0 kW)
Overall heat output rate < :
14,200 BTU/h (4.16 kW) to 44,500 BTU/h (13.04 kW)
Average overall efficiency (dry cordwood) :
72 % (HHV)
77 % (LHV)
Optimum overall efficiency :
79 %
Optimum heat transfer efficiency :
76 %
Average particulate emissions rate :
2.3 g/h
Average CO :
69 g/h
