Description

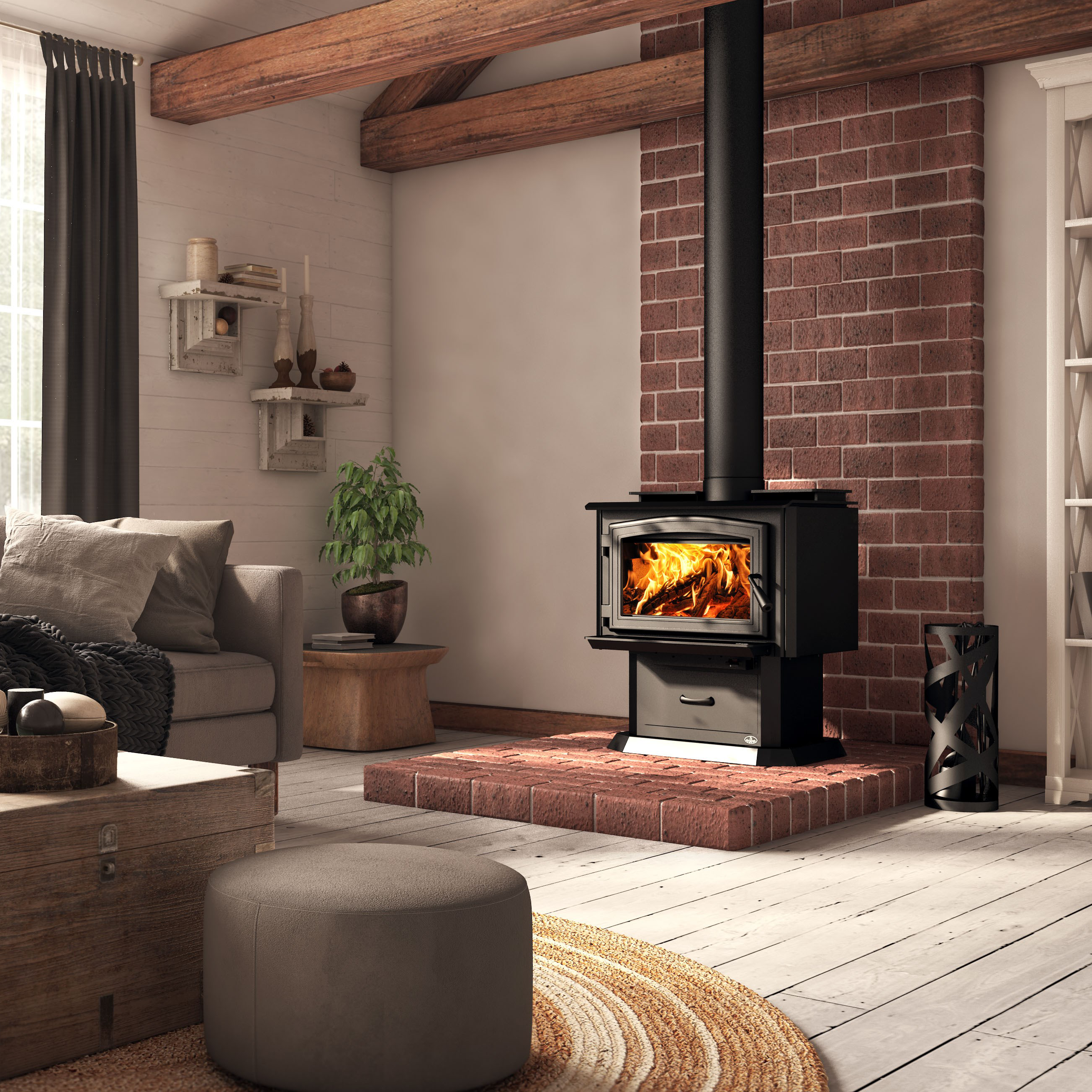

Designed to meet the needs of smaller spaces, the Osburn 1700 combines robustness and elegance to allow you to enjoy your heating experience with confidence. This unit is equipped with high-density bricks, a cast iron door, a built-in ash pan, a top heat deflector that redirects heat to the front of the unit, and side panels to reduce its clearances.
Choose your favorite version by customizing the unit to suit your style: refined door overlays, new leg designs, glass ash lip; significant innovations for the most seasoned experts. Exceeding air quality regulations with emissions as low as 1.26 g/h, the Osburn 1700's efficiency will save you time and money.
*** ASH PAN INCLUDED ON EACH BASE KIT
-
Specifications
APPLIANCE PERFORMANCE
Fuel type :
Dry cordwood
Recommended heating area (sq.ft.) :
500 - 1,800
Overall firebox volume :
1.9
Maximum burn time :
6 h
Maximum heat output (dry cordwood) :
65,000 BTU/h (19 kW)
Overall heat output rate (min. to max.) :
15,650 BTU/h (4.6 kW) to 23,300 BTU/h (6.83 kW)
Average overall efficiency (EPA cribs / Douglas fir):
N.A. (HHV)
N.A. (LHV)
Average overall efficiency (dry cordwood) :
70 % (HHV)
75 % (LHV)
Optimum efficiency :
78 %
Average particulate emissions rate :
1.26 g/h
Average CO :
58 g/h
GENERAL FEATURES
Combustion technology
Non-catalytic
High-efficiency EPA certified appliance
Yes, EPA 2020 approved
Maximum log length
18"
Log positioning
Over width
Chimney diameter
6"
Flue outlet diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet)
15'
Baffle type
C-Cast
Approved for an alcove installation
Yes
Approved for a mobile home installation
Yes
Shipping Weight
331 lb (150 kg)
Door type
Single, glass with cast iron frame
Glass type
Ceramic glass
Glass surface – dimensions (Width X Height)
15 3/4" x 9 3/8"
Glass air-wash system
Yes
Overall dimension (Height)
30 3/8"
Overall dimension (Width)
24 7/8"
Overall dimension (Depth)
23 1/4"
Door opening – dimension (Height)
8 3/4"
Door opening - dimension (Width)
17 1/4"
Firebox – dimension (Height)
11 7/8"
Firebox – dimension (Width)
19 5/8"
Firebox – dimension (Depth)
13 1/2"
Firebox lined with refractory bricks for better heat distribution
Yes
Stainless-steel secondary-air system improving gas combustion
Yes
Steel thickness – body
3/16"
Steel thickness – top
5/16"
USA standard (emissions)
EPA
Canadian Standard (emissions)
CSA B415.1-10
USA standard (safety)
UL 1482, UL 737
Canadian standard (safety)
ULC S627
Tested and listed as per applicable standards
By an accredited laboratory (CAN/USA)
Warranty
Limited lifetime
Minimum clearances to combustibles*
(Data expressed in inches. 1 inch = 25.4 mm)
Canada
United-States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance – back wall
14 1/2"
6"
13"
6"
Clearance – placed in a corner
12"
12"
12"
12"
Clearance – side wall
10"
10"
10"
10"
Clearance – top (measured from the platform on which the appliance is installed)**
84"
84"
84"
84"
Clearance – minimum floor protection in front of the appliance
18"
16"
* The information given on the certification label affixed to the appliance always overrides the information published in any other media (owner's manual, catalogues, flyers, magazines and/or web sites).
** Some appliances have been tested with a low ceiling. Before setting up your unit, refer to the installation manual.
