Specifications

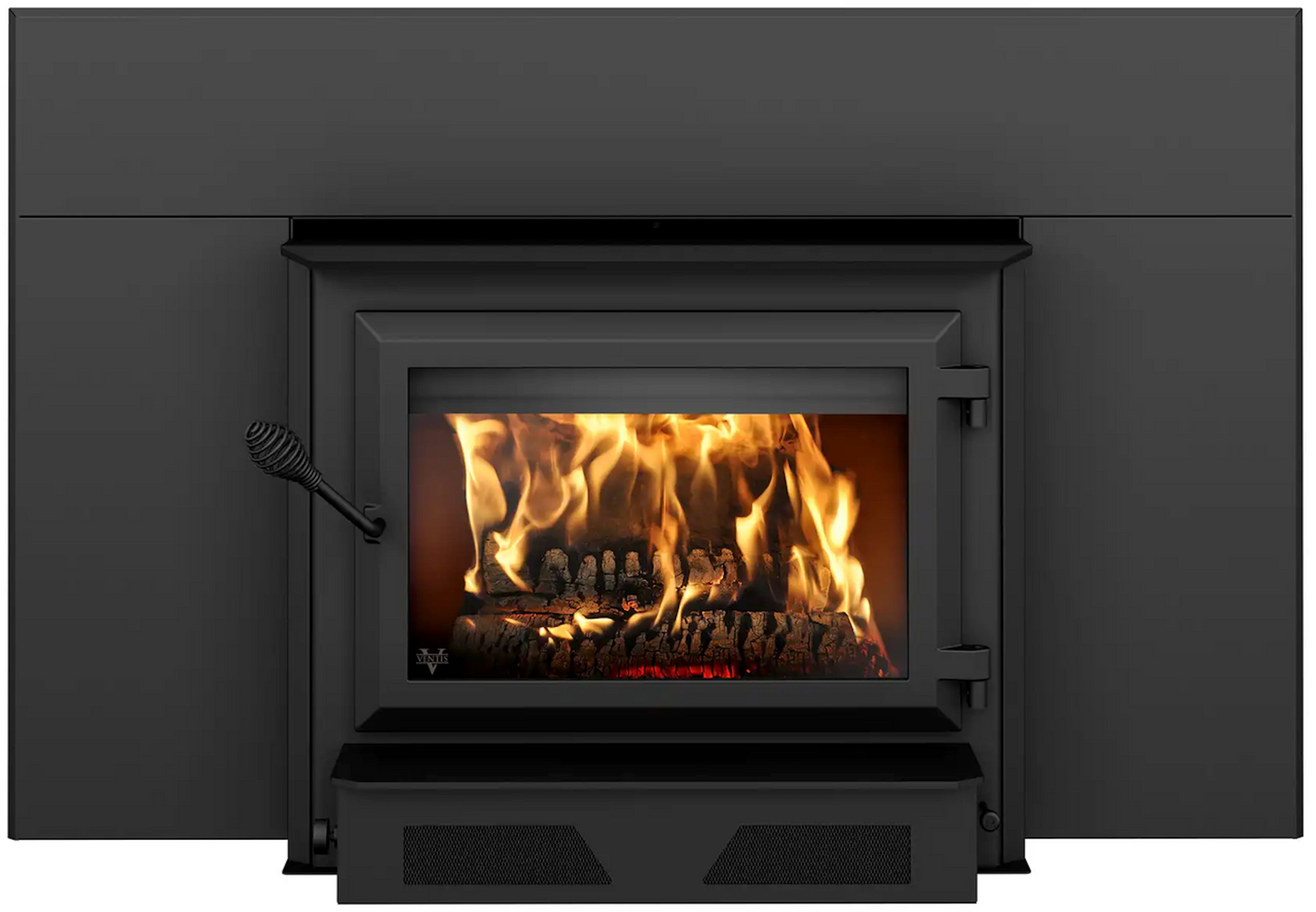

Ventis HEI350 Wood Insert with Blower
Features:
-
Extra-large size wood insert
-
EPA certified at only 1.6 g/h
-
Solidity and manufacturing quality ▪C-Cast heat shield added to the firestop ▪Non-catalytic combustion technology
-
Installation authorized on the Island of Montreal
-
Cast iron door
-
144 CFM blower
-
Required option: regular faceplate (VBA1557) or large faceplate (VBA1558)
Appliance Performance
Fuel type | Dry cordwood (16" recommended) |
---|---|
Recommended heating area |
1,000 - 2,700 ft² |
Overall firebox volume | 3.5 ft³ |
EPA loading volume | 2.88 ft³ |
Maximum burn time |
10 h |
Maximum heat output-dry cordwood |
110,000 BTU/h |
Minimum overall heat output rate |
17,200 BTU/h (5.0 kW) |
Maximum overall heat output rate |
57,800 BTU/h (16.9 kW) |
Average overall efficiency-dry cordwood (HHV) | 71 % |
Average overall efficiency-dry cordwood (LHV) |
76 % |
Optimum efficiency |
77 % |
Optimum heat transfer efficiency |
75 % |
Average particulate emission rate |
1.6 g/h |
Average CO |
73 g/h |
General Features
Premium quality blower included (CFM) |
144 CFM included |
---|---|
Certified according to applicable standards |
CAN/USA accredited laboratory |
Combustion technology |
Non-catalytic |
Stainless-steel secondary-air system |
Yes |
Flue outlet diameter |
6" |
Recommended chimney diameter |
6" |
Type of chimney |
CAN/ULC S629, UL 103 HT (2100 °F) |
Minimum chimney height |
12" |
Overall dimension (Width) |
30 1/2" |
Overall dimension (Height) |
24 7/8" |
Overall dimension (Depth) |
29" |
Door type |
Single, glass with cast iron frame |
Door opening size (Width) |
19" |
Door opening size (Height) |
9 1/4" |
Glass type |
Ceramic glass |
Glass surface - W x H |
18 3/8" x 11 1/2" |
Steel thickness-body |
3/16" |
Steel thickness-top |
5/16" |
Firebox size (Width) |
22 7/8" |
Firebox size (Height) |
12 7/8" |
Firebox size (Depth) |
20 1/8" |
Maximum log length |
22" |
Log positioning |
Loading over width and over depth |
Firebox lined with refractory bricks |
Yes |
Baffle type |
High quality vermiculite |
Minimum fireplace opening (Width) |
31" |
Minimum fireplace opening (Height) |
26 1/4" |
Minimum fireplace opening (Depth) |
18 3/8" |
High-efficiency certified appliance |
Yes, EPA 2020 approved |
Canadian Standard (emissions) |
CSA B415.1-10 |
USA Standard (emissions) |
EPA |
Canadian Standard (safety) |
ULC S628 |
USA Standard (safety) |
UL 1482, UL 737 |
Warranty |
Limited lifetime |
Shipping weight |
lb (kg) |
