Description
The DRT4000 Series gas-burning, direct-vent Superior Fireplace offers three multi-view configurations that serve as a primary focal point for multiple rooms. With an exceptional glass viewing area and the intense flame presentation of a powerful pan burner, the DRT4000 Multi-View Series creates a beautiful, natural-looking fire that enhances the comfort and elegance of several rooms.
The DRT4000 Series offers three multi-view configurations that serve as a primary focal point for multiple rooms.... Click below to find other models
Features
-
Listed to ANSI Z21.88 Gas Fireplace Heater
-

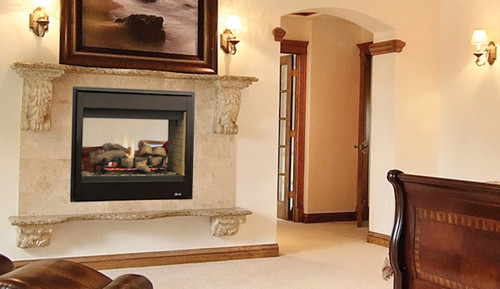

Available in 40” clean-faced corner, peninsula & see through models
-
Combo top/rear flue configuration
-
Top flue configuration
-
Millivolt or energy saving electronic ignition
-
Pre-wired for wall switch
-
Outstanding heating efficiency for increased comfort and lower operating costs
-

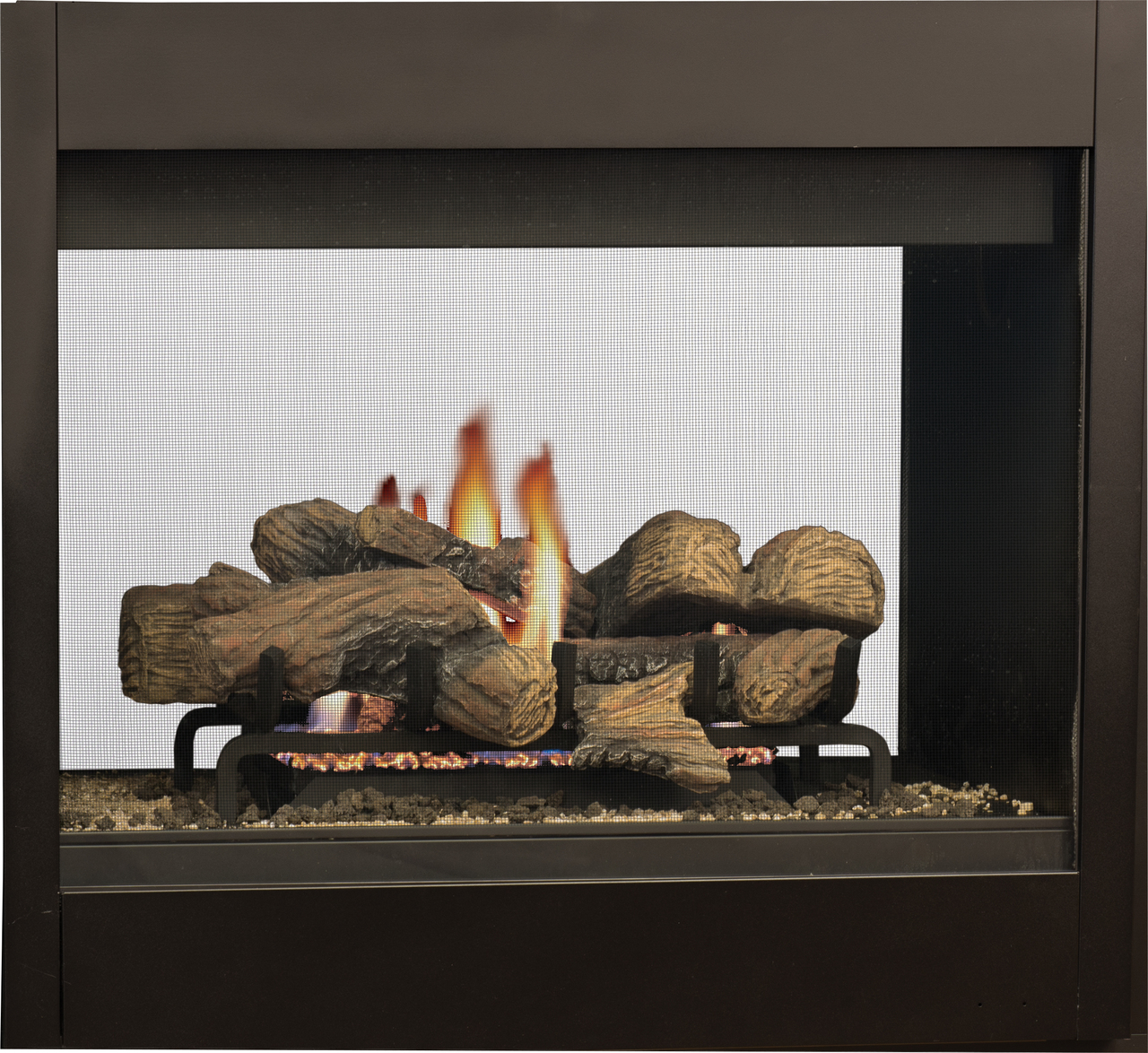

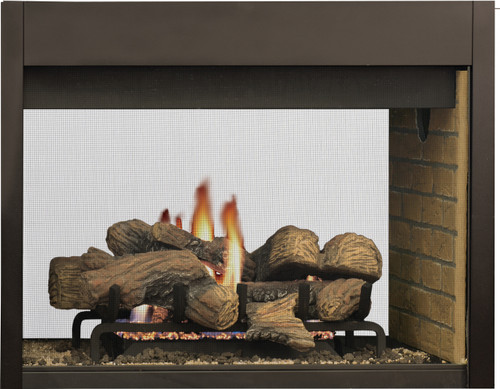

Detailed ceramic fiber “aged oak” log set with 1/2" heavy-duty grate
-
Black painted interior (optional ceramic fiber liner available)
-
Durable textured powder coat finish
-
Optional blower and remote control available for all models
-
Uses IHP SV 4-1/2" x 7-1/2" Direct Vent Pipe
-
20 Year Limited Warranty
Model
DRT40ST DRT40PF DRT40CR/L Venting Type
Direct Vent Direct Vent Direct Vent Framing Width
48-1/2" 43-5/8" 43-5/8" Framing Height
47-3/4" 47-3/4" 47-3/4" Framing Depth
22-3/4" 22-3/4" 24" BTU
27,000 - 37,000 27,000 - 37,000 22,000 - 31,000 Style
Traditional Traditional Traditional View Style
See Through Peninsula Corner Controls
Optional Remote Optional Remote Optional Remote Rating
ANSI Z21.88 ANSI Z21.88 ANSI Z21.88 Warranty
20 Year Limited Warranty 20 Year Limited Warranty 20 Year Limited Warranty
-
-
Specifications

FRAMING SPECS
-
