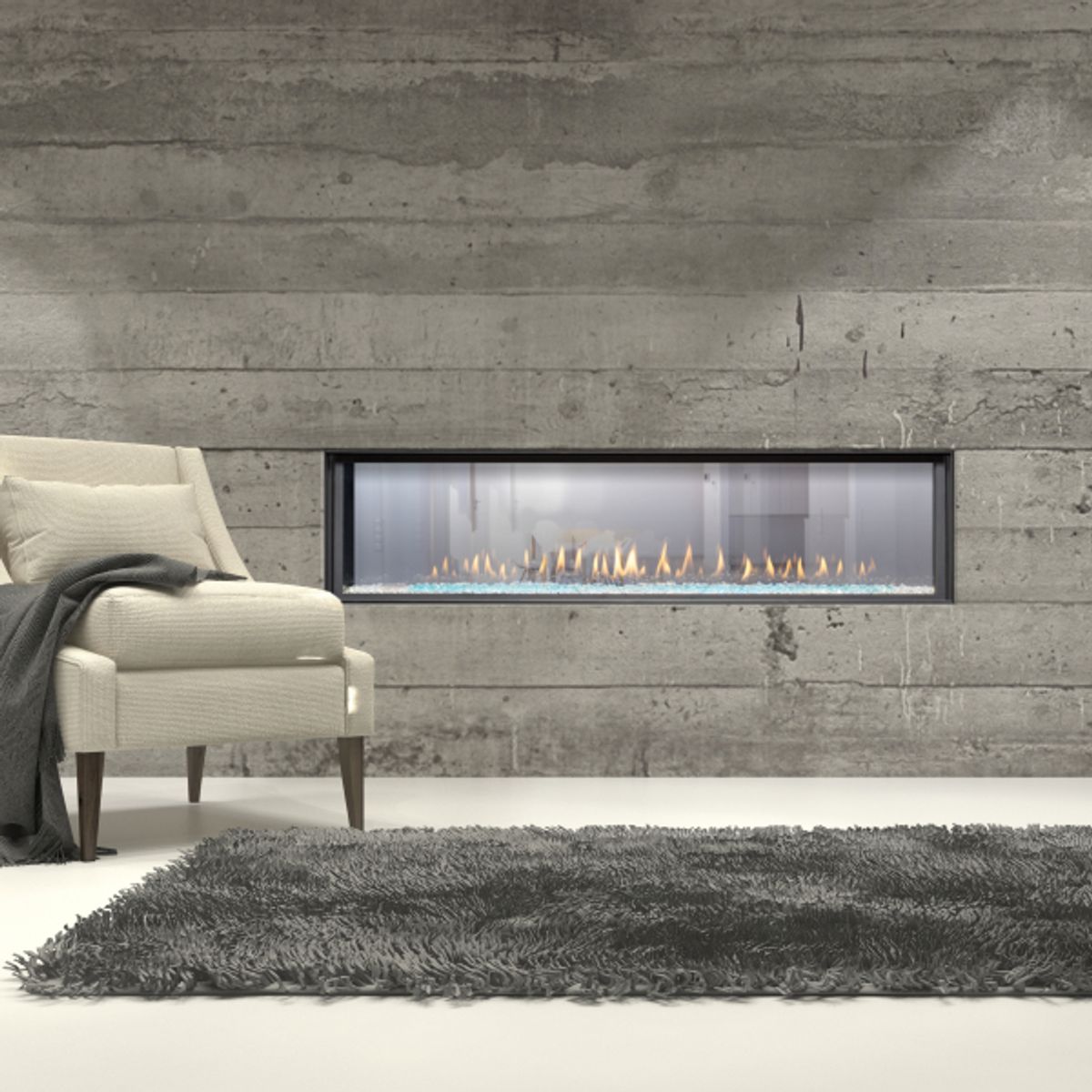

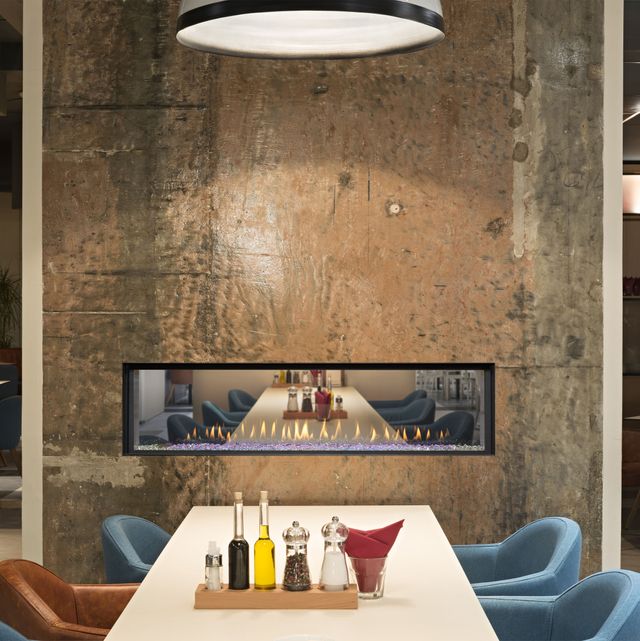

Distinction Series: D6315ST See-Through
The D6315ST offers a wide scope of luxury with 63’’ of viewing area. The unit also comes standard with reflective porcelain liners, multi color LED uplighting, Ceramic glass and a full function remote. The D6315ST is a full load single sided direct vent fireplace characterized by a generous landscape viewing area and linear burner. The concealed burner allows the burner to be covered with glass or stone media.
Standard Features:
-
Clean face design
-
50,000 BTU/HR NG or LP Montigo 4TH generation linear concealed burner
-
Ceramic glass door with flush safety screen
-
50% turn down gas valve with steppermotor
-
IPI Electronic Ignition
-
Power vent compatible
-
Full Feature Proflame 2 remote control
-
Concealed burner, ceramic glass reflective liner, multicolor LED lighting + star ice fireglass
Specs
Max BTU (NG) | 50,000 |
Frame Width (Front) | 65 13/16'' |
Frame Height | 16 1/8’’ |
Glass Opening Width | 63" |
Glass Opening Height | 14 3/8" |
Inner Vent Size | 5 |
Outer Vent Size | 8 |
Vent Type | Top Vent |
Dimensions
Framing Specs
- Ignition Type:
- Electric
- Smart Control:
- Yes
