Description
Enjoy the fire yearlong, from either side. Venting in the Twilight see-through indoor/outdoor fireplace gives you freedom in designing two spaces, including windows above the fire to expand fireside views.
-

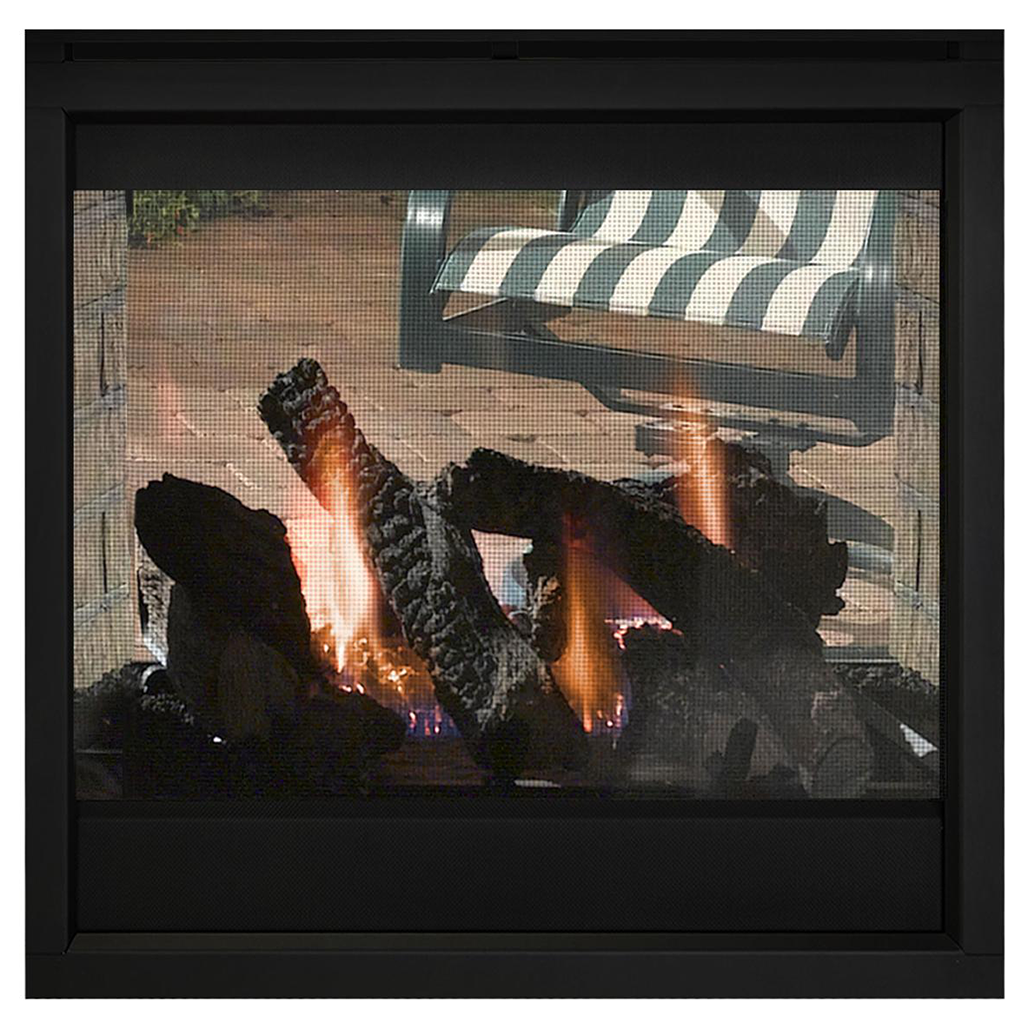

Unique indoor/outdoor viewing for increased fireside views
-

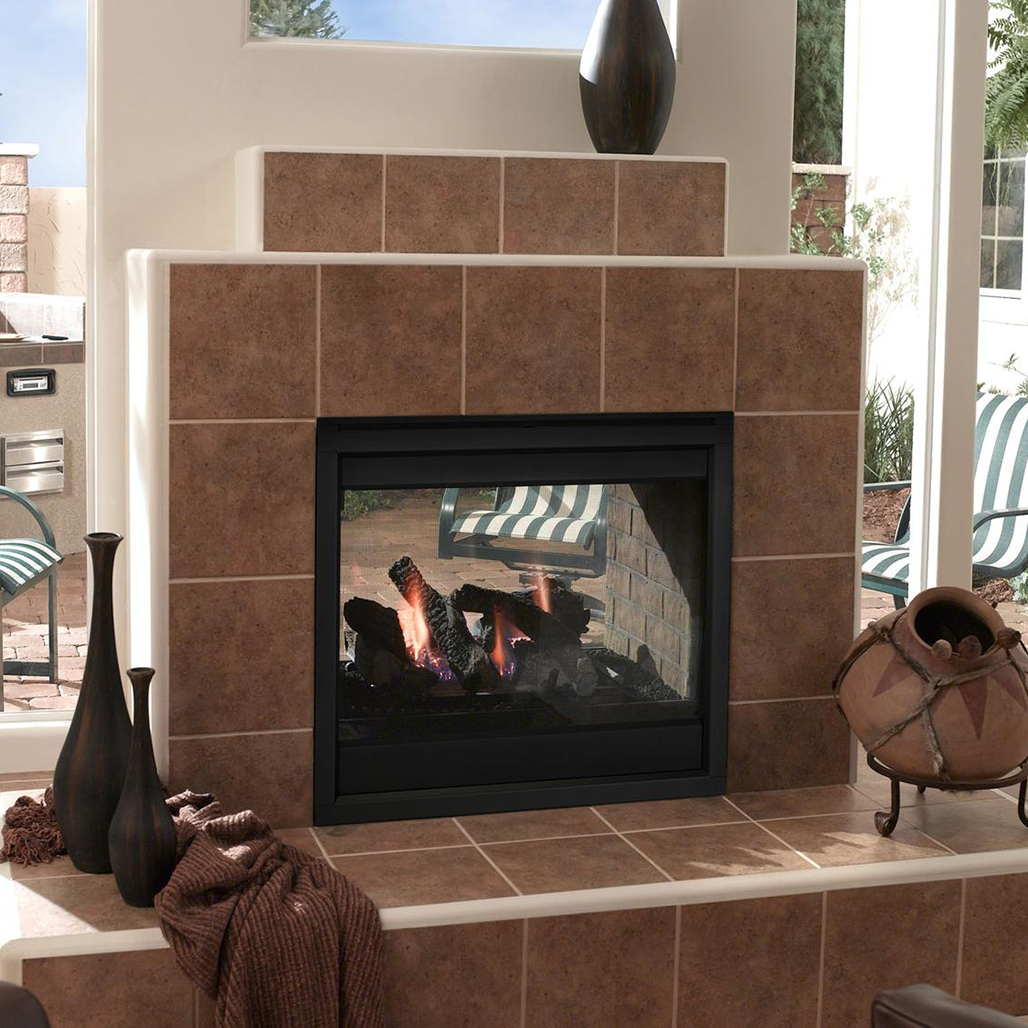

No chimney or venting required, blending your fireplace effortlessly into your outdoor space
-
IntelliFire™ Ignition System with wall switch constantly monitors ignition and ensures safe functioning
-
36" wide fireplace adds enjoyment to your space
Includes:
-
38,000 Btu/Hour Input (NG)
-
36,000 Btu/Hour Input (LP)
-
Gas Flex Connector
-
Traditional Refractory
-
Junction Box
-
7 ceramic fiber logs
-
Manual Gas Shut-off Valve
-
Glowing Embers
-
Battery backup
-
Exterior front
Required to Complete - Sold Separately:
-
1 interior front
-
Units are built NG. Conversion kit required for LP.
-
-
Specifications
Appliance Width:
43"
Appliance Height:
46-7/8"
Appliance Depth1:
24"
Appliance Rear Width:
43"
Framing Width:
44"
Framing Height:
47-5/8"
Framing Depth2:
23"
Framing Front Width:
44"
Framing Back Width:
44"
BTU/hr Input:
38,000 NG
Viewing Area:
35-5/8 x 21-1/2"
-
Appliance Depth includes entire unit including depth of firebox and extension onto hearth.
-
Framing depth will vary if you are installing the lower profile power vent (PVLP-SLP) with a minimum vent configuration. 12-1/2” is needed from the back of the appliance to the outside of the exterior wall. Refer to manual for details.
Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
Front View - Indoors
Front View - Outdoor
Left View
Right View
Top View
Basic Clearances
Framing Dimensions
-
- Downloads
Enjoy the fire yearlong, from either side. Venting in the Twilight see-through indoor/outdoor fireplace gives you freedom in designing two spaces, including windows above the fire to expand fireside views.
-
Unique indoor/outdoor viewing for increased fireside views
-
No chimney or venting required, blending your fireplace effortlessly into your outdoor space
-
IntelliFire™ Ignition System with wall switch constantly monitors ignition and ensures safe functioning
-
36" wide fireplace adds enjoyment to your space
Includes:
-
38,000 Btu/Hour Input (NG)
-
36,000 Btu/Hour Input (LP)
-
Gas Flex Connector
-
Traditional Refractory
-
Junction Box
-
7 ceramic fiber logs
-
Manual Gas Shut-off Valve
-
Glowing Embers
-
Battery backup
-
Exterior front
Required to Complete - Sold Separately:
-
1 interior front
-
Units are built NG. Conversion kit required for LP.
Appliance Width: |
43" |
---|---|
Appliance Height: |
46-7/8" |
Appliance Depth1: |
24" |
Appliance Rear Width: |
43" |
Framing Width: |
44" |
Framing Height: |
47-5/8" |
Framing Depth2: |
23" |
Framing Front Width: |
44" |
Framing Back Width: |
44" |
BTU/hr Input: |
38,000 NG |
Viewing Area: |
35-5/8 x 21-1/2" |
-
Appliance Depth includes entire unit including depth of firebox and extension onto hearth.
-
Framing depth will vary if you are installing the lower profile power vent (PVLP-SLP) with a minimum vent configuration. 12-1/2” is needed from the back of the appliance to the outside of the exterior wall. Refer to manual for details.
Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
Front View - Indoors
Front View - Outdoor
Left View
Right View
Top View
Basic Clearances
Framing Dimensions
