Description

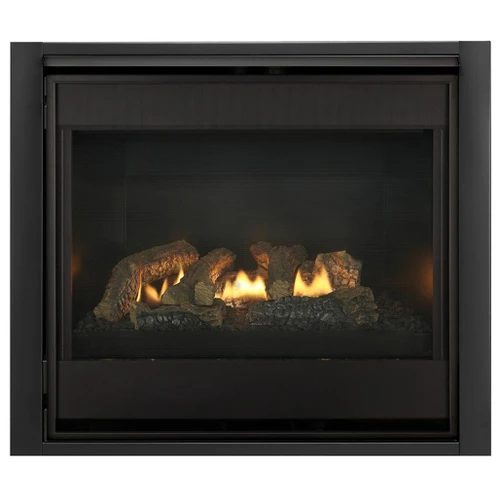

For a sleek fit with distinctive style, the SlimLine Fusion modern gas fireplace gives you endless options. Create your look with a blend of 10 modern and traditional elements to fill your space with a Heat N Glo Fireplace.
DIRECT VENT TECHNOLOGY
Uses outside air for combustion, expelling 100% of the combustion exhaust and by-products.
INTELLIFIRE® IGNITION SYSTEM
Monitors ignition at all times to assure safe performance and save energy costs.
SLIM DEPTH
Allows for unique installations in small rooms, corners, and tight spaces to preserve your livable space.
Includes:
-
16,500-24,000 Btu/Hour Input (NG)
-
16,500-20,500 Btu/Hour Input (LP)
-
Gas flex connector
-
Standard Definition Log set
-
Tempered glass
-
Battery backup
-
5" x 8" rear vent collar
-
Junction box
-
4" x 6-5/8" top vent collar
-
IntelliFire Touch ignition
-
12' control wire Optional Wi-Fi with Intellifire App
-
Full coverage mesh front
-
Black hood
-
-
Specifications
Model
SlimLine Fusion 5 w/IFT
SlimLine Fusion 7 w/IFT
Framing Width
37"
42"
Framing Depth
16-1/4"
16-1/4"
Framing Height
34-3/4"
38-1/4"
BTU/hr Input
12,000 - 17,500
16,500 - 23,500
Viewing Area
27-3/16 x 18-1/16"
32-1/16 x 21-1/2"
- Downloads
- Videos
For a sleek fit with distinctive style, the SlimLine Fusion modern gas fireplace gives you endless options. Create your look with a blend of 10 modern and traditional elements to fill your space with a Heat N Glo Fireplace.
DIRECT VENT TECHNOLOGY
Uses outside air for combustion, expelling 100% of the combustion exhaust and by-products.
INTELLIFIRE® IGNITION SYSTEM
Monitors ignition at all times to assure safe performance and save energy costs.
SLIM DEPTH
Allows for unique installations in small rooms, corners, and tight spaces to preserve your livable space.
Includes:
-
16,500-24,000 Btu/Hour Input (NG)
-
16,500-20,500 Btu/Hour Input (LP)
-
Gas flex connector
-
Standard Definition Log set
-
Tempered glass
-
Battery backup
-
5" x 8" rear vent collar
-
Junction box
-
4" x 6-5/8" top vent collar
-
IntelliFire Touch ignition
-
12' control wire Optional Wi-Fi with Intellifire App
-
Full coverage mesh front
-
Black hood
|
Model |
SlimLine Fusion 5 w/IFT |
SlimLine Fusion 7 w/IFT |
|---|---|---|
|
Framing Width |
37" |
42" |
|
Framing Depth |
16-1/4" |
16-1/4" |
|
Framing Height |
34-3/4" |
38-1/4" |
|
BTU/hr Input |
12,000 - 17,500 |
16,500 - 23,500 |
|
Viewing Area |
27-3/16 x 18-1/16" |
32-1/16 x 21-1/2" |
