FEATURES
- Up to 65,000 BTU, natural gas or propane
- Two different ceramic glass heights, 16″ or 24″, for better flame view
- Indoor & outdoor options
- Double glass or protective screens, heat barrier
- Available in 8 different sizes 25”-100” long
- New multi color LED option
- Electronic ignition with battery backup

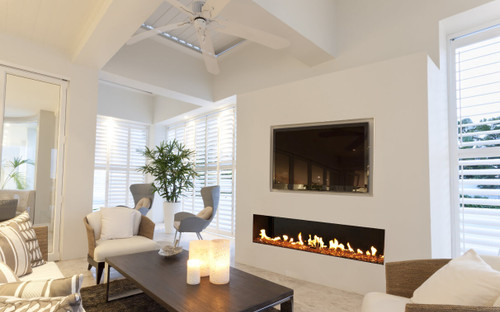

- “Cold Wall” above fireplace, perfect for mounting a TV
- Optional Power Vent system
- Includes 7 different media options: Fireglass, Ceramic Pebbles or Wood logs
- Optional ceramic reflective back
- Touch Remote - Six button stylish remote with timer, sleep mode, flame height adjustment, programming and temperature control.
- 3D Stainless Steel Burners - Longer, 3D stainless steel, burners (V.S a pipe burner) with deeper taller flame that extends closer to the sides of the fireplace
- All units are certified and approved by CSA to be installed in North America, including in the states of California & Massachusett
3D Stainless Steel Burners
Multi Color LED Lighting Option
Double Glass
Touch Remote
SPECIFICATIONS
Imperial Model Sizes
MODEL NAME A B C H E Flare-FF-100 101 8/16" 97 3/16" 16" 28" 5x8" Flare-FF-80 84 9/16" 80 1/16" 16" 28" 5x8" Flare-FF-70 71 15/16" 67 11/16" 16" 28" 5x8" Flare-FF-60 62 2/16" 57 13/16" 16" 28" 5x8" Flare-FF-50 52 5/16" 48" 16" 28" 5x8" Flare-FF-45 45 9/16" 41 5/16" 16" 28" 4x6" Flare-FF-30 32 10/16" 28 5/16" 24" 35 14/16" 4x6" Flare-FF-25 24 12/16" 20 7/16" 24" 35 14/16" 4x6" Flare-FF-100-H 101 8/16" 97 3/16" 24" 35 14/16" 5x8" Flare-FF-80-H 84 9/16" 80 1/16" 24" 35 14/16" 5x8" Flare-FF-70-H 71 15/16" 67 11/16" 24" 35 14/16" 5x8" Flare-FF-60-H 62 2/16" 57 13/16" 24" 35 14/16" 5x8" Flare-FF-50-H 52 5/16" 48" 24" 35 14/16" 5x8" Flare-FF-45-H 45 9/16" 41 5/16" 24" 35 14/16" 4x6" NG
Model Name Burner Type BTU/H Max Input Max[KW] BTU/H Min Efficiency Flare-100 H 65813 19.3 32500 80.3% Flare-80 G 57629 16.9 31000 79.7% Flare-70 F 55583 16.3 28000 79.8% Flare-60 E 52173 15.3 28000 79.2% Flare-50 D 46035 13.5 22750 79.3% Flare-45 C 42966 12.6 22000 79.2% Flare-30 B 34782 10.2 18500 79.5% Flare-25 A 30690 9 17500 79.1% Flare-100-H H 65813 19.3 32500 80.2% Flare-80-H G 57629 16.9 31000 79.8% Flare-70-H F 55583 16.3 28000 79.8% Flare-60-H E 52173 15.3 28000 79.5% Flare-50-H D 46035 13.5 22750 79.4% Flare-45-H C 42966 12.6 22000 79.7% LPG
Model Name Burner Type BTU/h max BTU max [KW] BTU min Efficiency Flare-100 H 51150 15 25500 76 Flare-80 G 46376 13.6 20750 75 Flare-70 F 42966 12.6 20000 79 Flare-60 E 42966 12 20000 80 Flare-50 D 40920 10.3 18500 82 Flare-45 C 26257 7700 17750 82 Flare-30 B 26257 7700 1600 81 Flare-25 A 24893 7300 12500 77 Flare-100-H H 51150 15 25500 78 Flare-80-H G 46376 13.6 20750 80 Flare-70-H F 42966 12.6 20000 79 Flare-60-H E 42966 12 20000 80 Flare-50-H D 40920 10.3 18500 82 Flare-45-H C 35123 7700 17750 83 MEDIA
Fireglass - Reflective Bronze
Fireglass - Reflective Copper
Fireglass - Reflective Platinum
Ceramic Pebbles - Black
Cermaic Pebbles - White
Ceramic Pebbles - Mixed Size Earth Pebbles
Ceramic Logs
-
Additional Information
- Ignition Type:
- Electric
- Smart Control:
- Yes
FEATURES
SPECIFICATIONS
MEDIA
FEATURES
- Up to 65,000 BTU, natural gas or propane
- Two different ceramic glass heights, 16″ or 24″, for better flame view
- Indoor & outdoor options
- Double glass or protective screens, heat barrier
- Available in 8 different sizes 25”-100” long
- New multi color LED option
- Electronic ignition with battery backup
- “Cold Wall” above fireplace, perfect for mounting a TV
- Optional Power Vent system
- Includes 7 different media options: Fireglass, Ceramic Pebbles or Wood logs
- Optional ceramic reflective back
- Touch Remote - Six button stylish remote with timer, sleep mode, flame height adjustment, programming and temperature control.
- 3D Stainless Steel Burners - Longer, 3D stainless steel, burners (V.S a pipe burner) with deeper taller flame that extends closer to the sides of the fireplace
- All units are certified and approved by CSA to be installed in North America, including in the states of California & Massachusett
3D Stainless Steel Burners
Multi Color LED Lighting Option
Double Glass
Touch Remote
SPECIFICATIONS
Imperial Model Sizes
| MODEL NAME | A | B | C | H | E |
|---|---|---|---|---|---|
| Flare-FF-100 | 101 8/16" | 97 3/16" | 16" | 28" | 5x8" |
| Flare-FF-80 | 84 9/16" | 80 1/16" | 16" | 28" | 5x8" |
| Flare-FF-70 | 71 15/16" | 67 11/16" | 16" | 28" | 5x8" |
| Flare-FF-60 | 62 2/16" | 57 13/16" | 16" | 28" | 5x8" |
| Flare-FF-50 | 52 5/16" | 48" | 16" | 28" | 5x8" |
| Flare-FF-45 | 45 9/16" | 41 5/16" | 16" | 28" | 4x6" |
| Flare-FF-30 | 32 10/16" | 28 5/16" | 24" | 35 14/16" | 4x6" |
| Flare-FF-25 | 24 12/16" | 20 7/16" | 24" | 35 14/16" | 4x6" |
| Flare-FF-100-H | 101 8/16" | 97 3/16" | 24" | 35 14/16" | 5x8" |
| Flare-FF-80-H | 84 9/16" | 80 1/16" | 24" | 35 14/16" | 5x8" |
| Flare-FF-70-H | 71 15/16" | 67 11/16" | 24" | 35 14/16" | 5x8" |
| Flare-FF-60-H | 62 2/16" | 57 13/16" | 24" | 35 14/16" | 5x8" |
| Flare-FF-50-H | 52 5/16" | 48" | 24" | 35 14/16" | 5x8" |
| Flare-FF-45-H | 45 9/16" | 41 5/16" | 24" | 35 14/16" | 4x6" |
NG
| Model Name | Burner Type | BTU/H Max | Input Max[KW] | BTU/H Min | Efficiency |
|---|---|---|---|---|---|
| Flare-100 | H | 65813 | 19.3 | 32500 | 80.3% |
| Flare-80 | G | 57629 | 16.9 | 31000 | 79.7% |
| Flare-70 | F | 55583 | 16.3 | 28000 | 79.8% |
| Flare-60 | E | 52173 | 15.3 | 28000 | 79.2% |
| Flare-50 | D | 46035 | 13.5 | 22750 | 79.3% |
| Flare-45 | C | 42966 | 12.6 | 22000 | 79.2% |
| Flare-30 | B | 34782 | 10.2 | 18500 | 79.5% |
| Flare-25 | A | 30690 | 9 | 17500 | 79.1% |
| Flare-100-H | H | 65813 | 19.3 | 32500 | 80.2% |
| Flare-80-H | G | 57629 | 16.9 | 31000 | 79.8% |
| Flare-70-H | F | 55583 | 16.3 | 28000 | 79.8% |
| Flare-60-H | E | 52173 | 15.3 | 28000 | 79.5% |
| Flare-50-H | D | 46035 | 13.5 | 22750 | 79.4% |
| Flare-45-H | C | 42966 | 12.6 | 22000 | 79.7% |
LPG
| Model Name | Burner Type | BTU/h max | BTU max [KW] | BTU min | Efficiency |
|---|---|---|---|---|---|
| Flare-100 | H | 51150 | 15 | 25500 | 76 |
| Flare-80 | G | 46376 | 13.6 | 20750 | 75 |
| Flare-70 | F | 42966 | 12.6 | 20000 | 79 |
| Flare-60 | E | 42966 | 12 | 20000 | 80 |
| Flare-50 | D | 40920 | 10.3 | 18500 | 82 |
| Flare-45 | C | 26257 | 7700 | 17750 | 82 |
| Flare-30 | B | 26257 | 7700 | 1600 | 81 |
| Flare-25 | A | 24893 | 7300 | 12500 | 77 |
| Flare-100-H | H | 51150 | 15 | 25500 | 78 |
| Flare-80-H | G | 46376 | 13.6 | 20750 | 80 |
| Flare-70-H | F | 42966 | 12.6 | 20000 | 79 |
| Flare-60-H | E | 42966 | 12 | 20000 | 80 |
| Flare-50-H | D | 40920 | 10.3 | 18500 | 82 |
| Flare-45-H | C | 35123 | 7700 | 17750 | 83 |
MEDIA
Fireglass - Reflective Bronze
Fireglass - Reflective Copper
Fireglass - Reflective Platinum
Ceramic Pebbles - Black
Cermaic Pebbles - White
Ceramic Pebbles - Mixed Size Earth Pebbles
Ceramic Logs
- Ignition Type:
- Electric
- Smart Control:
- Yes
