Description
FEATURES
SPECIFICATIONS
MEDIA
FEATURES
- Up to 65,000 BTU, natural gas or propane
- Two different ceramic glass heights, 16″ or 24″, for better flame view
- Indoor & outdoor options
- Double glass or protective screens, heat barrier
- Available in 8 different sizes 25”-100” long
- New multi color LED option
- Electronic ignition with battery backup
- “Cold Wall” above fireplace, perfect for mounting a TV
- Optional Power Vent system
- Includes 7 different media options: Fireglass, Ceramic Pebbles or Wood logs
- Optional ceramic reflective back
- Touch Remote - Six button stylish remote with timer, sleep mode, flame height adjustment, programming and temperature control.
- 3D Stainless Steel Burners - Longer, 3D stainless steel, burners (V.S a pipe burner) with deeper taller flame that extends closer to the sides of the fireplace
- All units are certified and approved by CSA to be installed in North America, including in the states of California & Massachusett
Learn more about Gas Fireplace.
Browse more Multi Sided Gas Fireplace.
Are you looking to explore more direct vent gasplaces? Explore our premium direct vent gas fireplace collection or take a look at our full selection of Gas Fireplace to find the one you love.
Have any questions about the Flare Double Corner Modern Fireplace? Contact our expert team at sales@embersliving.com or call us at 303-800-5659. We're always ready to assist!
3D Stainless Steel Burners
Multi Color LED Lighting Option
Double Glass
Touch Remote
SPECIFICATIONS

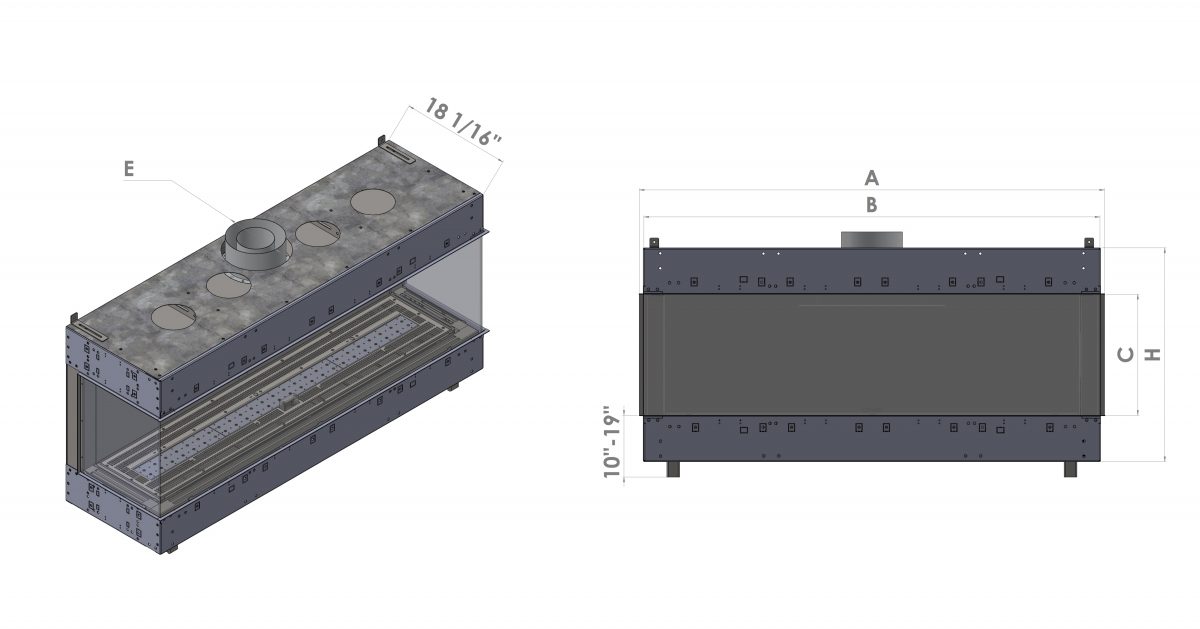

MODEL SIZES
MODEL NAME A B C H E Flare-DC-100 100 8/16" 99 1/4" 16" 28" 5"x8" Flare-DC-80 83 9/16" 82 9/16" 16" 28" 5"x8" Flare-DC-70 71" 69 11/16" 16" 28" 5"x8" Flare-DC-60 61 2/16" 59 7/8" 16" 28" 5"x8" Flare-DC-50 51 5/16" 50" 16" 28" 5"x8" Flare-DC-45 44 10/16" 43 5/16" 16" 28" 4"x6" Flare-DC-30 31 10/16" 30 5/16 24" 35 14/16" 4"x6" Flare-DC-25 23 12/16" 22 7/16" 24" 35 14/16" 4"x6" Flare-DC-100-H 100 8/16" 99 1/4" 24" 35 14/16" 5"x8" Flare-DC-80-H 83 9/16" 82 9/16" 24" 35 14/16" 5"x8" Flare-DC-70-H 71" 69 11/16" 24" 35 14/16" 5"x8" Flare-DC-60-H 61 2/16" 59 7/8" 24" 35 14/16" 5"x8" Flare-DC-50-H 51 5/16" 50" 24" 35 14/16" 5"x8" Flare-DC-45-H 44 10/16" 43 5/16" 24" 35 14/16" 4"x6" NG
Model Name Burner Type BTU/H Max Input Max[KW] BTU/H Min Efficiency Flare-100 H 65813 19.3 32500 80.3% Flare-80 G 57629 16.9 31000 79.7% Flare-70 F 55583 16.3 28000 79.8% Flare-60 E 52173 15.3 28000 79.2% Flare-50 D 46035 13.5 22750 79.3% Flare-45 C 42966 12.6 22000 79.2% Flare-30 B 34782 10.2 18500 79.5% Flare-25 A 30690 9 17500 79.1% Flare-100-H H 65813 19.3 32500 80.2% Flare-80-H G 57629 16.9 31000 79.8% Flare-70-H F 55583 16.3 28000 79.8% Flare-60-H E 52173 15.3 28000 79.5% Flare-50-H D 46035 13.5 22750 79.4% Flare-45-H C 42966 12.6 22000 79.7% LPG
Model Name Burner Type BTU/h max BTU max [KW] BTU min Efficiency Flare-100 H 51150 15 25500 76 Flare-80 G 46376 13.6 20750 75 Flare-70 F 42966 12.6 20000 79 Flare-60 E 42966 12 20000 80 Flare-50 D 40920 10.3 18500 82 Flare-45 C 26257 7700 17750 82 Flare-30 B 26257 7700 1600 81 Flare-25 A 24893 7300 12500 77 Flare-100-H H 51150 15 25500 78 Flare-80-H G 46376 13.6 20750 80 Flare-70-H F 42966 12.6 20000 79 Flare-60-H E 42966 12 20000 80 Flare-50-H D 40920 10.3 18500 82 Flare-45-H C 35123 7700 17750 83 MEDIA

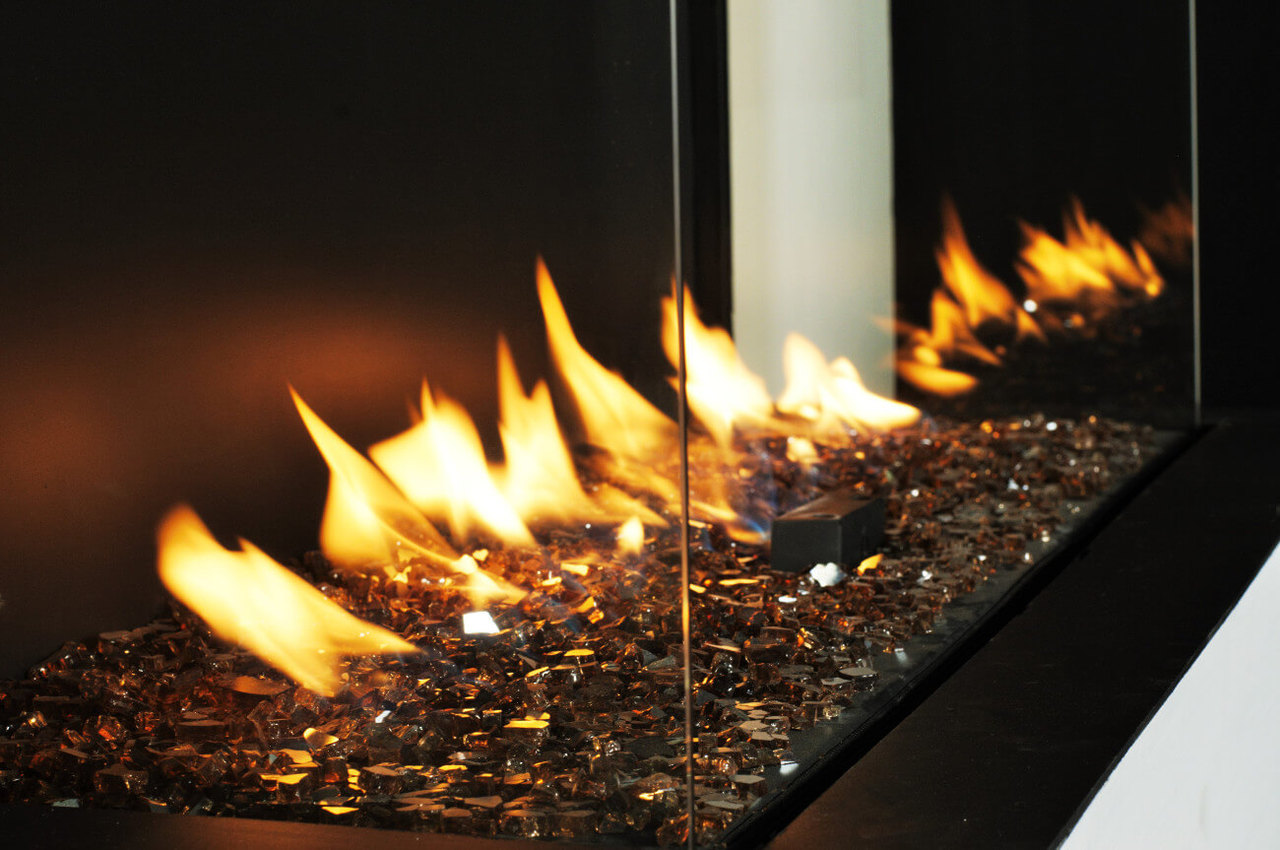

Fireglass - Reflective Bronze
Fireglass - Reflective Copper
Fireglass - Reflective Platinum
Ceramic Pebbles - Black
Cermaic Pebbles - White
Ceramic Pebbles - Mixed Size Earth Pebbles
Ceramic Logs
-
Additional Information
- Ignition Type:
- Electric
- Smart Control:
- Yes
FEATURES
SPECIFICATIONS
MEDIA
FEATURES
- Up to 65,000 BTU, natural gas or propane
- Two different ceramic glass heights, 16″ or 24″, for better flame view
- Indoor & outdoor options
- Double glass or protective screens, heat barrier
- Available in 8 different sizes 25”-100” long
- New multi color LED option
- Electronic ignition with battery backup
- “Cold Wall” above fireplace, perfect for mounting a TV
- Optional Power Vent system
- Includes 7 different media options: Fireglass, Ceramic Pebbles or Wood logs
- Optional ceramic reflective back
- Touch Remote - Six button stylish remote with timer, sleep mode, flame height adjustment, programming and temperature control.
- 3D Stainless Steel Burners - Longer, 3D stainless steel, burners (V.S a pipe burner) with deeper taller flame that extends closer to the sides of the fireplace
- All units are certified and approved by CSA to be installed in North America, including in the states of California & Massachusett
Learn more about Gas Fireplace.
Browse more Multi Sided Gas Fireplace.
Are you looking to explore more direct vent gasplaces? Explore our premium direct vent gas fireplace collection or take a look at our full selection of Gas Fireplace to find the one you love.
Have any questions about the Flare Double Corner Modern Fireplace? Contact our expert team at sales@embersliving.com or call us at 303-800-5659. We're always ready to assist!
3D Stainless Steel Burners
Multi Color LED Lighting Option
Double Glass
Touch Remote
SPECIFICATIONS
MODEL SIZES
| MODEL NAME | A | B | C | H | E |
|---|---|---|---|---|---|
| Flare-DC-100 | 100 8/16" | 99 1/4" | 16" | 28" | 5"x8" |
| Flare-DC-80 | 83 9/16" | 82 9/16" | 16" | 28" | 5"x8" |
| Flare-DC-70 | 71" | 69 11/16" | 16" | 28" | 5"x8" |
| Flare-DC-60 | 61 2/16" | 59 7/8" | 16" | 28" | 5"x8" |
| Flare-DC-50 | 51 5/16" | 50" | 16" | 28" | 5"x8" |
| Flare-DC-45 | 44 10/16" | 43 5/16" | 16" | 28" | 4"x6" |
| Flare-DC-30 | 31 10/16" | 30 5/16 | 24" | 35 14/16" | 4"x6" |
| Flare-DC-25 | 23 12/16" | 22 7/16" | 24" | 35 14/16" | 4"x6" |
| Flare-DC-100-H | 100 8/16" | 99 1/4" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-80-H | 83 9/16" | 82 9/16" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-70-H | 71" | 69 11/16" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-60-H | 61 2/16" | 59 7/8" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-50-H | 51 5/16" | 50" | 24" | 35 14/16" | 5"x8" |
| Flare-DC-45-H | 44 10/16" | 43 5/16" | 24" | 35 14/16" | 4"x6" |
NG
| Model Name | Burner Type | BTU/H Max | Input Max[KW] | BTU/H Min | Efficiency |
|---|---|---|---|---|---|
| Flare-100 | H | 65813 | 19.3 | 32500 | 80.3% |
| Flare-80 | G | 57629 | 16.9 | 31000 | 79.7% |
| Flare-70 | F | 55583 | 16.3 | 28000 | 79.8% |
| Flare-60 | E | 52173 | 15.3 | 28000 | 79.2% |
| Flare-50 | D | 46035 | 13.5 | 22750 | 79.3% |
| Flare-45 | C | 42966 | 12.6 | 22000 | 79.2% |
| Flare-30 | B | 34782 | 10.2 | 18500 | 79.5% |
| Flare-25 | A | 30690 | 9 | 17500 | 79.1% |
| Flare-100-H | H | 65813 | 19.3 | 32500 | 80.2% |
| Flare-80-H | G | 57629 | 16.9 | 31000 | 79.8% |
| Flare-70-H | F | 55583 | 16.3 | 28000 | 79.8% |
| Flare-60-H | E | 52173 | 15.3 | 28000 | 79.5% |
| Flare-50-H | D | 46035 | 13.5 | 22750 | 79.4% |
| Flare-45-H | C | 42966 | 12.6 | 22000 | 79.7% |
LPG
| Model Name | Burner Type | BTU/h max | BTU max [KW] | BTU min | Efficiency |
|---|---|---|---|---|---|
| Flare-100 | H | 51150 | 15 | 25500 | 76 |
| Flare-80 | G | 46376 | 13.6 | 20750 | 75 |
| Flare-70 | F | 42966 | 12.6 | 20000 | 79 |
| Flare-60 | E | 42966 | 12 | 20000 | 80 |
| Flare-50 | D | 40920 | 10.3 | 18500 | 82 |
| Flare-45 | C | 26257 | 7700 | 17750 | 82 |
| Flare-30 | B | 26257 | 7700 | 1600 | 81 |
| Flare-25 | A | 24893 | 7300 | 12500 | 77 |
| Flare-100-H | H | 51150 | 15 | 25500 | 78 |
| Flare-80-H | G | 46376 | 13.6 | 20750 | 80 |
| Flare-70-H | F | 42966 | 12.6 | 20000 | 79 |
| Flare-60-H | E | 42966 | 12 | 20000 | 80 |
| Flare-50-H | D | 40920 | 10.3 | 18500 | 82 |
| Flare-45-H | C | 35123 | 7700 | 17750 | 83 |
MEDIA
Fireglass - Reflective Bronze
Fireglass - Reflective Copper
Fireglass - Reflective Platinum
Ceramic Pebbles - Black
Cermaic Pebbles - White
Ceramic Pebbles - Mixed Size Earth Pebbles
Ceramic Logs
- Ignition Type:
- Electric
- Smart Control:
- Yes
