Zip Water HydroTap Touch Free Wave Water System Kit

HydroTap Touch-Free Wave

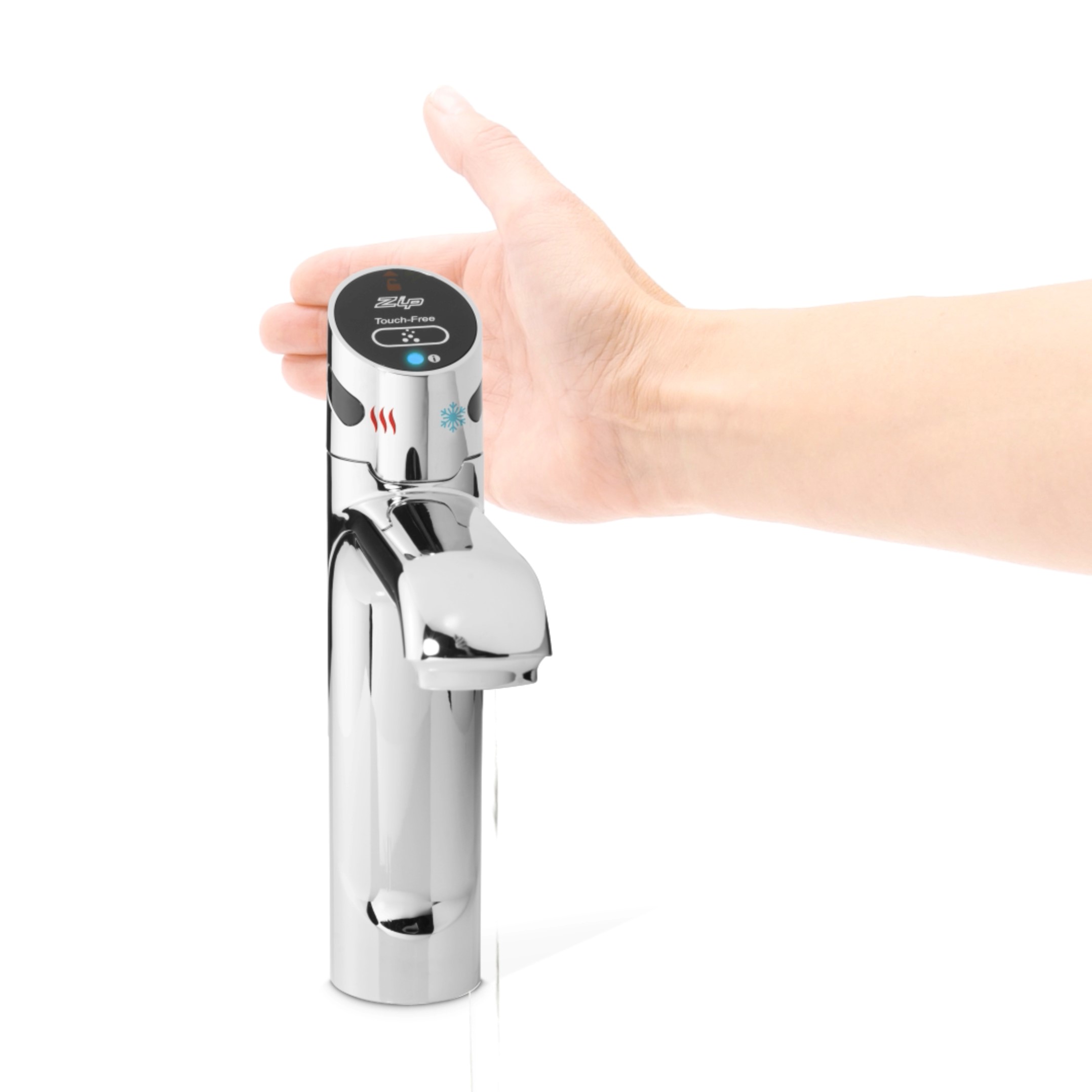

With an increased consideration around hygiene in the workplace, the HydroTap Touch-Free Wave by Zip Water provides a 100% touch-free solution for staff to access instant filtered boiling, chilled, and sparkling water at the wave of a hand.

Create a safer workplace while elevating your drinking water at work by replacing your old inefficient office water dispenser with a HydroTap Touch-Free Wave BCS160/175 and get on demand boiling, chilled and sparkling with just a wave of the hand*.

Unbottle the future. Choose sustainable, touch-free hydration instead with HydroTap by Zip Water – the world’s most advanced drinking water system.

*maximum office size = 60 people; available in Chrome and Matte Black with Chrome accents

Tap:

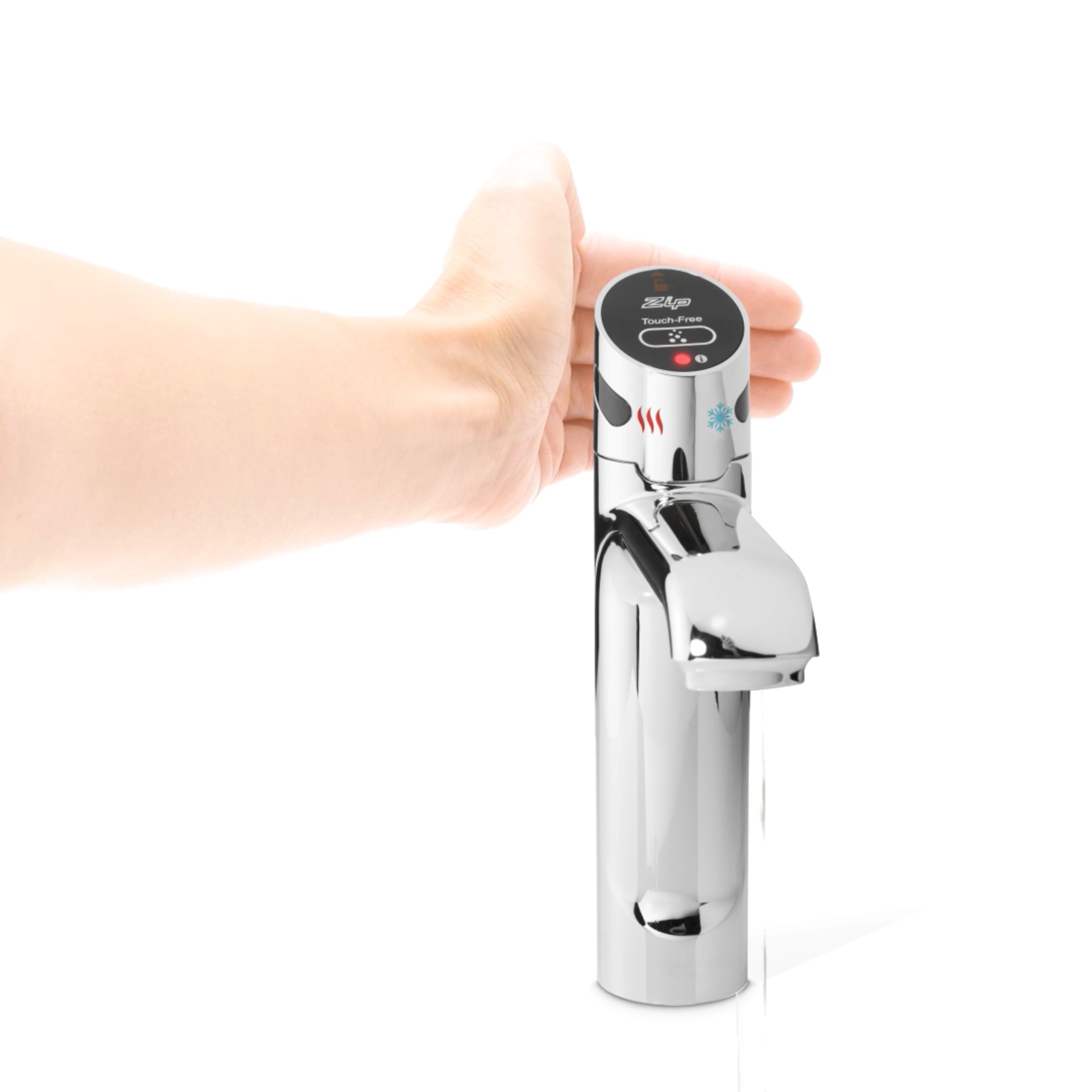

• Style: HydroTap Touch-Free Wave – includes child safety lock

• Hole Size: 1-3/8″

• Available Finishes: Chrome

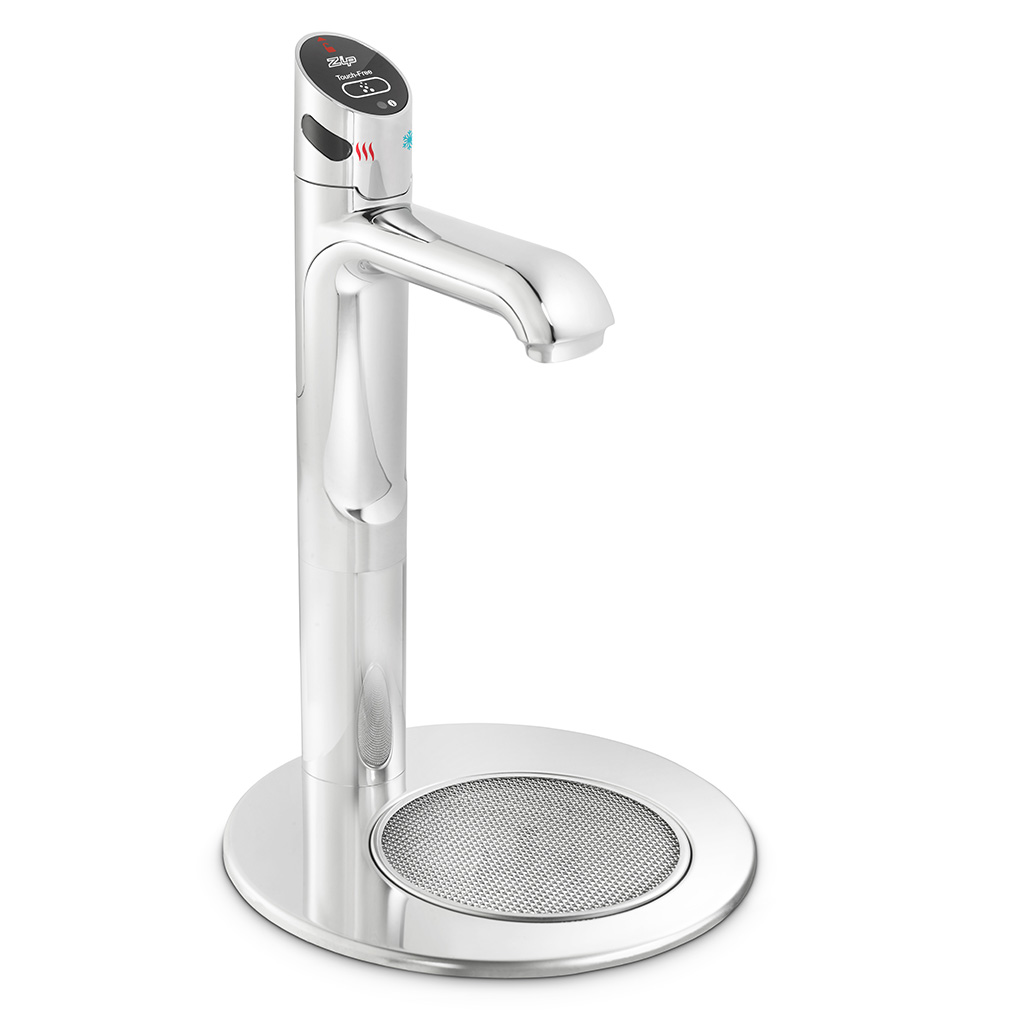

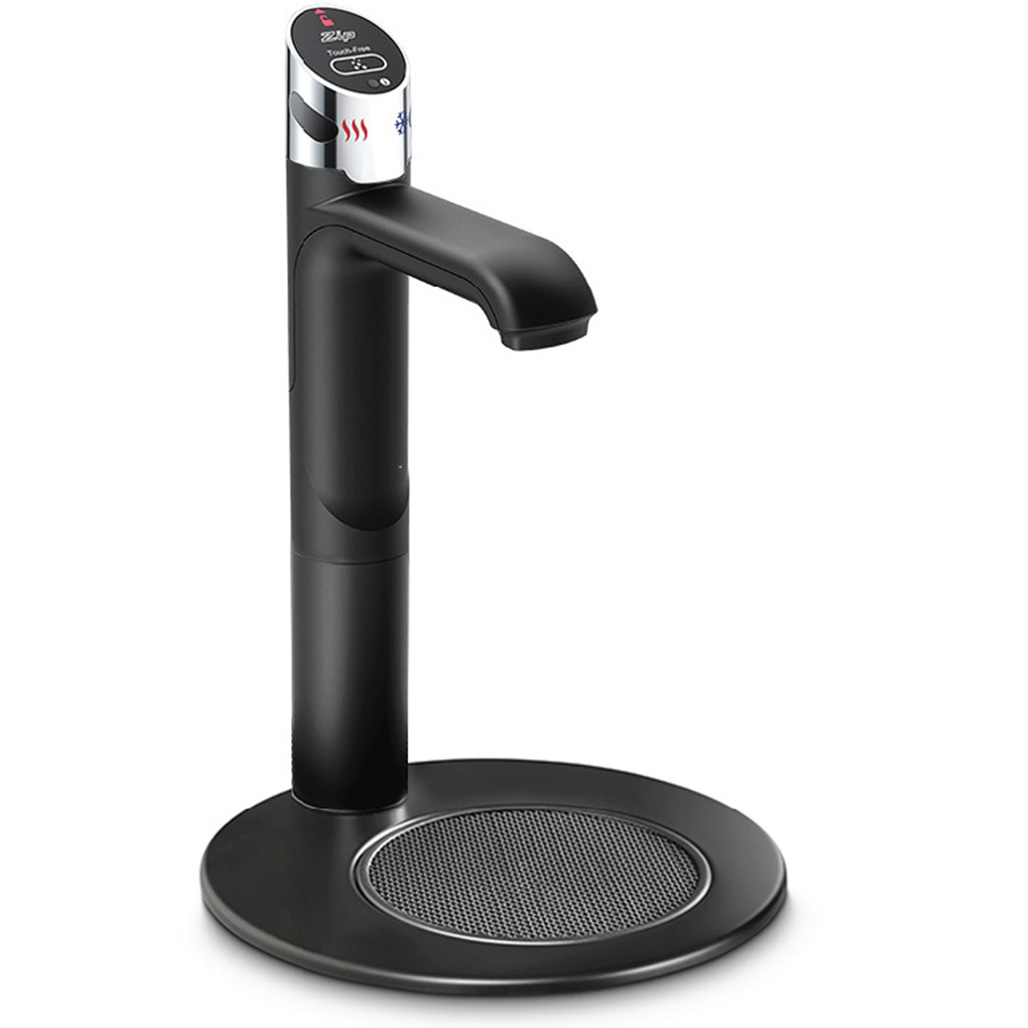

• Installation: Over Sink or On Drip Tray (Optional Font / Drip Tray)

• Flow Rate Max: 1.8 gpm

• Sparkling Water Flow Rate: 0.36 gpm

Command Center:

• Water Pressure: Min 30psi – Max 75psi with a minimum flow rate of 1 gpm

• Water Connection: ½” BSP – isolation valve is required within 3’ of the installation

• Integral Water Valves: HydroTaps are fitted with a Dual check valve and a 50psi Pressure Limiting Valve

• Water Supply Requirements: Potable drinking water supply

• Total Dissolved Solids (TDS): TDS Min 50ppm – Max 120ppm

• Integral Water Filter: 0.2 micron, 1.5 size – Replace every 1,800 gallons or 6 months

• Power rating: 220-240V, 50 Hz, 2.3kW, 9.9A

• Power Supply Requirements: 220-240V, 50/60Hz 15 amp power supply with a NEMA 6-15 outlet

• Dimensions (WxDxH): 15.5″ x 18.3″ x 13.1″

• Minimum Air Gap: Clearances are required – 2″ Left side , 2″ Right side , 8″above

• Dry Weight: 92.59lbs

• Product Approvals: IAPMO, NSF/ANSI 372, 42 & 53, cUL, CEC, ADA Compliant

• Warranty: 2 years (1 year limited Warranty plus additional 1 year warranty is available on product registration)

• CO2 Cylinder: 1 x 5lbs Beverage Grade Carbon Dioxide Cylinder

• CO2 Capacity: Approximately 1,200 GLASSES

• CO2 Operating Pressure: Min 39psi – Max 43psi

• Maximum Hose Connection Length: 3′ (Tap to Command Center)

• Minimum Distance Needed for Installation: 15″ (Interior Wall to Disposal)

• Recommended Cabinet Depth: 24"
