HydroTap Elite Plus for Home

If minimalist and understated is more your style in the heart of the home, the streamlined design and clean lines of the HydroTap Elite Plus are sure to please.

Elevate your drinking water with a HydroTap Elite Plus BCS and get on demand boiling, chilled and sparkling water at home or at work*.

The HydroTap Elite BCS will complement every lifestyle, with on demand sparkling water, advanced smart technology, beautiful design and high filtration for healthier living.
Unbottle the future. Choose sustainable hydration instead with HydroTap by Zip Water – the world’s most advanced drinking water system.
*For home or small office (maximum office size = 10 people)

Tap:

• Style: HydroTap Elite Plus – includes child safety lock

• Hole Size: 1-3/8″

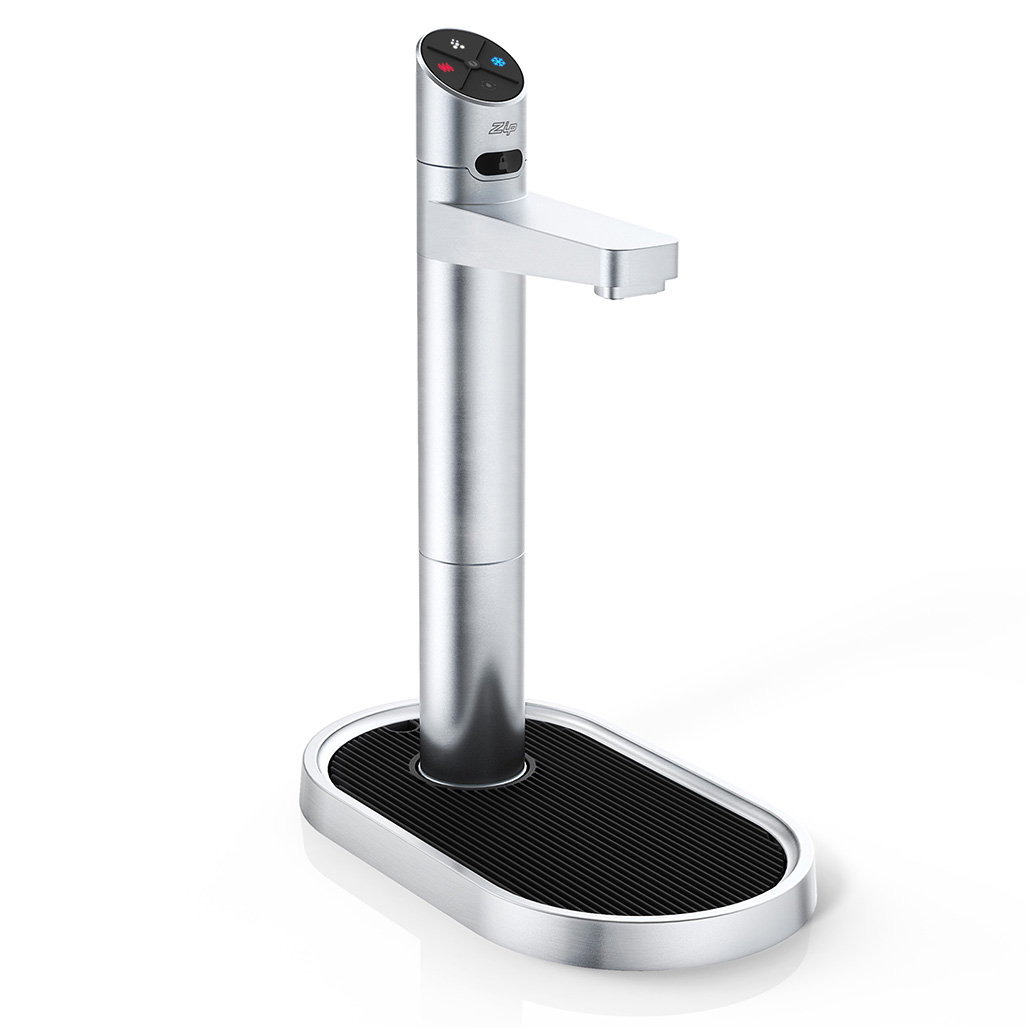

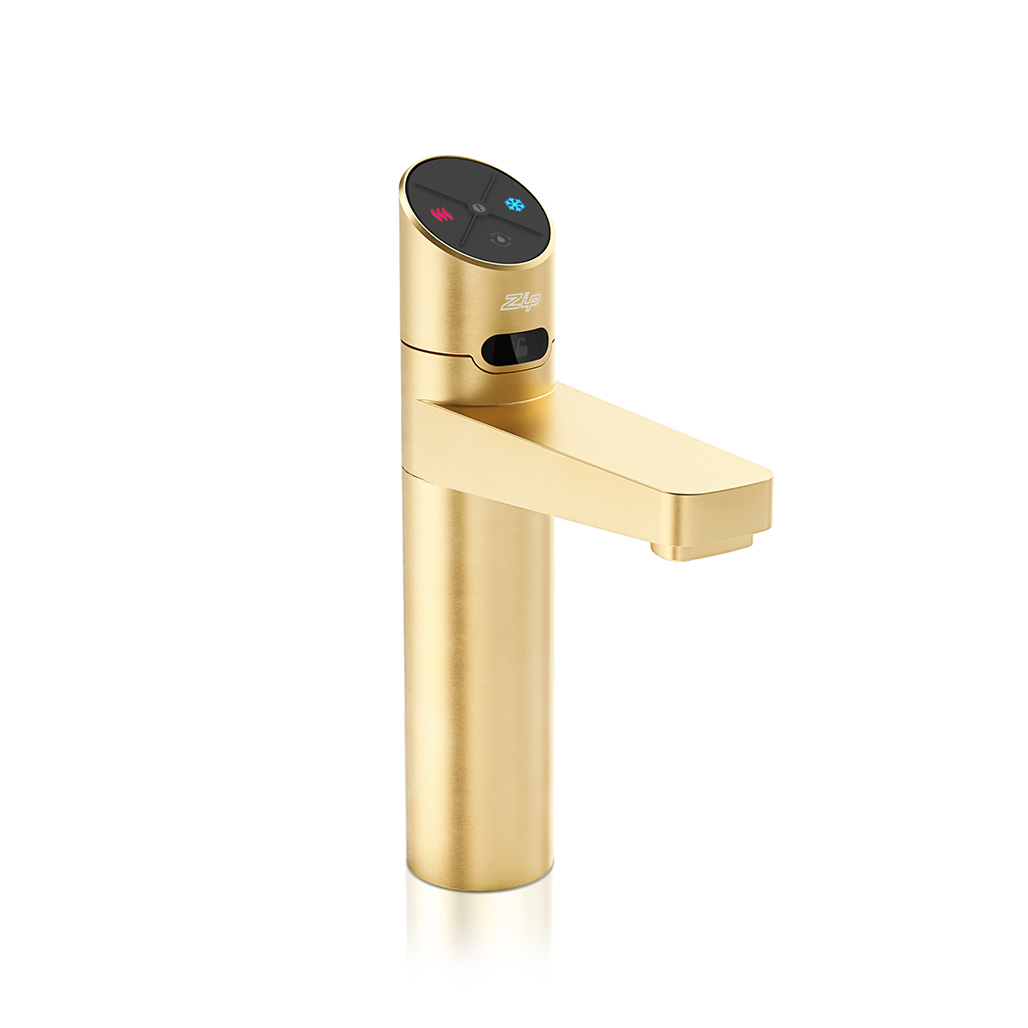

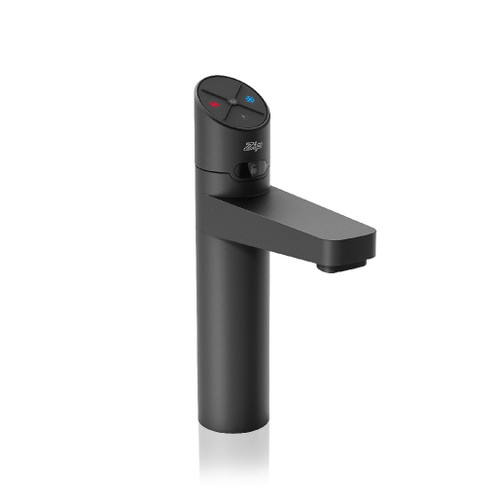

• Available Finishes: Chrome, Brushed Chrome, Matte Black, Brushed Gold, Brushed Nickel and Gunmetal

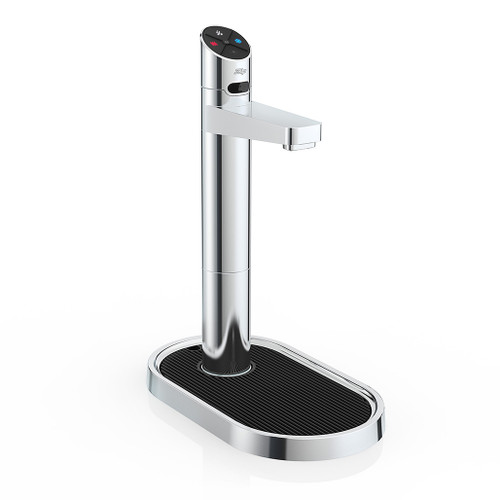

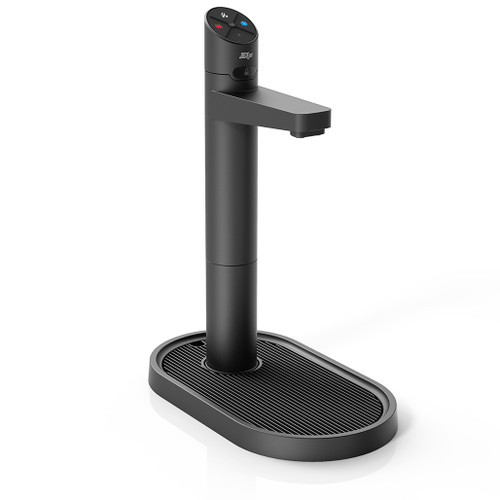

• Installation: Over sink as a secondary tap or on optional font/drip tray

• Flow Rate Max: Max 1.8 gpm / 6.81 lpm

• Sparkling Water Flow Rate: 0.4 gpm / 1.51 lpm

Command Center:

• Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)

• Water Connection: ½” BSP – isolation valve is required within 3’ of the installation

• Integral Water Valves: All HydroTap systems are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2) Pressure Limiting Valve

• Water Supply Requirements: Potable drinking water supply

• Optimal Range of Total Dissolved Solids (TDS): TDS Min 50ppm – Max 150ppm

• Integral Water Filter: 0.2 micron, 1 size – Replace every 1,100 gallons or 12 months

• Power Rating: 1 x 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet

• Dimensions (WxDxH): 13.3” x 18.2” x 13.1” / 339mm x 462mm x 333mm

• Minimum Air Gap: Clearances are required – 2″ Left side , 2″ Right side , 8″ above

• Dry Weight: 75lbs / 34kg

• Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B438.1, ASSE 1023, ASSE 1087; cUL; CEC

• Warranty: 2 years (1 year limited Warranty plus additional 1 year warranty is available on product registration)

• CO2 Cylinder: 2 x 1.5lb Beverage Grade Carbon Dioxide Cylinder

• CO2 Capacity: Approximately 950 8oz cups per 2 cylinders

• CO2 Operating Pressure: Min 39psi – Max 43psi
