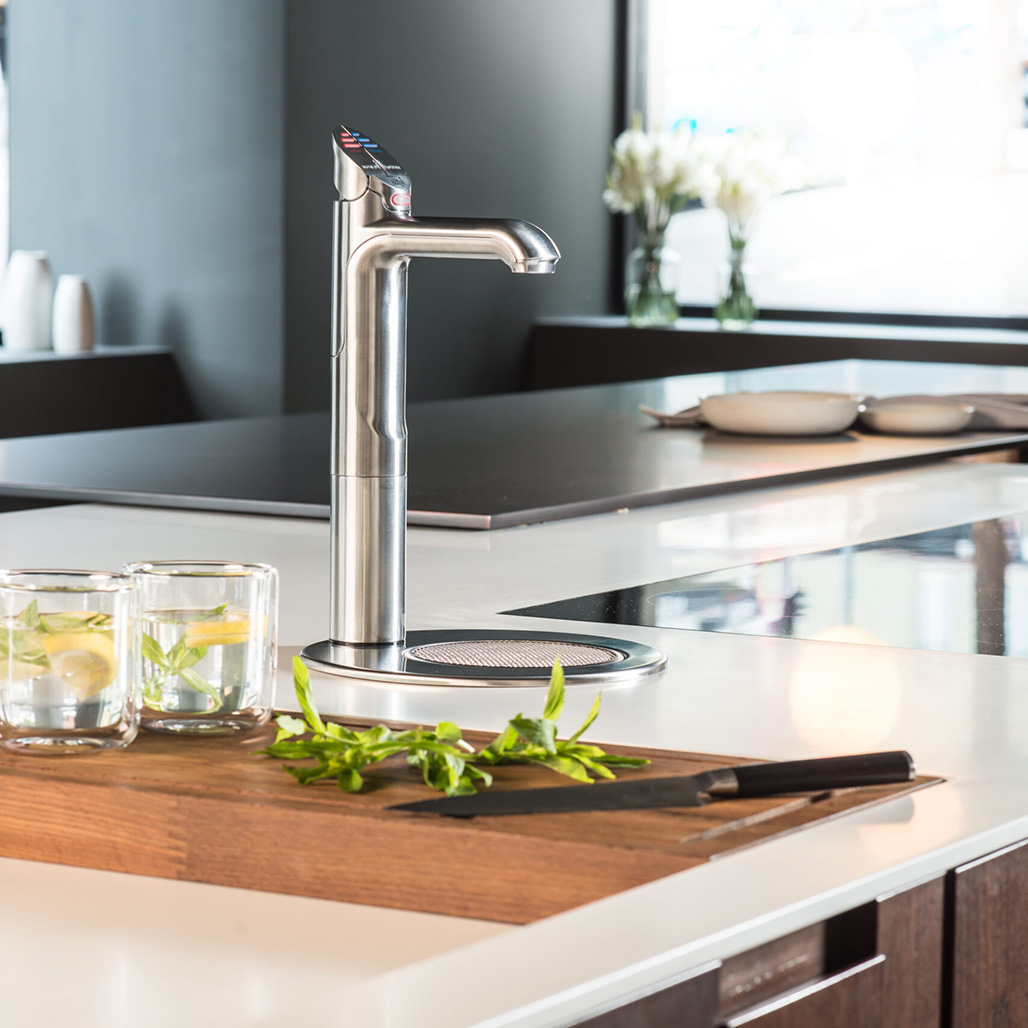

HydroTap Classic for Home

Elevate your drinking water with a HydroTap Classic BCS and get on demand boiling, chilled and sparkling water at home or at work*.

The HydroTap Classic BCS will complement every lifestyle, with on demand sparkling water, advanced smart technology, beautiful design and high filtration for healthier living.
Unbottle the future. Choose sustainable hydration instead with HydroTap by Zip Water – the world’s most advanced drinking water system.
*For home or small office (maximum office size = 20 people)

Product Included Key:

• Base Unit

• Faucet

• Regulator

• CO2

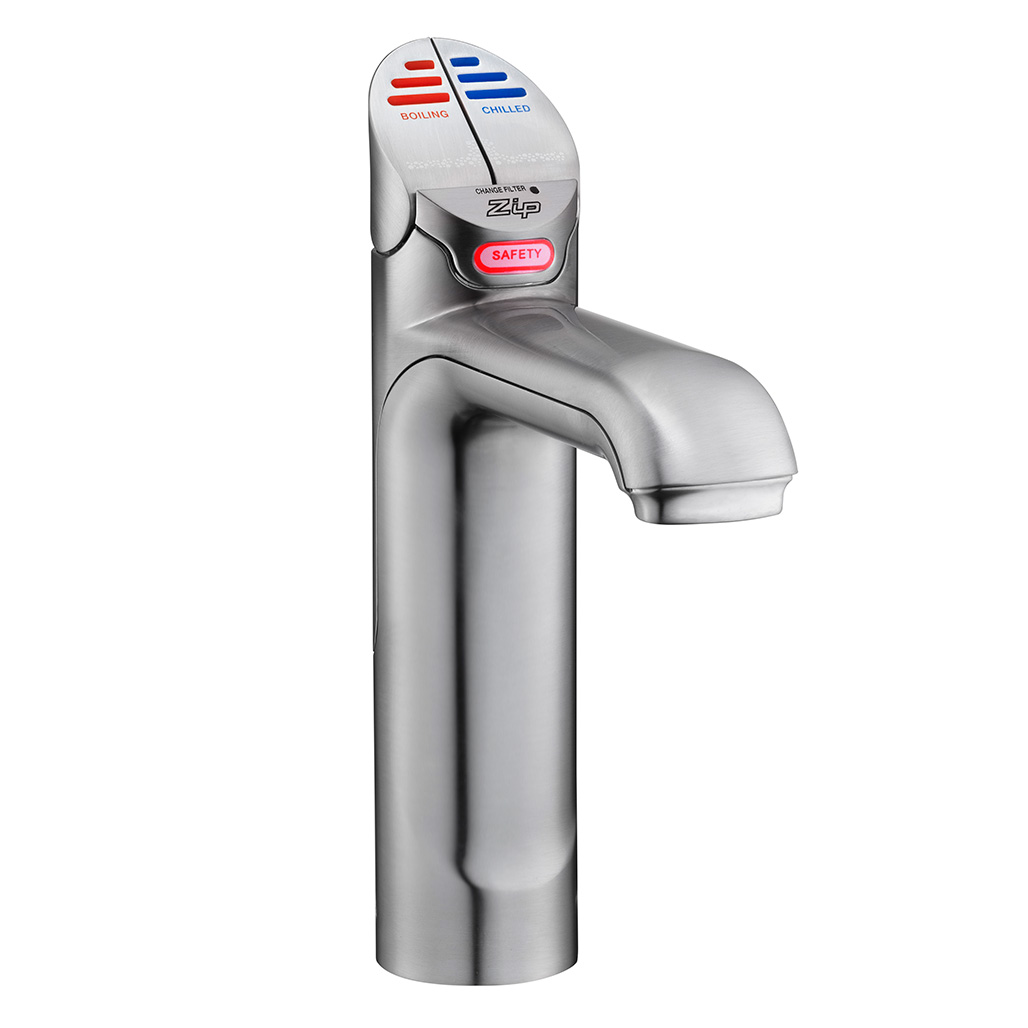

Tap:

• Style: HydroTap Classic – includes child safety lock

• Hole Size: 1-3/8″

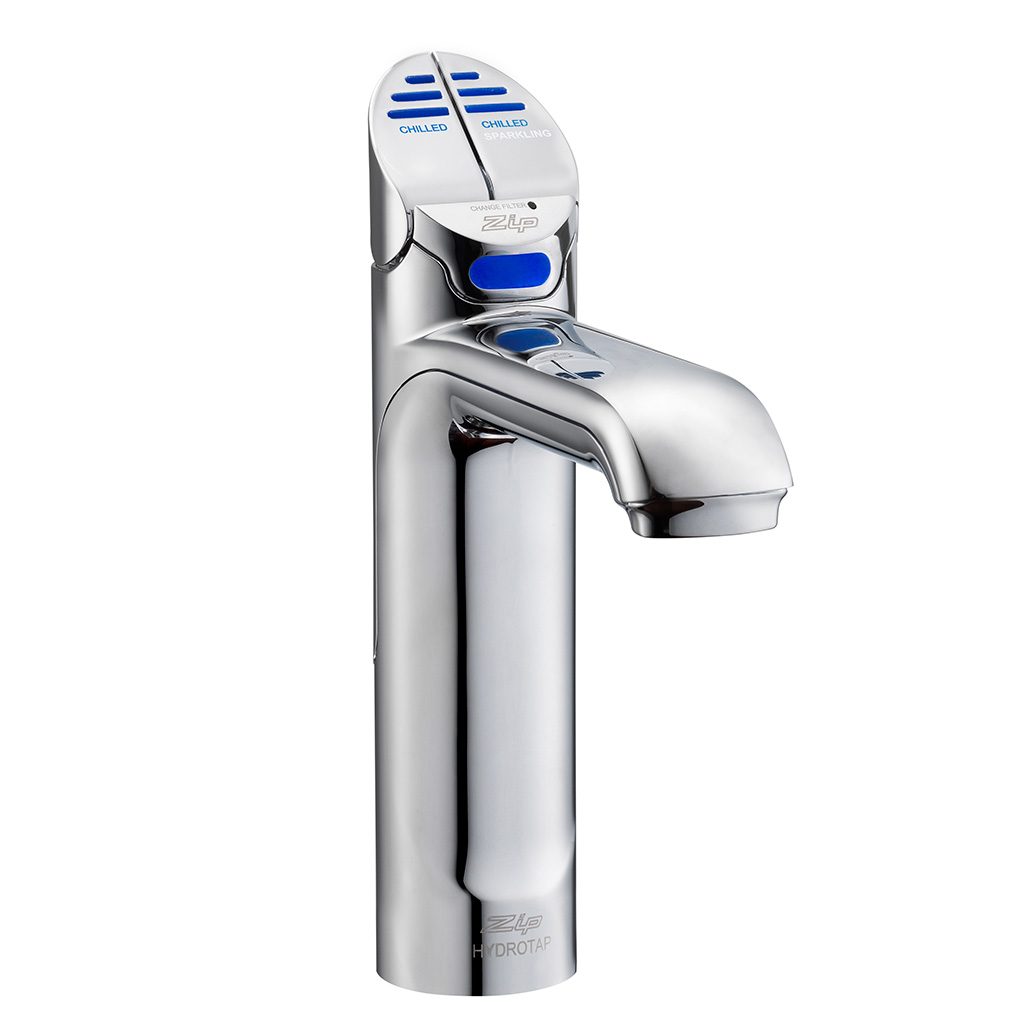

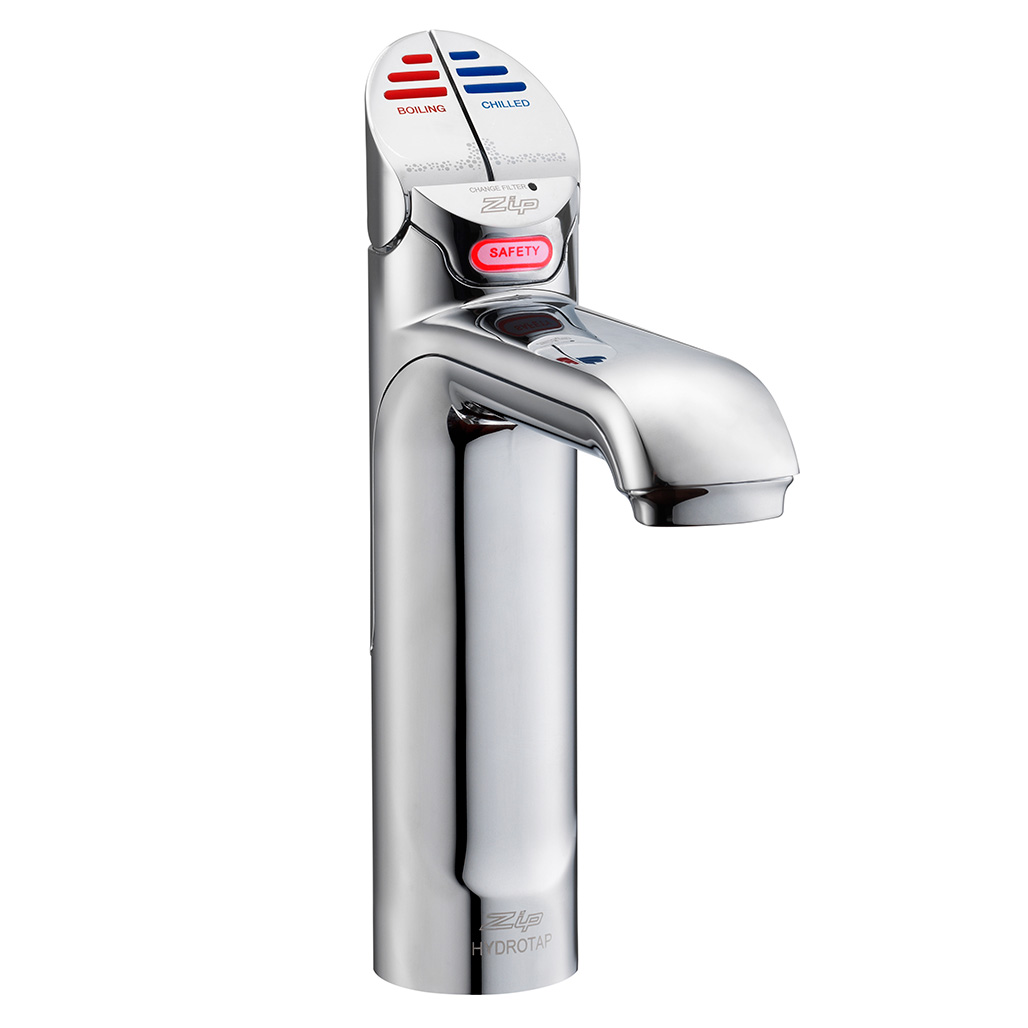

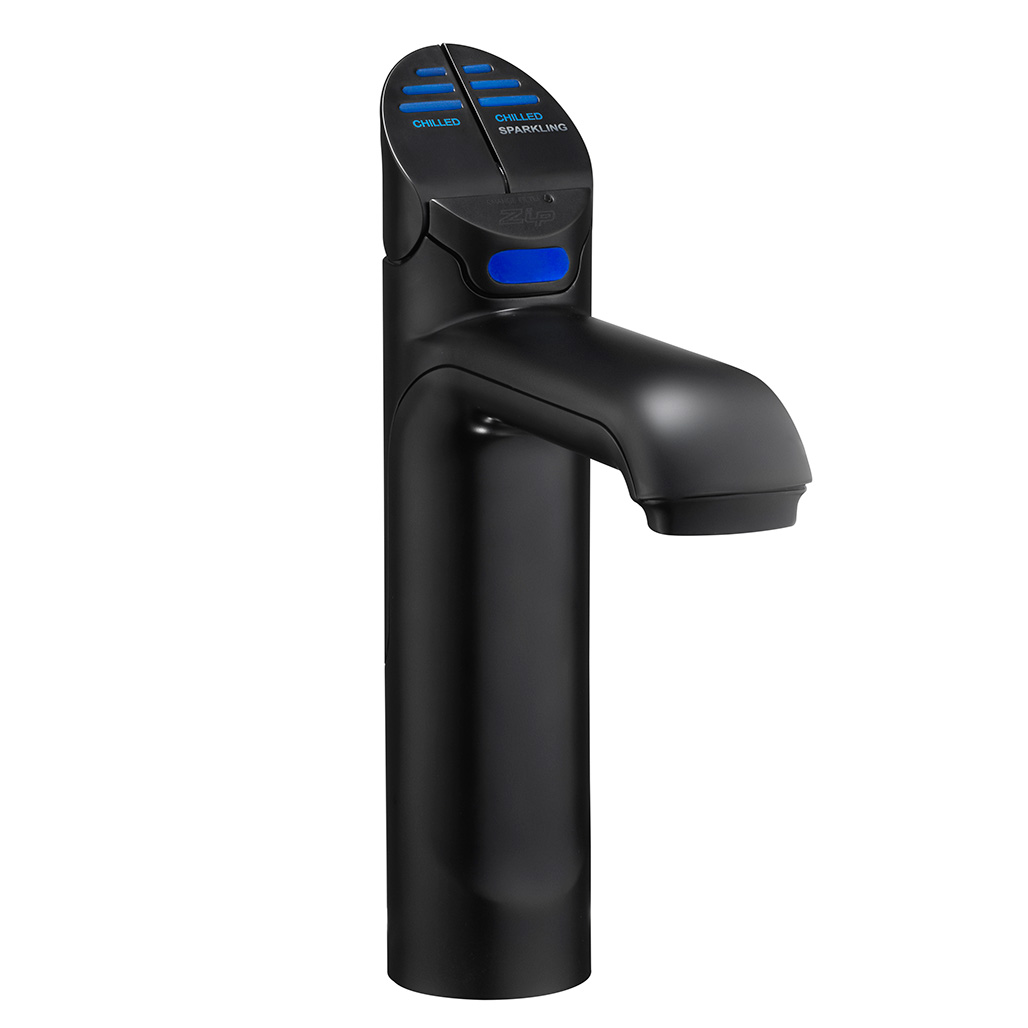

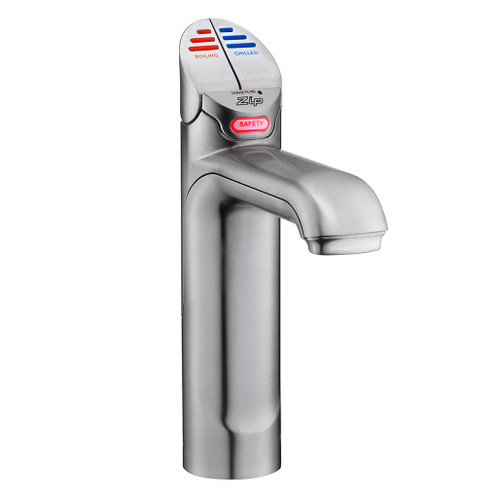

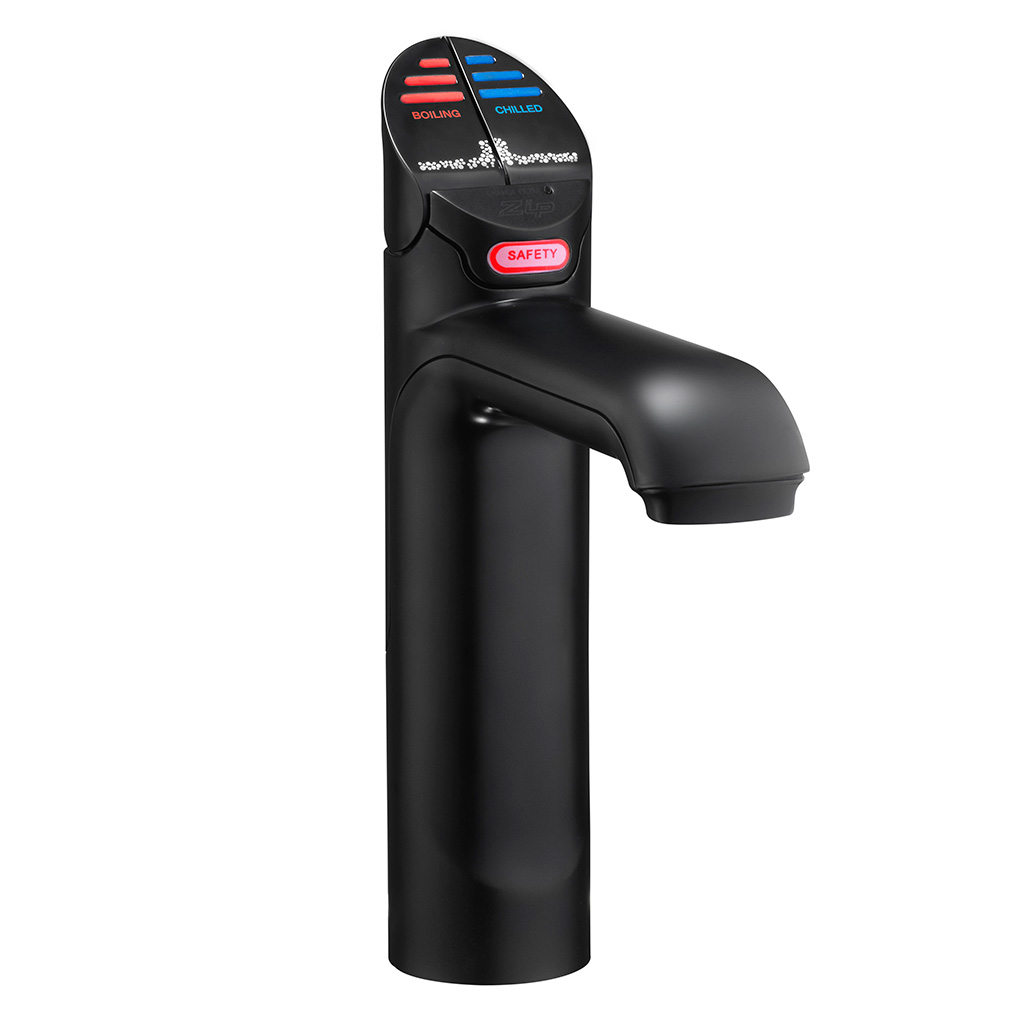

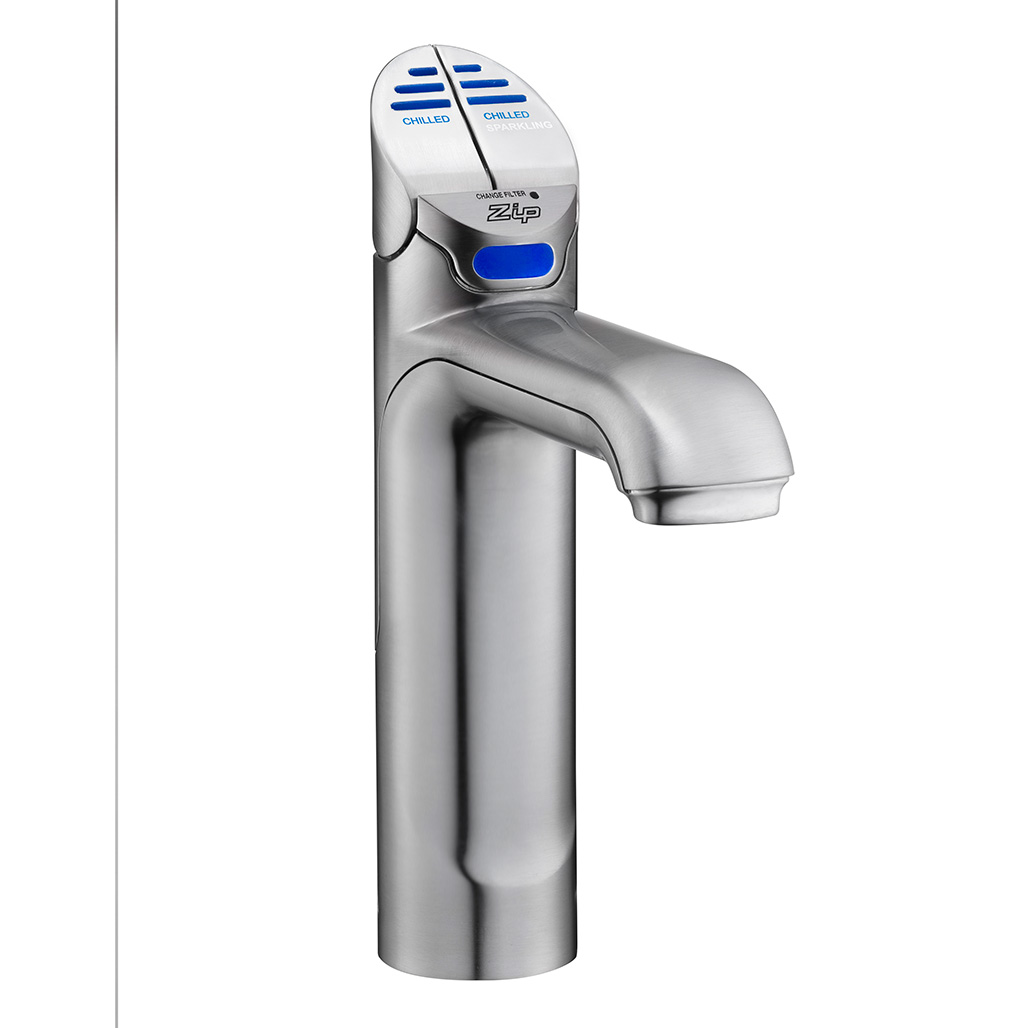

• Available Finishes: Chrome, Brushed Chrome & Matte Black

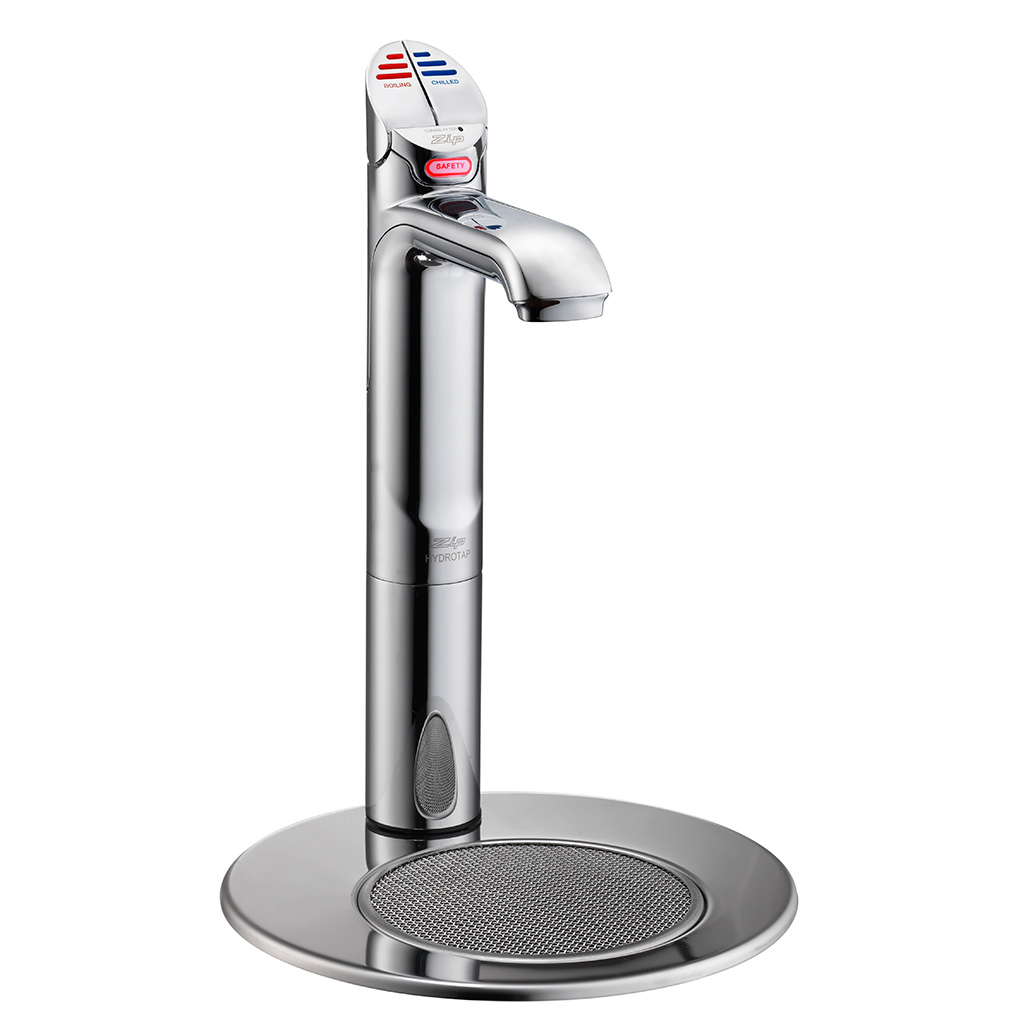

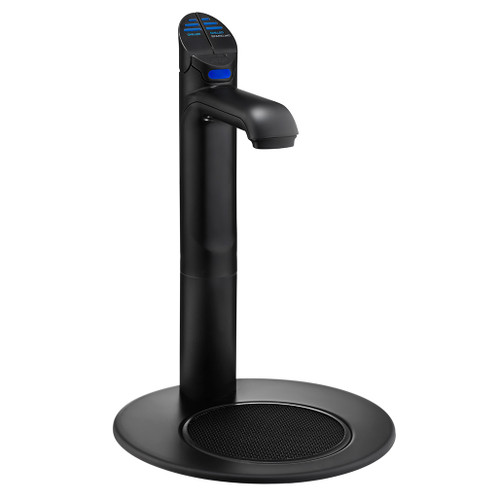

• Installation: Over Sink or On Drip Tray (Optional Font – see accessories)

• Flow Rate Max: 1.8 gpm

• Sparkling Water Flow Rate: 0.36 gpm

Command Center:

• Water Pressure: Min 30psi – Max 75psi with a minimum flow rate of 1 gpm

• Water Connection: ½” BSP – isolation valve is required within 3’ of the installation

• Integral Water Valves: HydroTaps are fitted with a Dual check valve and a 50psi Pressure Limiting Valve

• Water Supply Requirements: Potable drinking water supply

• Total Dissolved Solids (TDS): TDS Min 50ppm – Max 120ppm

• Integral Water Filter: 0.2 micron, 1 size – Replace every 1,500 gallons or 12 months

• Power Rating: 110-120V, 60Hz, 1.25kW

• Power Supply Requirements: 1 x 110-120V, 60Hz, 15 amp power supply with a NEMA 5-15 outlet

• Dimensions (WxDxH): 13.4″ x 18.2″ x 13.1″

• Minimum Air Gap: Clearances are required – 2″ Left side , 2″ Right side , 8″above

• Dry Weight: 85lbs

• Product Approvals: WQA – NSF/ANSI 372, 42 & 53, cUL, CEC, ADA Compliant

• Warranty: 2 years (1 year limited Warranty plus additional 1 year warranty is available on product registration)

• CO2 Cylinder: 2 x 1.5lb Beverage Grade Carbon Dioxide Cylinder

• CO2 Capacity: Approximately 950 8oz cups

• CO2 Operating Pressure: Min 39psi – Max 43psi
