                Description

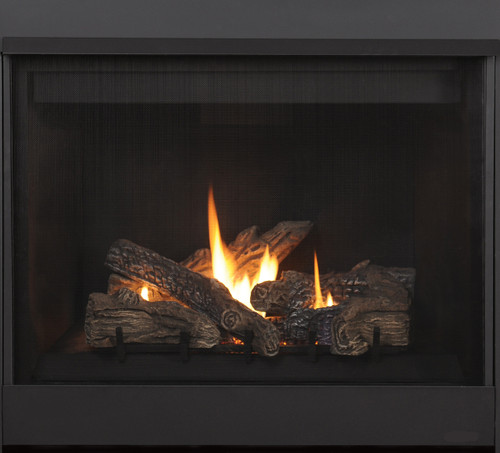

            The DRT2000 Series offers excellent value without compromising on quality or design. These fireplaces offer an array of standard features, increased performance and state of the art technology to ensure many years of beauty and warmth. Features-
Available in 35”, 40” and 45” radiant smooth faced models
-
Mid-size 17” depth saves installed floor space
-
Dedicated top or rear flue configuration (45" model is a combo top/rear)
-
Millivolt or Electronic ignition models available
-
Electronic ignition models include seamless battery backup and provides continued operation in the event of a power outage (IPI/CPI switch standard)
-
Outstanding heating efficiency for increased comfort and lower operating costs
-
Standard tempered glass and a protective screen*
-
Detailed ceramic fiber log set
-
Black painted interior (optional liners available)
-
Optional blower and touch remote or hand-held remote control available for all models
-
Durable textured powder coat finish
-
20 year limited warranty

-
-



                Specifications

            Model DRT2033 DRT2035 DRT2040 DRT2045 Venting Type Direct Vent Direct Vent Direct Vent Direct Vent Framing Width 33-3/4" 35-3/8" 40-3/8" 45-3/8" Framing Height 34-1/4" 36-1/4" 41-1/4" 41-1/4" Framing Depth 14-1/2" 18" 18" 18" BTU 10,000 - 12,000 12,000 - 14,000 15,000 - 16,000 19,000 - 20,000 Style Traditional Traditional Traditional Traditional View Style Front View Front View Front View Front View Controls Optional Remote Optional Remote Optional Remote Optional Remote Rating ANSI Z21.88 ANSI Z21.88 ANSI Z21.88 ANSI Z21.88 Warranty 20 Year Limited Warranty 20 Year Limited Warranty 20 Year Limited Warranty 20 Year Limited Warranty
 FRAMING SPECS
- Downloads
- Videos
The DRT2000 Series offers excellent value without compromising on quality or design. These fireplaces offer an array of standard features, increased performance and state of the art technology to ensure many years of beauty and warmth.
Features
-
Available in 35”, 40” and 45” radiant smooth faced models
-
Mid-size 17” depth saves installed floor space
-
Dedicated top or rear flue configuration (45" model is a combo top/rear)
-
Millivolt or Electronic ignition models available
-
Electronic ignition models include seamless battery backup and provides continued operation in the event of a power outage (IPI/CPI switch standard)
-
Outstanding heating efficiency for increased comfort and lower operating costs
-
Standard tempered glass and a protective screen*
-
Detailed ceramic fiber log set
-
Black painted interior (optional liners available)
-
Optional blower and touch remote or hand-held remote control available for all models
-
Durable textured powder coat finish
-
20 year limited warranty
| Model | DRT2033 | DRT2035 | DRT2040 | DRT2045 |
|---|---|---|---|---|
| Venting Type | Direct Vent | Direct Vent | Direct Vent | Direct Vent |
| Framing Width | 33-3/4" | 35-3/8" | 40-3/8" | 45-3/8" |
| Framing Height | 34-1/4" | 36-1/4" | 41-1/4" | 41-1/4" |
| Framing Depth | 14-1/2" | 18" | 18" | 18" |
| BTU | 10,000 - 12,000 | 12,000 - 14,000 | 15,000 - 16,000 | 19,000 - 20,000 |
| Style | Traditional | Traditional | Traditional | Traditional |
| View Style | Front View | Front View | Front View | Front View |
| Controls | Optional Remote | Optional Remote | Optional Remote | Optional Remote |
| Rating | ANSI Z21.88 | ANSI Z21.88 | ANSI Z21.88 | ANSI Z21.88 |
| Warranty | 20 Year Limited Warranty | 20 Year Limited Warranty | 20 Year Limited Warranty | 20 Year Limited Warranty |

FRAMING SPECS
