Description

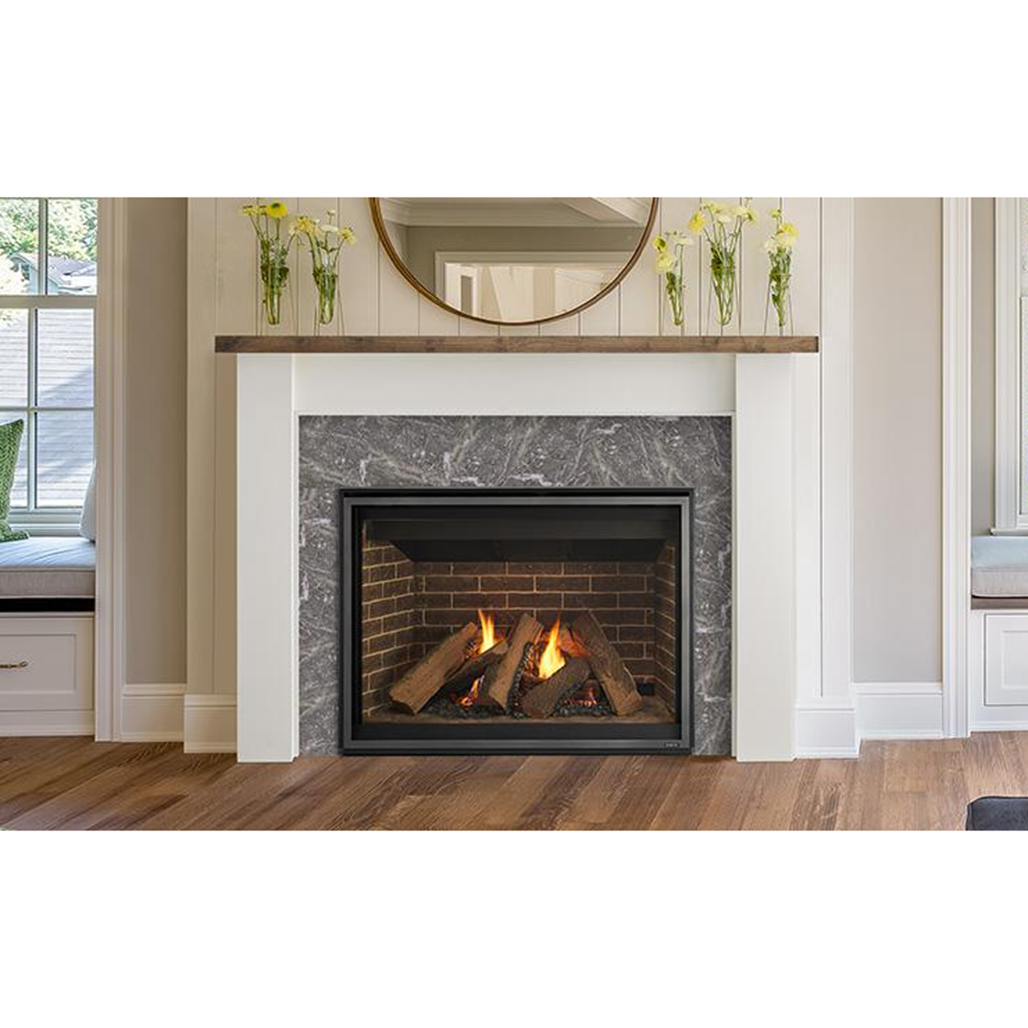

Instant warmth and comfort leave time for the important things in your life. Meridian series gas fireplaces come alive as flames swirl around split logs. A crisp and clean interior makes these fireplaces inviting, whether they’re burning or not. Easily customize your Meridian series and for more ambiance and bigger flames, upgrade to the Meridian Platinum.
Meridian Platinum Features
-
36” or 42” sizes
-
Two fronts, three finish options
-
Choices of interior brick panels or reflective black glass (required)
-
More flames and upgraded log set
-
Taller viewing area
-
Ceramic glass for more radiant heat
-
Up to 40,000 BTUs
-
Optional fan and remote controls
Includes:
-
20,000 - 40,000 BTU/Hour Input (NG)
-
21,000 - 37,000 BTU/Hour Input (LP) 10 Ceramic Fiber Logs
-
Ceramic Glass
-
Glowing Embers
-
Manual Shut Off Valve Gas Flex Connector Junction Box
-
Battery Backup
-
12' Control Wire
-
IntelliFire Touch Ignition System
Key Features:
Heat Zone Technology
Draw heat from your fireplace to another room in your home, up to 20 feet away. When a Heat-Zone kit is run continuously, it can redirect up to 25% of the heat to another area, also reducing wall temperatures above the fireplace. Two Heat-Zones run continuously will redirect up to 50% of the total heat output.
Power Venting Technology
Fireplaces aren’t just for exterior walls. A fan-powered accessory with slim venting can zigzag throughout your home—up, down, over or under – making it possible to install a gas fireplace virtually anywhere. This ensures safe fireplace operation and the best flames. Check with your local hearth professional to determine if your home or fireplace could benefit from power venting technology.
-
-
Specifications
Appliance Width:
48"
Appliance Height:
42-7/8"
Appliance Depth1:
21"
Appliance Rear Width:
35-1/2"
Framing Height:
42-1/8"
Framing Depth2:
22"
Framing Front Width:
49"
Framing Back Width:
49"
Fuel Type:
Natural gas or liquid propane
BTU/hr Input:
40,000 (NG); 37,000 (LP)
Heating Capacity3:
Up to 1,900 sq ft
Viewing Area:
39 x 23-5/8"
-
Appliance Depth includes entire unit including depth of firebox and extension onto hearth.
-
Framing depth will vary if you are installing the lower profile power vent (PVLP-SLP) with a minimum vent configuration. 12-1/2” is needed from the back of the appliance to the outside of the exterior wall. Refer to manual for details.
-
This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.
Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home
Front View
Top View
Left View
Framing Dimension
Right Side View
Basic Clearance
Efficiency
AFUE:
59.1% (NG) / 65.1% (LP)
Canada EnerGuide:
60.0% (NG) / 65.5% (LP)
-
