Description

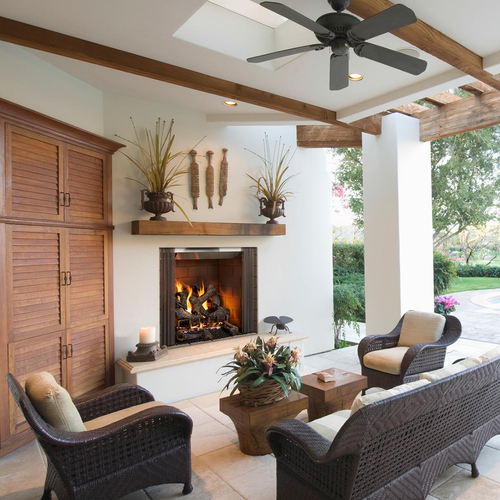

The Castlewood turns any outdoor area into a welcoming and relaxing living space. A large, high opening provides a dramatic view from across the yard, and a textured brick interior offers masonry-style looks at a fraction of the cost.
-
Expansive 38" high firebox opening
-

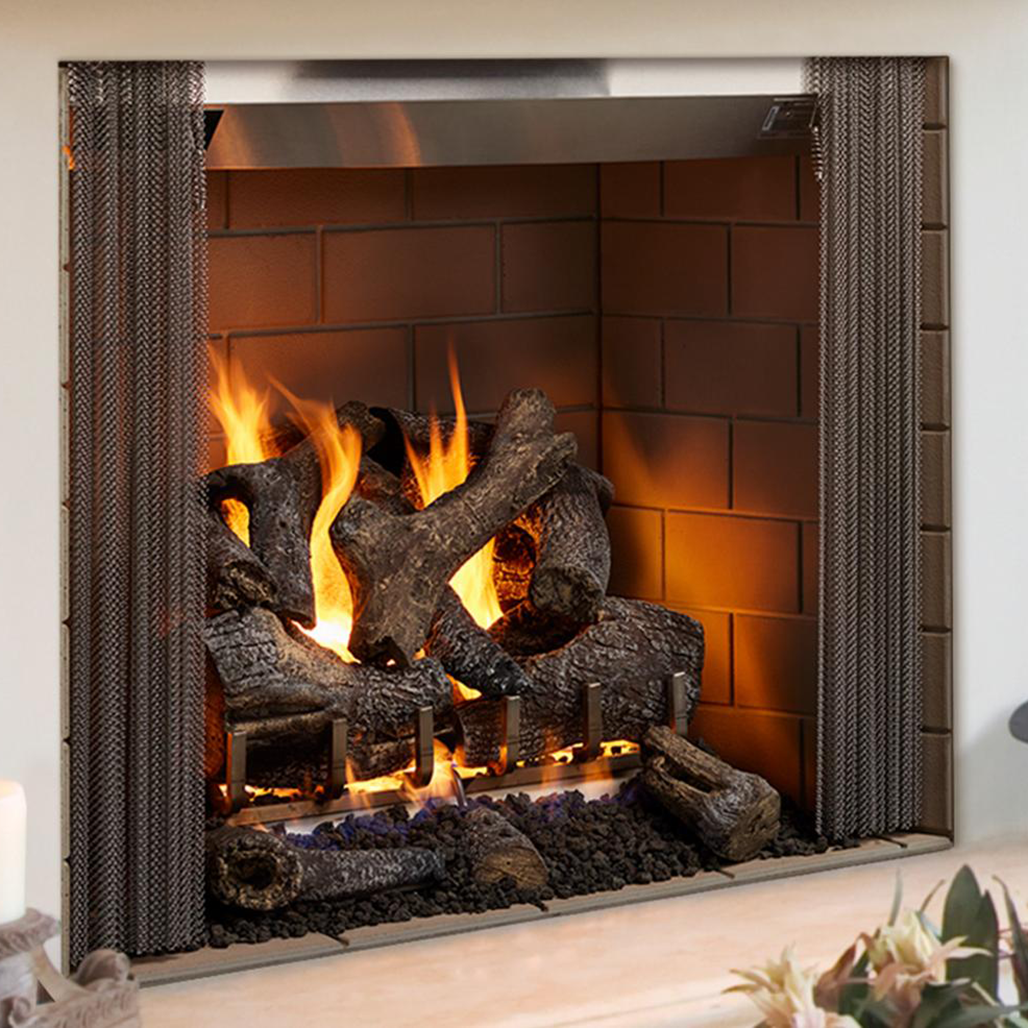

Choose from traditional or herringbone brick interior for an authentic masonry look
-
Stainless steel grate and firescreen built to look great for years
-
42" viewing area
Includes:
-
Expansive 38" high firebox opening
-
Stainless steel safety firescreen
-
Stainless steel grate
-
Transition collar
-
Dual gas knockouts
-
Outside air hoods
-
41-7/8" x 38" viewing area
-
UL & ULC listed
* Required to Complete - Sold Separately:
- Brick interior panels for an authentic masonry look
-
-
Specifications
Appliance Width:
52-7/8"
Appliance Height:
74-1/8"
Appliance Depth1:
27-1/2"
Appliance Rear Width:
37-1/8"
Framing Width:
53-7/8"
Framing Height:
74-1/2
Framing Depth2:
28-3/8"
Framing Front Width:
53-7/8"
Framing Back Width:
53-7/8"
Recommended Log Length:
24"
Viewing Area:
41-7/8 x 38"
-
Appliance Depth includes entire unit including depth of firebox and extension onto hearth.
-
Framing depth will vary if you are installing the lower profile power vent (PVLP-SLP) with a minimum vent configuration. 12-1/2” is needed from the back of the appliance to the outside of the exterior wall. Refer to manual for details.
Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
†For wood-burning appliances: Actual burn times will vary based on how the appliance is operated, load size, moisture content and type of wood used, and installation.
Front View
Left Side View
Right Side View
Top View
Framing Dimension
Basic Clearances
Unit Locations
-
