Majestic Meridian 42" Gas Fireplace Top/Rear Direct Vent Unit W/ Intellifire Touch Ignition

DIGITAL BROCHURE

INSTALL MANUAL

OWNERS MANUAL

UNIT SPECS & FRAMING

Description

Instant warmth and comfort leave time for the important things in your life. Meridian series gas fireplaces come alive as flames swirl around split logs. A crisp and clean interior makes these fireplaces inviting, whether they’re burning or not. Easily customize your Meridian series and for more ambiance and bigger flames, upgrade to the Meridian Platinum.

Meridian Features

Product Features

• 36" or 42" wide viewing area
• Three models with added features and upgrades, including the new Modern unit
• Choice of five interior panels
• Enhanced safety with the IntelliFire Touch®ignition system: control with IntelliFire®app, voice control, touchscreen remote control or wireless wall switch
• Three fronts with two finishing options
• Non-ducted Passive Heat capability which helps manage heat, puts it where you want it, and lowers mantel clearance

Key Features:

Heat Zone Technology

Draw heat from your fireplace to another room in your home, up to 20 feet away. When a Heat-Zone kit is run continuously, it can redirect up to 25% of the heat to another area, also reducing wall temperatures above the fireplace. Two Heat-Zones run continuously will redirect up to 50% of the total heat output.

Power Venting Technology

Fireplaces aren’t just for exterior walls. A fan-powered accessory with slim venting can zigzag throughout your home—up, down, over or under – making it possible to install a gas fireplace virtually anywhere. This ensures safe fireplace operation and the best flames. Check with your local hearth professional to determine if your home or fireplace could benefit from power venting technology.

Options and Accessories

Fronts

• Decorative Mesh Front

•  Contemporary Front

Refractory Brick Panels

• Tavern Brown Interior Panels

• Tavern Brown Herringbone Interior Panels

• Cottage Red Interior Panels

UNIT SPECIFICATIONS

1 Appliance Depth includes entire unit including depth of firebox and extension onto hearth.

2 Framing depth will vary if you are installing the lower profile power vent (PVLP-SLP) with a minimum vent configuration. 12-1/2” is needed from the back of the appliance to the outside of the exterior wall. Refer to manual for details.

3 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.

Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.

*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home

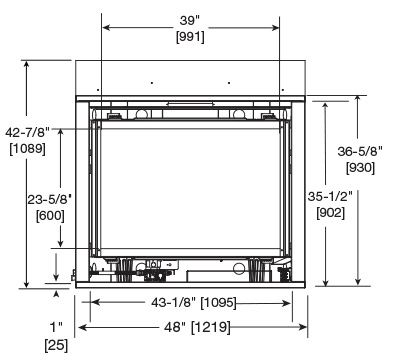

Front View

Top View

Left View

Framing Dimension

Right Side View

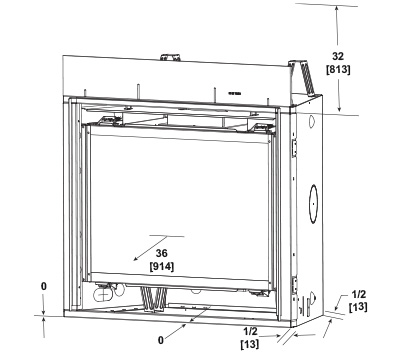

Basic Clearance

Efficiency
