Description

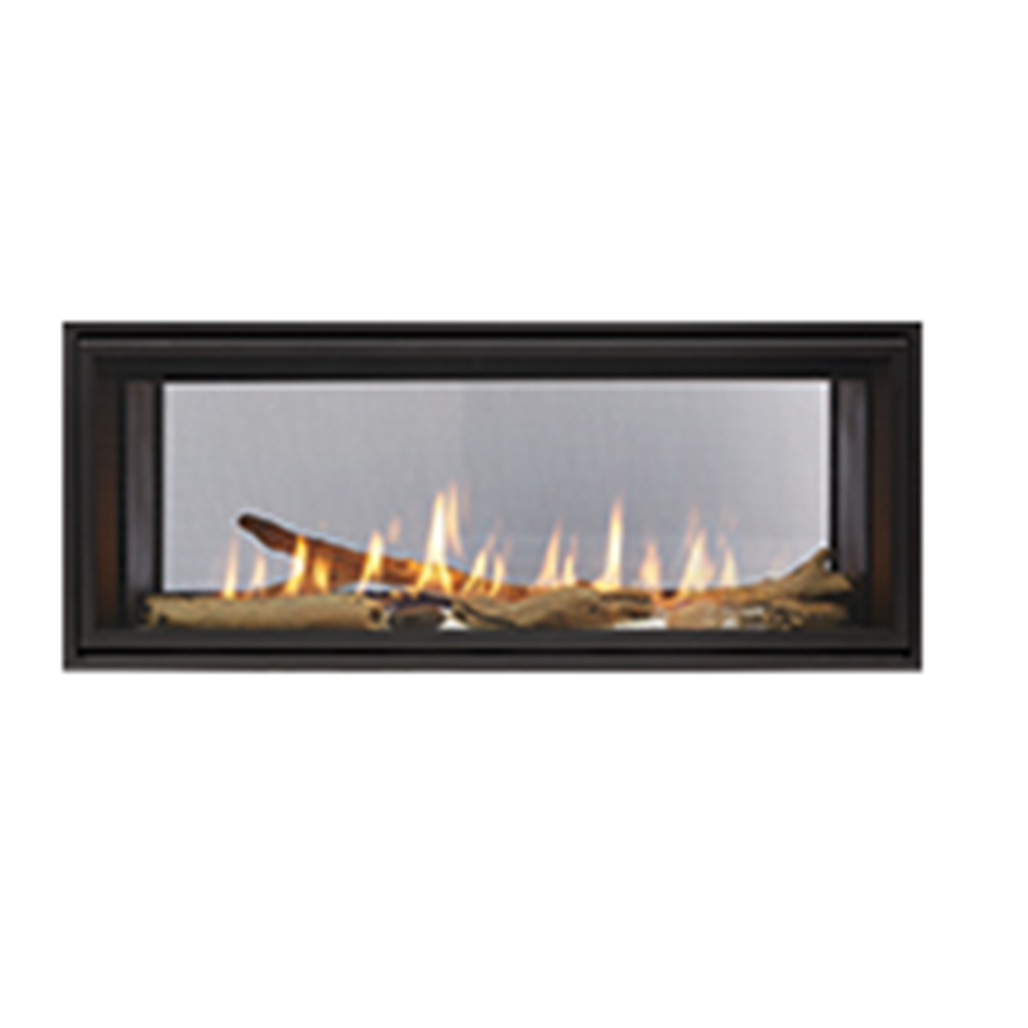

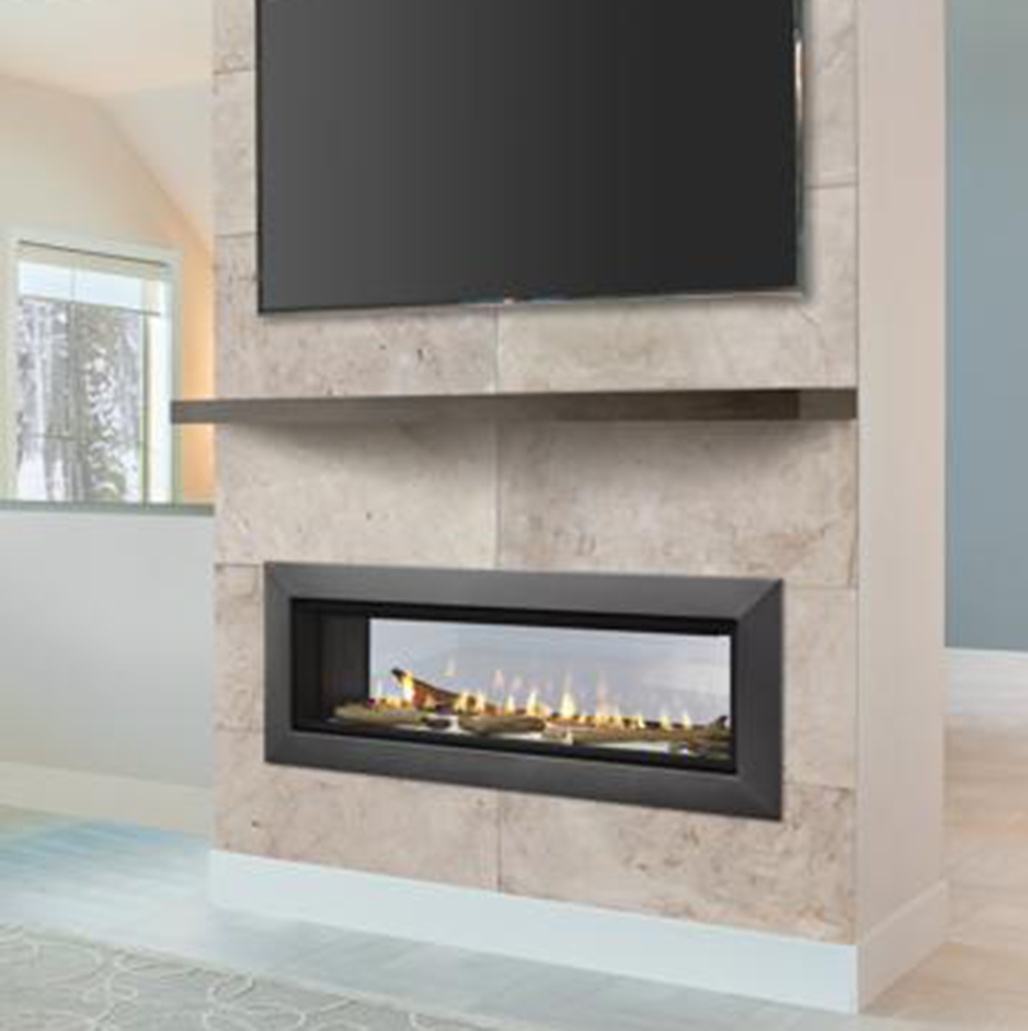

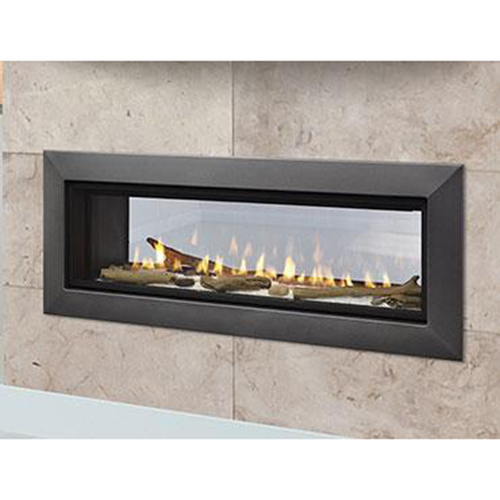

Making memories starts with something special. The exclusive Echelon II series gas fireplace creates a place to relax and enjoy life. Active flames and interior options give this contemporary fireplace a unique look. Get lost in its fire and the brilliance of glass illuminated by lights. Come home to the single-sided or see-through Echelon II series gas fireplace, and enjoy the entertainment and romance you deserve.
-
Showcase the interior with glass illuminated by LED lights
-
Customize the interior with Reflective Black Glass panels, driftwood logs, natural stone and glass firebed options
-
Optional heat distribution systems direct warmth to more areas of the home
-
Available in 36” or 48” models
Includes:
-
17,500 - 30,000 Btu/Hour Input (NG)
-
15,000 - 27,000 Btu/Hour Input (LP)
-
Clear LED Lights
-
IntelliFire Plus ignition system
-
Battery backup
-
RC300 remote control
-
Ceramic glass
-
Standard bronze glass media
If changing media, follow required number of bags below:
-
Crushed Glass Media: 3 bags of glass
-
Natural stones: 2 bags of stone
-
Log set & stones: 1 bag of stone
* Required to Complete - Sold Separately
- 2 Fronts
Key Features:
Heat Zone Technology
Draw heat from your fireplace to another room in your home, up to 20 feet away. When a Heat-Zone kit is run continuously, it can redirect up to 25% of the heat to another area, also reducing wall temperatures above the fireplace. Two Heat-Zones run continuously will redirect up to 50% of the total heat output.
Power Venting Technology
Fireplaces aren’t just for exterior walls. A fan-powered accessory with slim venting can zigzag throughout your home—up, down, over or under – making it possible to install a gas fireplace virtually anywhere. This ensures safe fireplace operation and the best flames. Check with your local hearth professional to determine if your home or fireplace could benefit from power venting technology.
Direct Vent Technology
With Direct Vent fireplaces and inserts, 100% of combustion exhaust and fumes are removed from your home. These sealed fireplaces provide optimal heat and conserve energy.
-
-
Specifications
Appliance Width:
46-3/16"
Appliance Height:
41-3/4"
Appliance Depth1:
17-1/8"
Appliance Rear Width:
46-3/16"
Framing Height:
42"
Framing Depth2:
17"
Framing Front Width:
48-1/4"
Framing Back Width:
48-1/4"
Fuel Type:
Natural gas or liquid propane by conversion
BTU/hr Input:
30,000 (NG); 27,000 (LP)
Heating Capacity3:
Up to 900 sq ft
Viewing Area:
35-1/2 x 12-1/2"
-
Appliance Depth includes entire unit including depth of firebox and extension onto hearth.
-
Framing depth will vary if you are installing the lower profile power vent (PVLP-SLP) with a minimum vent configuration. 12-1/2” is needed from the back of the appliance to the outside of the exterior wall. Refer to manual for details.
-
This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.
Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
Front View
Top View
Left View
Framing Dimension
Right Side View
Basic Clearance
Efficiency
AFUE:
55.0% (NG) / 60% (LP)
Canada EnerGuide:
56.5% (NG) / 59.9% (LP)
-
