FP1LM MANOIR - WOOD FIREPLACE

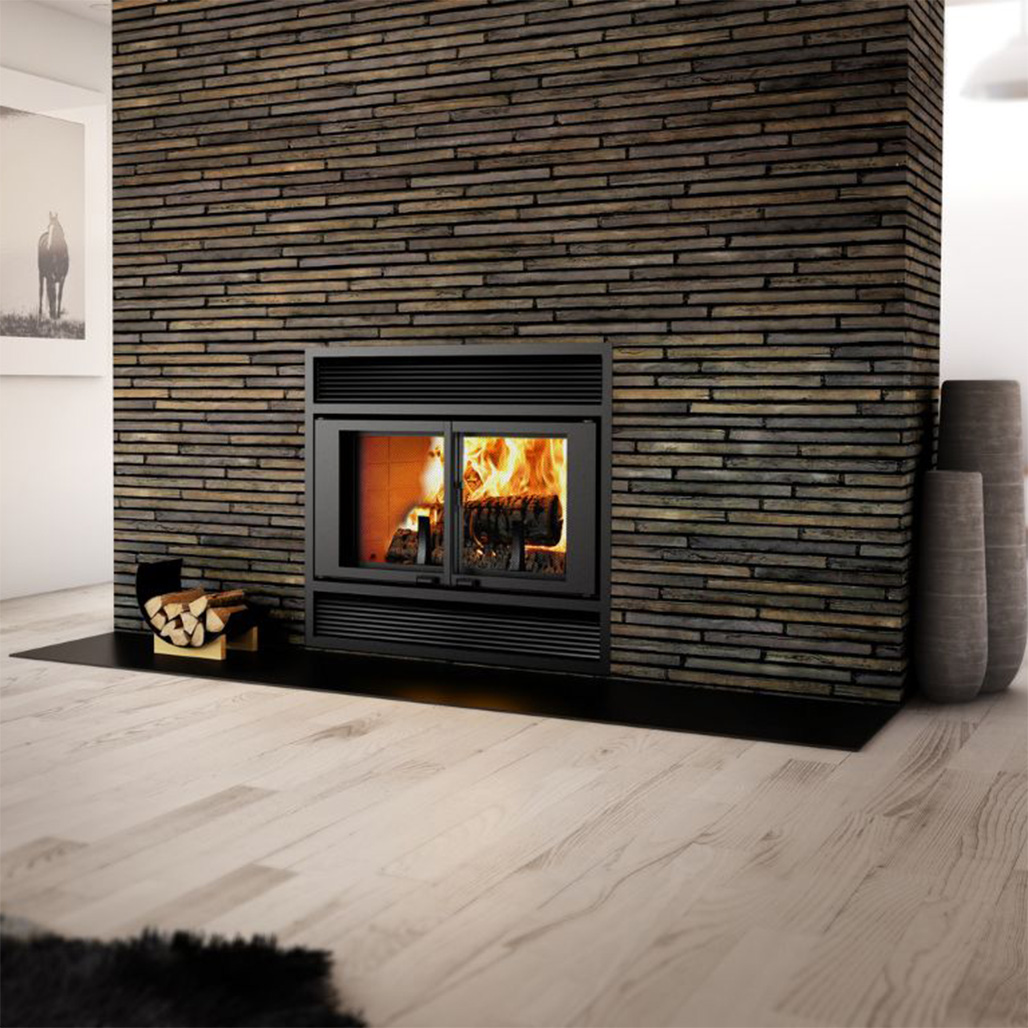

The Manoir is the updated version of Valcourt’s very first fireplace. The seel framed double doors and ceramic glass are second to none; they slide effortlessly and without special tools into each side of the fireplace, allowing for an exceptional view of the crackling flames.
This fireplace will allow you to be creative when designing your decor thanks to its facade options available in different finishes. In addition, you will benefit from the maximum heat of the Manor thanks to its included fan and the heat distribution options (forced air or gravity).
Want to explore more?
Check out our premium collection, or take a look at our entire Wood Burning Fireplaces selection to find what suits your style.
Have questions about the Valcourt Manoir Wood Burning Fireplace? Contact us at sales@embersliving.com or call 303-800-5659. We're always happy to assist!
Features
Fuel type
Dry cordwood
Recommended heating area-ft²
<1,500
Overall firebox volume-ft³
4.25
Average particulate emissions rate
2.9 g/kg
Burn rate
>5 kg/h (>11 lb/h)
High-efficiency certified appliance
Low Mass
Maximum log length
20"
Log positioning
Over width
Chimney diameter
8"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet)
15'
Approved for a mobile home installation
No
Shipping Weight
520 lb (236 kg)
Door type
Double, glass with steel frame
Glass type
Ceramic glass
Glass surface – dimensions (Width X Height)
29" X 17 1/4"
Premium quality blower included (CFM)
176
Overall dimension (Height)
43 5/8"
Overall dimension (Width)
41 1/8"
Overall dimension (Depth)
27 3/8"
Door opening – dimension (Height)
17 7/8"
Door opening - dimension (Width)
30"
Firebox – dimension (Height)
18 5/8"
Firebox – dimension (Width)
23 3/8"
Firebox – dimension (Depth)
11 3/8"
Moulded refractory bricks
Yes
Cast iron andirons
Yes
USA standard (emissions)
ASTM 2515, ASTM 2558
USA standard (safety)
UL 127
Canadian standard (safety)
ULC-S610
Warranty
Limited lifetime
