Empire Tahoe Clean-Face Direct-Vent Traditional Fireplace Luxury 36" - Multi-Function Thermostat Remote Control for Flame, Light, and Blower

SKU:
DVCX36FP91
$3,539.00
(No reviews yet) Write a Review

BROCHURE

OWNER'S MANUAL

SPECIFICATION

Description

Tahoe Clean-Face Deluxe models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.

The Clean-Face Deluxe Fireplace comes with a discreet air distribution channel that eliminates the look of louvers, yet still allows you to operate the optional blower. It features a large tempered glass window that provides an unobstructed view to the log set. Choose an optional liner to customize your fireplace.

Tahoe Clean-Face Deluxe models require 17-3/4, and use 4 x 6-5/8 venting, making them ideal for applications where wall-cavity space is tight.

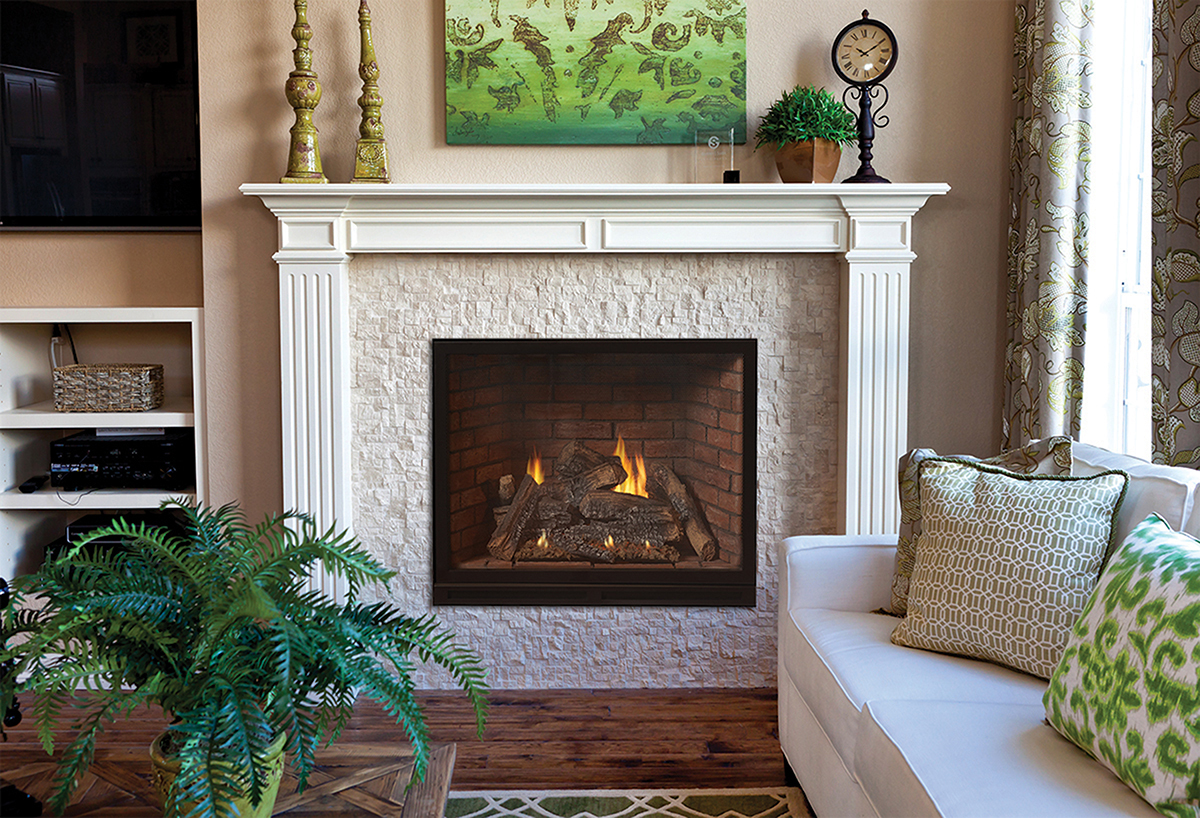

Designed for in-wall installation, your Tahoe Direct-Vent fireplace can be finished with tile or other non-combustible material, which conceals the outer edge of the fireplace to provide a true built-in appearance.

With its large ceramic glass window and clean-face design, this luxury direct-vent fireplace creates the illusion of a site-built fireplace, but offers the convenience and operating efficiency of a modern gas system. The traditional luxury clean-face fireplace is available in 36-inch and 42-inch models.

Tahoe Clean-Face Luxury fireplaces are heater rated, so they will mesmerize your friends and family as well as warm your room. Zone heating with a gas fireplace saves energy while warming the rooms you use most. The available blower helps circulate warm air more quickly.

Designed for in-wall installation, our Clean-Face Luxury models require just over 22 inches of depth. The venting connects to the top of the fireplace, but can run out the wall or up through the roof. Tile or other noncombustible material may be used to conceal the outer edge of the fireplace to create a true built-in system.

A fireplace barrier screen is included to help protect you and your family from inadvertently touching the hot glass.

These direct-vent fireplaces draw in fresh outside air to support combustion and exhaust combustion by-products to the outdoors. The 5 x 8 vent-within-a-vent isolates the incoming fresh air from the exhaust, yet still requires just a single hole through the wall or roof.

Ceramic Glass: 24 1/8 x 33
Venting: 5 x 8, Top Vent Only (Refer to manual for venting requirements)
Framing: 42 5/16 H x 42 3/8 W x 21 1/2 D (see manual before framing)
Pallet Quantity: 4
Available Liners − See brochure for liner style colors

Includes

  • Fireplace Barrier Screen
  • Burner with expanded Ember Bed
  • 9-piece Log Set
  • Rustic Brick Fireplace Brick Floor

Options and Accssories

Liners




Fronts




Andirons, Lighting Kit, and Blower




UNIT SPECIFICATION
