Description

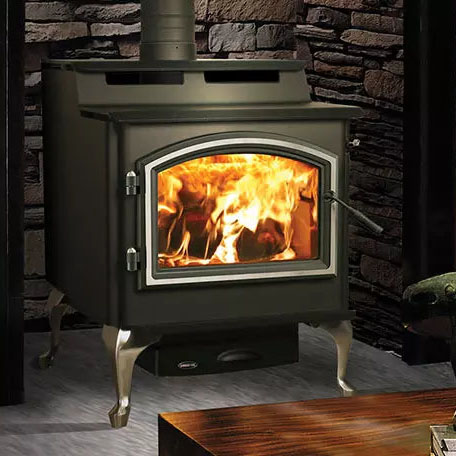

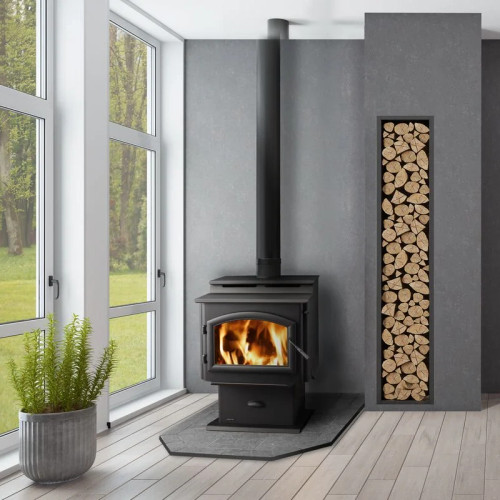

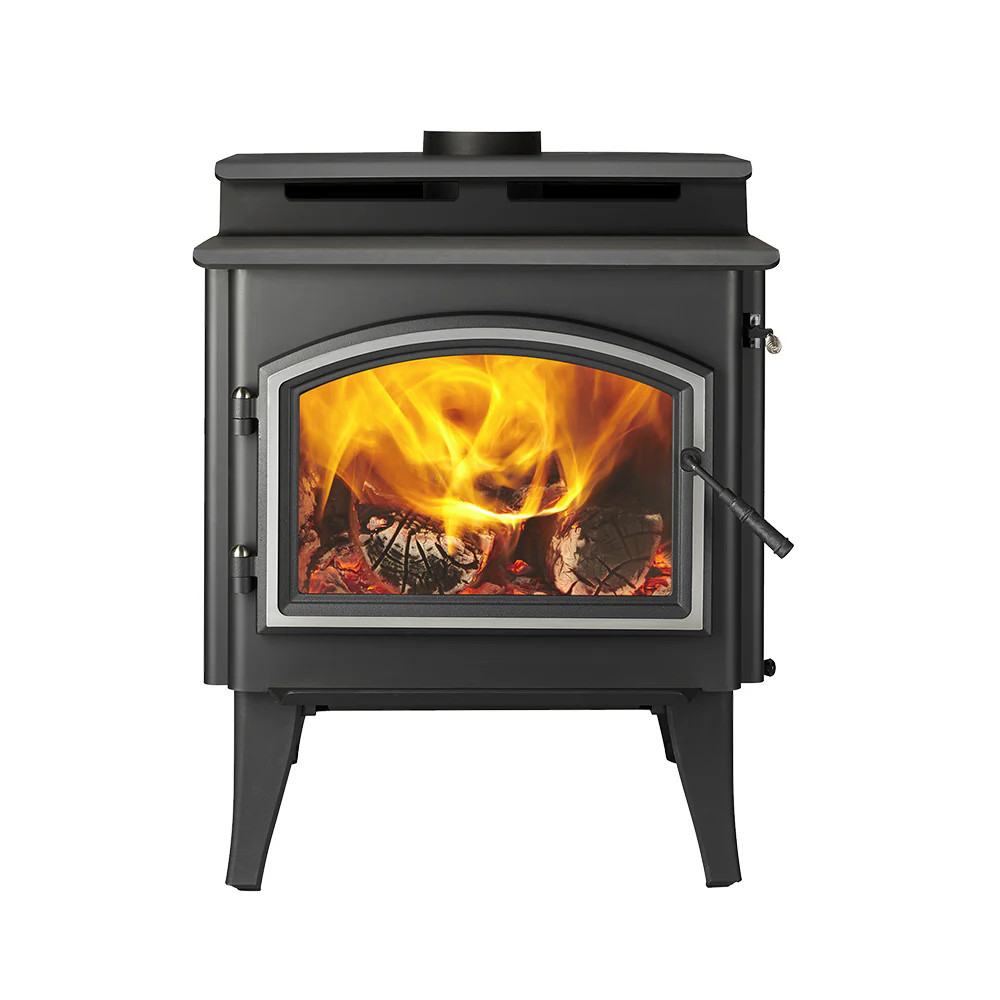

The 5700 Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control and easily blends with the Quadra Fire Wood Stove Four-Point Burn System. Embrace the 5700’s powerful, money-saving, efficient wood stove performance.
Key Features
-
Heat 1,400-3,700 sq ft with 72,100 BTUs*, based on climate and home efficiency
-
Low emission levels of 1.8 grams per hour, certified by the EPA
-
3.0 cu ft firebox capacity / recommended 22" log length
-
Up to 15 hours of burn time from each load of fuel†
-
Easy start-up
-
Also available in these sizes: 4300 Step Top
-
-

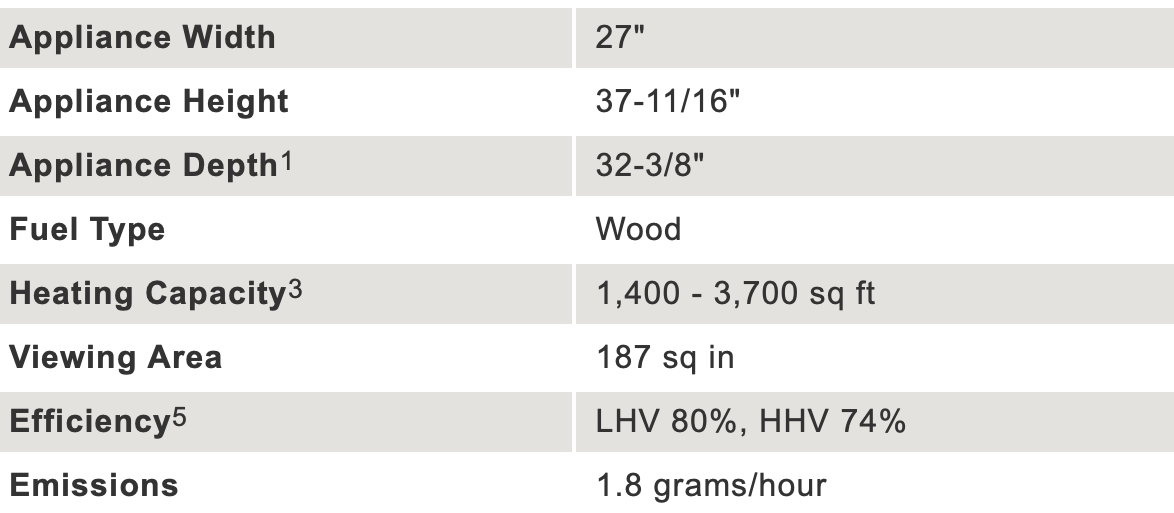

Specifications
Appliance Width: 27"Appliance Height: 37-11/16"
Appliance Depth: 32-3/8"
Fuel Type: WoodPeak
BTUs: 72,100
Heating Capacity: 1,400 - 3,700 sq ft
Viewing Area: 187 sq in
Efficiency: LHV 80%, HHV 74%
Emissions: 1.8 grams/hour
- Downloads
- Videos
The 5700 Step Top is a wood-burning powerhouse. It’s big on heating performance, and even bigger on efficiency. Automatic Combustion Control (ACC) burn technology offers precision heating control and easily blends with the Quadra Fire Wood Stove Four-Point Burn System. Embrace the 5700’s powerful, money-saving, efficient wood stove performance.
Key Features
-
Heat 1,400-3,700 sq ft with 72,100 BTUs*, based on climate and home efficiency
-
Low emission levels of 1.8 grams per hour, certified by the EPA
-
3.0 cu ft firebox capacity / recommended 22" log length
-
Up to 15 hours of burn time from each load of fuel†
-
Easy start-up
-
Also available in these sizes: 4300 Step Top
Appliance Width: 27"
Appliance Height: 37-11/16"
Appliance Depth: 32-3/8"
Fuel Type: WoodPeak
BTUs: 72,100
Heating Capacity: 1,400 - 3,700 sq ft
Viewing Area: 187 sq in
Efficiency: LHV 80%, HHV 74%
Emissions: 1.8 grams/hour
