Superior 54" Linear Gas Direct Vent Fireplace - DRL6554

Availability:
IN-STOCK - FREE SHIPPING
$5,331.60
$5,924.00
(You save $592.40 )
(No reviews yet) Write a Review



DIGITAL BROCHURE

INSTALL MANUAL

UNIT SPECS & FRAMING

ACCESSORIES

Linear in design and stunningly multifaceted in effect, the DRL6500 offers a sophisticated, energy-efficient and easy-to-install heating option for any installation that wants a modern feel. Its expansive viewing area showcases a continuous band of dramatic, wavering flames that’s enhanced by a porcelain interior and reflective black crushed glass media. A choice of finishes adds to the beauty of the fireplace and its long, tall elegant flames.

Aesthetics

  • 51 and 39-inch-wide viewing area creates a breathtaking linear design to complement any home.
  • Innovative Infini-Flame™ technology produces a continuous band of tranquil flames across the viewing area.
  • Interior finish consists of reflective porcelain firebox floors and reflective porcelain panel kits.
  • Choose from four different glass media options to complement your décor. (Reflective Black Media comes standard)

Comfort

  • Unique burner design with industry-leading energy efficiency delivers outstanding flame height and more visible flame per BTU.
  • Heat-circulating design increases warm air distribution for exceptional supplemental heat.
  • Optional fan kit helps circulate warm air into a large room for maximum comfort.

Ease of Operation

  • Full function remote control (T’stat, flame, blower, IPI/CPI)

Design Versatility

  • Adjustable nailing flanges and lightweight design allow for flush wall mounting and quick, easy installation.
  • Unique floor designs feature reflective panels or glass media options.
  • Optional surround and bezel accessories allow for customization to your home.

Check out the Burn video with Glass Media

SURROUND OPTIONS

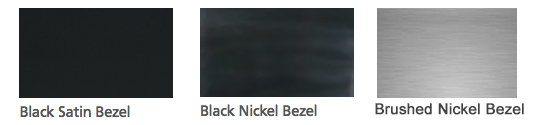

BEZELS


GLASS MEDIA - Comes standard with Reflective Black Glass


REMOTES


UNIT SPECIFICATIONS

Model DRL6542 DRL6554
Venting Type Direct Vent Direct Vent
Framing Width 54" 66"
Framing Height 42" 46-3/4"
Framing Depth 20-1/2" 20-1/2"
BTU 19,500 - 27,000 26,000 - 37,000
Style Contemporary Contemporary
View Style Front View Front View
Controls Remote Control Remote Control
Rating ANSI Z21.88 ANSI Z21.88
Warranty 20 Year Limited Warranty 20 Year Limited Warranty


FRAMING SPECS







THE WARRANTY Innovative Hearth Products ("IHP") Limited Lifetime Warranty warrants your Superior® brand gas fireplace ("Product") to be free from defects in materials and workmanship at the time of manufacture. The Product body and firebox carry the Limited Lifetime Warranty. Ceramic glass carries the Limited Lifetime Warranty against thermal breakage only. After installation, if covered components manufactured by IHP are found to be defective in materials or workmanship during the Limited Lifetime Warranty period and while the Product remains at the site of the original installation, IHP will, at its option, repair or replace the covered components. If repair or replacement is not commercially practical, IHP will, at its option, refund the purchase price or wholesale price of the IHP product, whichever is applicable. IHP will also pay IHP prevailing labor rates, as determined in its sole discretion, incurred in repairing or replacing such components for up to five years. THERE ARE EXCLUSIONS AND LIMITATIONS to this Limited Lifetime Warranty as described herein. COVERAGE COMMENCEMENT DATE Warranty coverage begins on the date of purchase. In the case of new home construction, warranty coverage begins on the date of first occupancy of the dwelling or six months after the sale of the Product by an independent IHP dealer/distributor, whichever occurs earlier. The warranty shall commence no later than 24 months following the date of product shipment from IHP, regardless of the installation or occupancy date. EXCLUSIONS AND LIMITATIONS This Limited Lifetime Warranty applies only if the Product is installed in the United States or Canada and only if operated and maintained in accordance with the printed instructions accompanying the Product and in compliance with all applicable installation and building codes and good trade practices. This warranty is non-transferable and extends to the original owner only. The Product must be purchased through a listed supplier of IHP and proof of purchase must be provided. The Product body and firebox carry the Limited Lifetime Warranty from the date of installation. Vent components, trim components and paint are excluded from this Limited Lifetime Warranty. The following do not carry the Limited Lifetime Warranty but are warranted as follows: Burner – Repair or replacement for fi ve years from the date of installation Gas components & electrical components – Repair or replacement for one year from the date of installation Gaskets – Repair or replacement for one year from the date of installation Gold & nickel plating - Replacement for two years from date of installation. Excludes tarnishing Labor coverage – Prevailing IHP labor rates apply for the warranty period of the component Light bulbs & batteries – Replacement for 90 days from the date of installation Logs – Replacement for fi ve years from the date of installation against thermal breakage only Optional blowers & remote controls – Repair or replacement for one year from the date of installation Optional glass doors & optional glass accessories – Repair or replacement for 90 days from the date of installation Optional surrounds – Stone/Natural Materials: Replacement for one year against cracking or breakage due to thermal stress. Other Materials: Replacement for one year. Excludes surface and hairline cracks and scratches or slight color changes that do not affect the operation or safety of the unit Tempered Glass -Replacement for one year from the date of installation Parts not otherwise listed carry a 90 day warranty from the date of installation.
